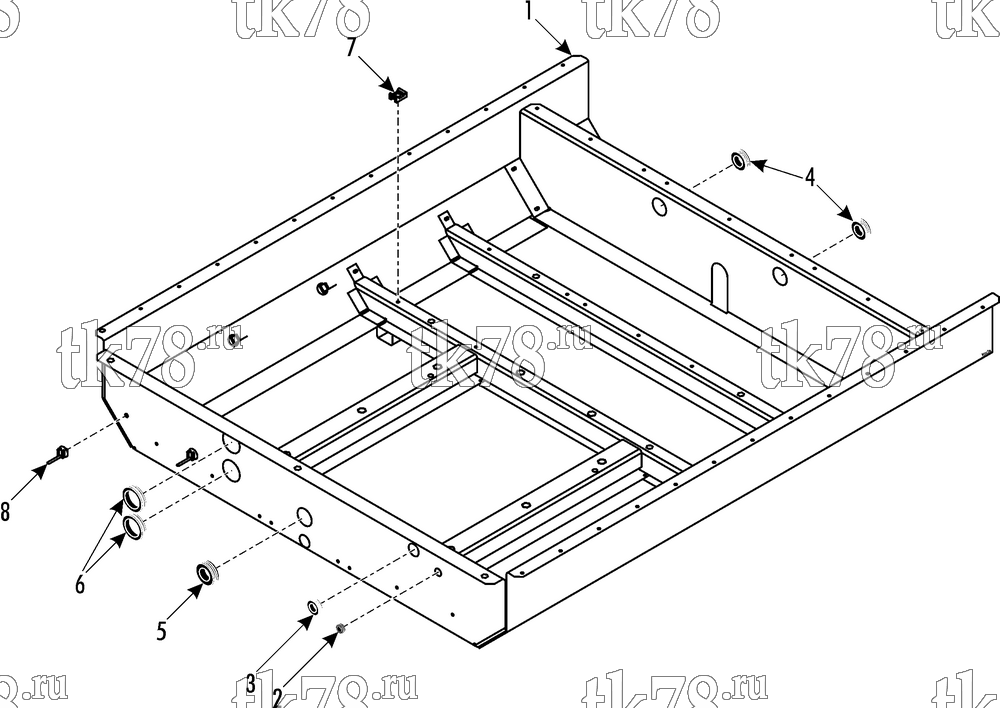

Установкa Thermo King схема FRAME - ADDITIONAL – 229G6
Обновление от: 1/9/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7571 | FRAME - added | 1 | |
| 55-7373 | NUT - captive (M6) | 8 | ||
| 51-118 | NUT - captive (M8) | 5 | ||
| 55-8403 | NUT - captive (M8) | 2 | ||
| 55-5130 | RIVET - frame | 1 | ||
| 2 | 33-1055 | GROMMET (0.375 id) | 1 | |
| 3 | 33-367 | GROMMET (0.625 id) | 1 | |
| 4 | 33-572 | GROMMET (0.750 id) | 2 | |
| 5 | 33-452 | GROMMET (0.875 id) | 1 | |
| 6 | 33-489 | GROMMET (1.25 id) | 2 | |
| 7 | 99-3281 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 56-2330 | BANDWRAP | 1 | ||
| 8 | 51-1631 | STRAP - cable | 5 |
