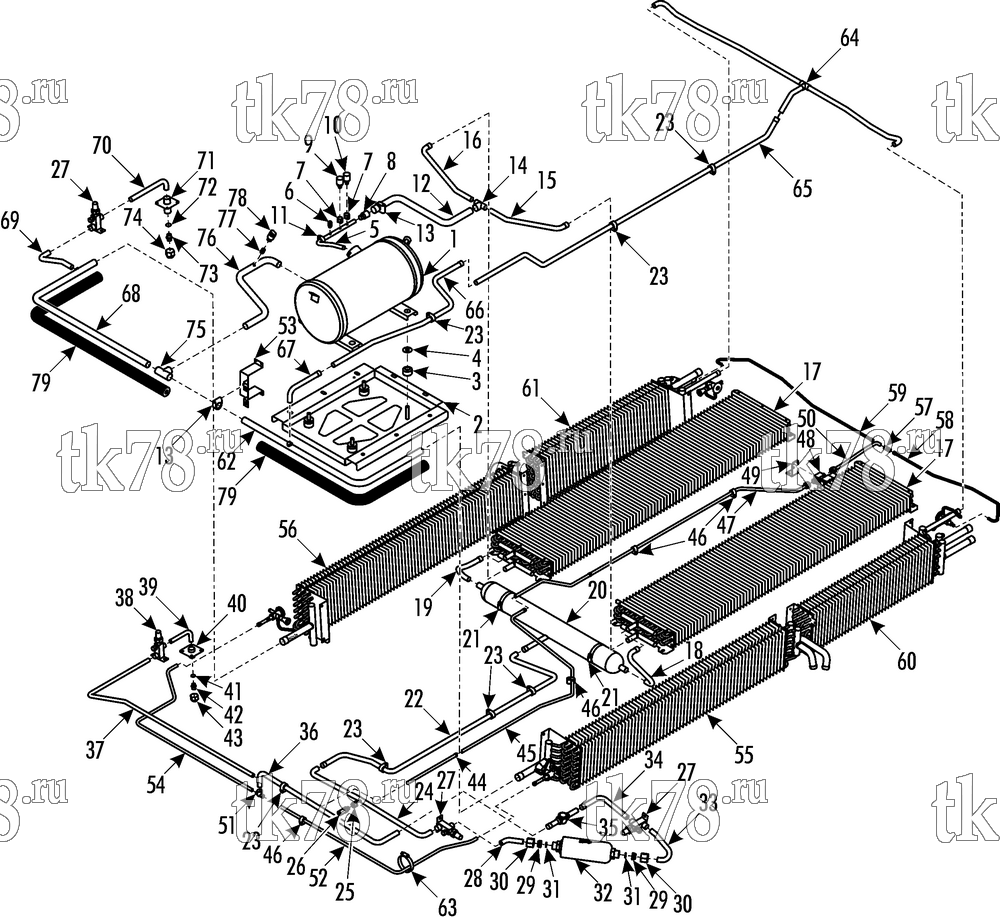

Установкa Thermo King схема TUBE COOLING – 229G0
Обновление от: 7/16/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-1062 | COMPRESSOR | 1 | |
| 2 | 92-5837 | HOLDER - compressor | 1 | |
| 3 | 92-5838 | SPACER | 4 | |
| 4 | 92-5839 | SPACER | 4 | |
| 55-8536 | FLATWASHER | 4 | ||
| 55-8537 | LOCKWASHER | 4 | ||
| 55-7348 | NUT (M10) | 4 | ||
| 55-8559 | SCREW - holder | 8 | ||
| 55-7066 | LOCKWASHER | 8 | ||
| 55-8249 | FLATWASHER | 8 | ||
| 5 | 61-3695 | TUBE - assembly | 1 | |
| 6 | 61-2059 | VALVE | 1 | |
| 7 | 66-3571 | FITTING - saddle | 2 | |
| 8 | 55-4935 | BUSHING | 1 | |
| 9 | 41-1216 | SWITCH - hpco | 1 | |
| 10 | 41-7509 | SWITCH - hpco | 1 | |
| 11 | 55-6389 | CLAMP - tube | 1 | |
| 55-7027 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 51-167 | FLATWASHER | 1 | ||
| 12 | 61-3696 | TUBE | 1 | |
| 13 | 55-7013 | CLAMP - tube | 2 | |
| 55-8993 | SCREW - clamp | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 1 | ||
| 14 | 55-9229 | TEE (5/8 x 5/8 x 7/8) | 1 | |
| 15 | 61-3038 | TUBE | 1 | |
| 16 | 61-3039 | TUBE | 1 | |
| 17 | 67-2021 | COIL - condenser (see 229G5) | 2 | |
| 18 | 61-3040 | TUBE | 1 | |
| 19 | 61-3041 | TUBE | 1 | |
| 20 | 67-2026 | TANK - receiver | 1 | |
| 21 | 55-2688 | CLAMP - tank | 2 | |
| 22 | 61-3697 | TUBE | 1 | |
| 23 | 91-758 | CLAMP - tube | 7 | |
| 55-8316 | SCREW - clamp (40 mm lenght) | 4 | ||
| 55-7739 | SCREW - clamp (60 mm lenght) | 1 | ||
| 55-7170 | LOCKWASHER | 5 | ||
| 55-7075 | FLATWASHER | 5 | ||
| 55-7373 | NUT - captive | 1 | ||
| 24 | 61-2765 | TUBE | 1 | |
| 25 | 99-3060 | FITTING - saddle | 1 | |
| 26 | 66-7392 | VALVE | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 27 | 66-2104 | VALVE - shut-off | 3 | |
| 55-6994 | SCREW - valve | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 55-7373 | NUT - captive | 2 | ||
| 28 | 61-2766 | TUBE | 1 | |
| 29 | 55-6356 | SHOULDER | 2 | |
| 30 | 55-7675 | NUT - shoulder | 2 | |
| 31 | 33-672 | O-RING | 2 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 32 | 66-9352 | FILTER - drier | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 33 | 61-2767 | TUBE | 1 | |
| 34 | 61-2768 | TUBE | 1 | |
| 35 | 66-9856 | INDICATOR - liquid | 1 | |
| 36 | 61-4539 | TUBE | 1 | |
| 37 | 61-3699 | TUBE | 1 | |
| 38 | 66-4694 | VALVE - shut-off | 1 | |
| 55-6994 | SCREW - valve | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 39 | 61-3700 | TUBE | 1 | |
| 40 | 92-5840 | FITTING - assembly | 1 | |
| 55-5130 | RIVET - fitting | 4 | ||
| 41 | 33-2846 | O-RING | 1 | |
| 42 | 61-3897 | ADAPTER | 1 | |
| 43 | 61-2487 | NUT - swivel | 1 | |
| 44 | 61-4540 | TUBE | 1 | |
| 45 | 61-4541 | TUBE | 1 | |
| 46 | 55-6388 | CLAMP - tube | 4 | |
| 55-8464 | SCREW - clamp (35 mm lenght) | 3 | ||
| 55-7739 | SCREW - clamp (60 mm lenght) | 1 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 47 | 61-4542 | TUBE - assembly | 1 | |
| 55-9544 | ADAPTER | 1 | ||
| 92-121 | NUT | 1 | ||
| 48 | 41-6348 | VALVE - solenoid | 1 | |
| 55-7843 | SCREW - valve | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 49 | 92-7346 | BRACKET - solenoid | 1 | |
| 55-5130 | RIVET - bracket | 2 | ||
| 50 | 61-4543 | TUBE - assembly | 1 | |
| 55-9544 | ADAPTER | 1 | ||
| 92-121 | NUT | 1 | ||
| 51 | 55-7142 | TEE (3/8 x 3/8 x 5/8) | 1 | |
| 52 | 61-3701 | TUBE | 1 | |
| 53 | 92-5841 | HOLDER - tube | 1 | |
| 55-5130 | RIVET - holder | 4 | ||
| 54 | 61-3702 | TUBE | 1 | |
| 55 | 67-2407 | COIL - evaporator/heater (see 229H2) | 1 | |
| 56 | 67-2408 | COIL - evaporator/heater (see 229H2) | 1 | |
| 57 | 55-3251 | TEE (3/8 x 3/8 x 3/8) | 1 | |
| 58 | 61-4544 | TUBE | 1 | |
| 59 | 61-4545 | TUBE | 1 | |
| 60 | 67-2409 | COIL - evaporator/heater (see 229H1) | 1 | |
| 61 | 67-2410 | COIL - evaporator/heater (see 229H1) | 1 | |
| 62 | 61-4546 | TUBE | 1 | |
| 63 | 55-4979 | CLAMP - tube | 1 | |
| 64 | 61-4547 | TUBE - assembly | 1 | |
| 55-904 | TEE (5/8 x 5/8 x 5/8) | 1 | ||
| 65 | 61-4548 | TUBE | 1 | |
| 66 | 61-4549 | TUBE | 1 | |
| 67 | 61-4550 | TUBE | 1 | |
| 68 | 61-3704 | TUBE | 1 | |
| 69 | 61-3705 | TUBE | 1 | |
| 70 | 61-3706 | TUBE | 1 | |
| 71 | 92-5842 | FITTING - assembly | 1 | |
| 55-5130 | RIVET - fitting | 4 | ||
| 72 | 33-2848 | O-RING | 1 | |
| 73 | 61-4171 | ADAPTER | 1 | |
| 74 | 51-857 | NUT - swivel | 1 | |
| 75 | 55-6174 | TEE (7/8 x 7/8 x 7/8) | 1 | |
| 76 | 61-3707 | TUBE | 1 | |
| 77 | 61-2059 | VALVE | 1 | |
| 78 | 44-9976 | SWITCH - lpco | 1 | |
| 79 | 91-3542 | TUBE - rubber | A/R |
