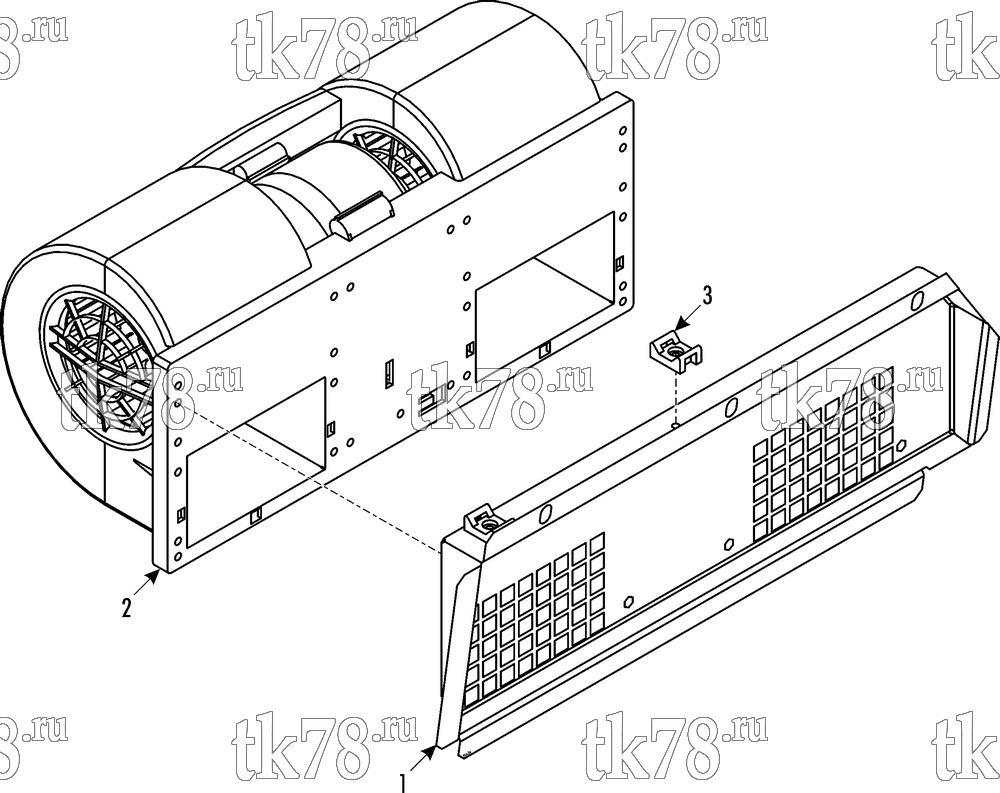

Установкa Thermo King схема BLOWER – 229E3
Обновление от: 12/17/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-7260 | DIFUSOR | 1 | |
| 55-6994 | SCREW - diffuser | 3 | ||
| 55-6996 | LOCKWASHER | 3 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 55-9553 | NUT - captive | 3 | ||
| 2 | 78-1552 | BLOWER | 1 | |
| 55-7664 | SCREW - blower | 8 | ||
| 55-7697 | FLATWASHER | 8 | ||
| 55-9866 | NUT - captive | 8 | ||
| 3 | 99-3281 | MOUNT - bandwrap | 2 | |
| 55-5130 | RIVET - mount | 2 | ||
| 56-2330 | BANDWRAP | 2 |
