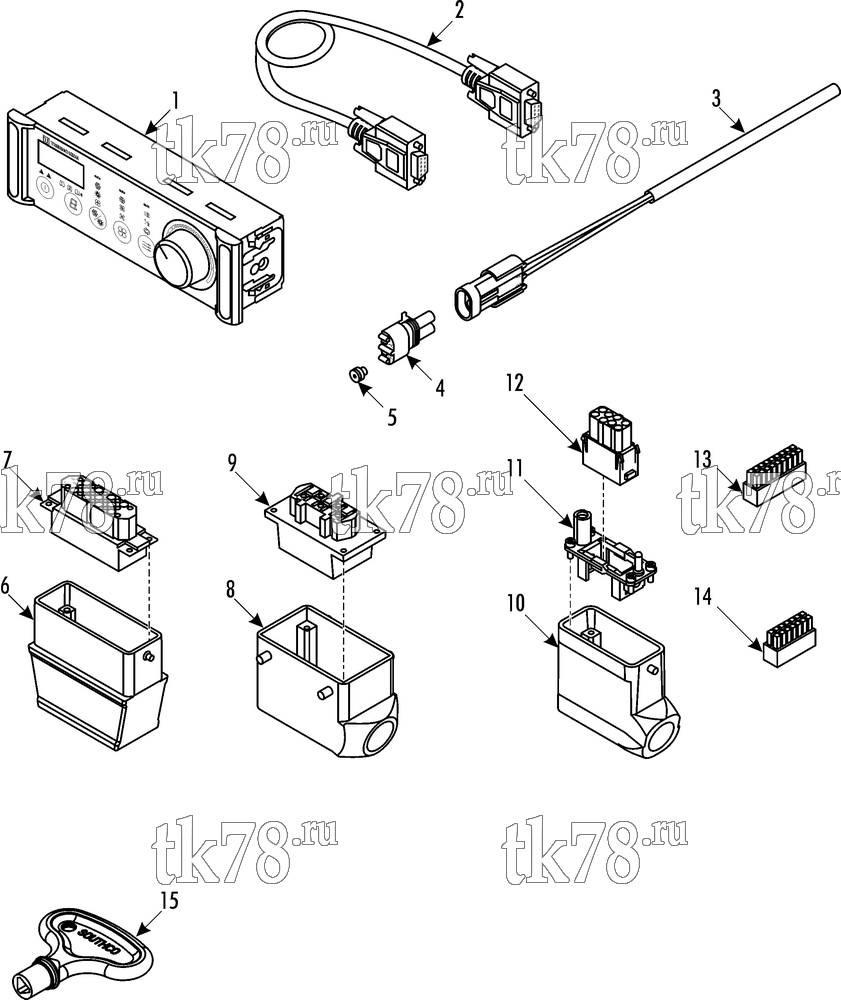

Установкa Thermo King схема INSTALLATION COMPONENTS – 229D9
Обновление от: 8/27/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9097 | ClimaAIRE II | 1 | |
| 2 | 41-5750 | CABLE - RS232 | 1 | |
| 3 | 41-4157 | SENSOR - temperature | 1 | |
| 4 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 44-5884 | TERMINAL - female (18-20 ga) | 2 | ||
| 5 | 44-8681 | SEAL - cable (red, 18-20 ga) | 2 | |
| 6 | 41-8611 | HOUSING - connector (controller) | 1 | |
| 7 | 41-6918 | CORE - connector (25-pin) | 1 | |
| 41-8612 | PIN - female (0.5) | 16 | ||
| 8 | 41-5617 | HOUSING - connector (400VAC) | 1 | |
| 9 | 41-5618 | CORE - connector (3-pin) | 1 | |
| 41-5527 | PIN - female (14 awg) | 5 | ||
| 10 | 41-7727 | HOUSING - connector (24VDC) | 1 | |
| 11 | 41-5928 | FRAME - fixing | 1 | |
| 12 | 41-5523 | COVER - connector, female | 1 | |
| 41-5527 | PIN - female (14 awg) | 2 | ||
| 13 | 41-650 | CONNECTOR (18 term) | 1 | |
| 41-1807 | PIN (18 awg) | 10 | ||
| 14 | 41-661 | CONNECTOR (14 term) | 1 | |
| 41-1807 | PIN (18 awg) | 11 | ||
| 15 | 204-1921 | KEY - triangle (8 mm) | 1 |
