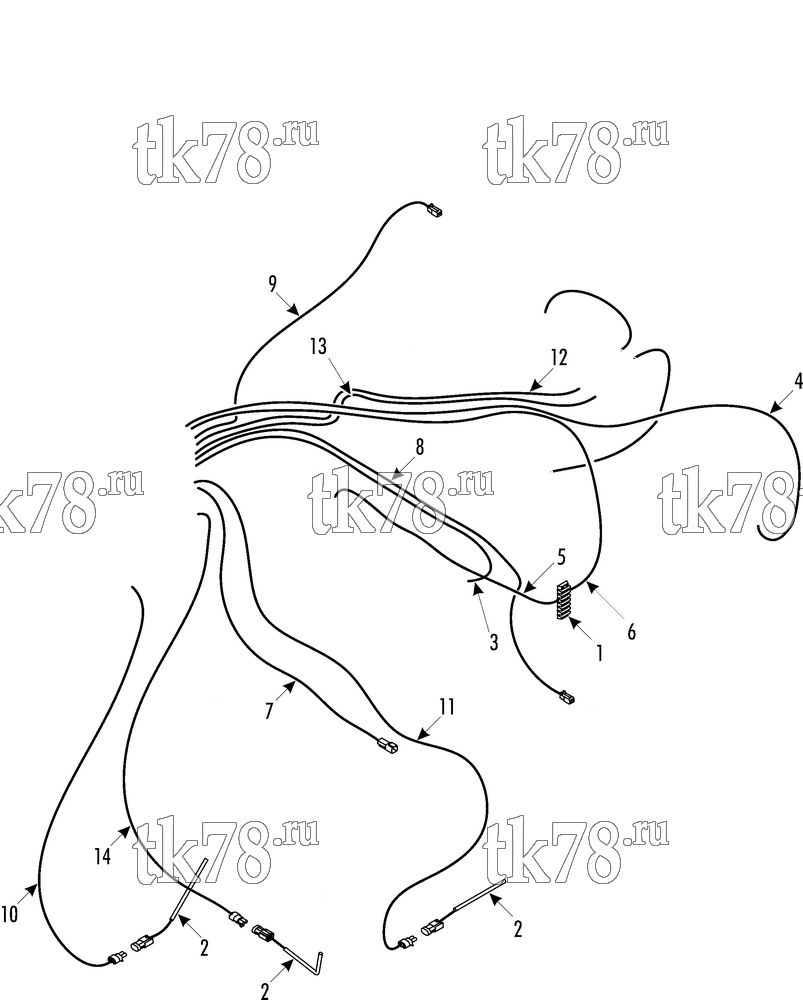

Установкa Thermo King схема ELECTRICAL COMPONENTS – 229D8
Обновление от: 2/16/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-5350 | BOARD - term | 1 | |
| 55-7664 | SCREW - board | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 51-1181 | NUT - captive, closed | 2 | ||
| 2 | 41-4157 | SENSOR - temperature | 3 | |
| 3 | 41-8045 | CABLE - heater power | 1 | |
| 4 | 41-8039 | CABLE - compressor power | 1 | |
| 5 | 41-8040 | WIRES - high temperature | 1 | |
| 6 | 41-8041 | WIRES - temperature sensor | 1 | |
| 7 | 41-8042 | CABLE - solenoid | 1 | |
| 8 | 41-8043 | CABLE - low pressure | 1 | |
| 9 | 41-8044 | CABLE - high pressure | 1 | |
| 10 | 41-8047 | CABLE - temperature sensor (RTS) | 1 | |
| 11 | 41-8048 | CABLE - temperature sensor (CTS) | 1 | |
| 12 | 41-8038 | CABLE - CFM outside | 1 | |
| 13 | 41-8049 | CABLE - EFM outside | 1 | |
| 14 | 41-8404 | CABLE - temperature sensor (ATS) | 1 | |
| 41-8050 | WIRE - grounding (22 inch) | 3 | ||
| 41-8051 | WIRE - grounding (46 inch) | 1 | ||
| 41-8052 | WIRE - grounding (9 inch) | 1 |
