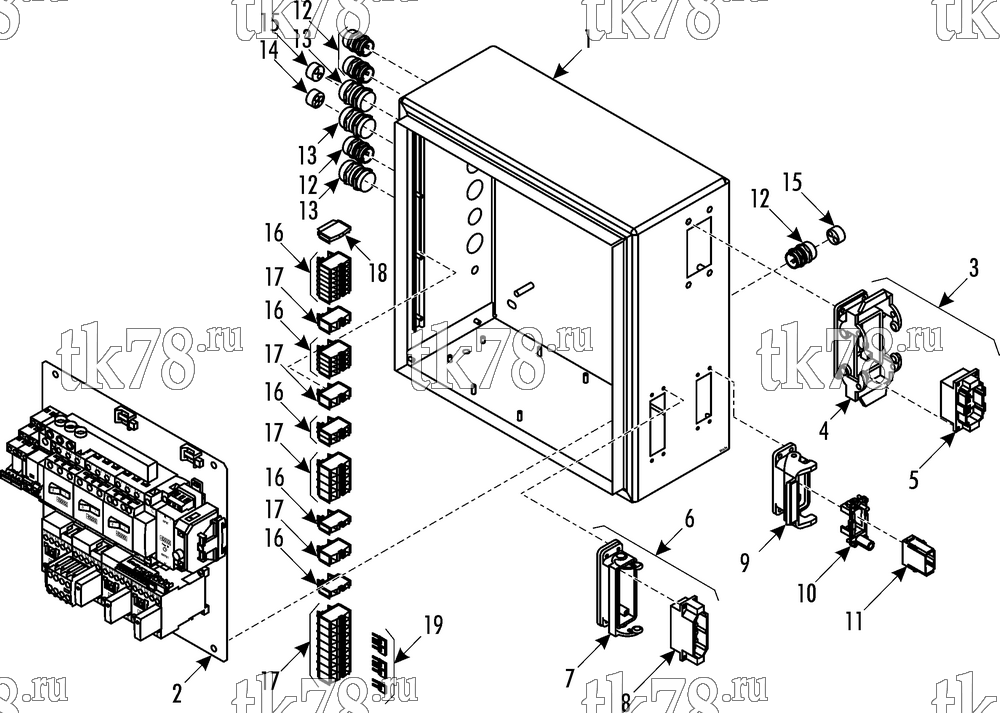

Установкa Thermo King схема CONTROL BOX – 229D5
Обновление от: 2/19/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROL BOX PANNELS (see 229D6) | 1 | |
| 2 | NSS | SUBPANEL AC (see 229D7) | 1 | |
| 3 | 41-8610 | CONNECTOR - power, assembly | 1 | |
| 4 | 41-5579 | HOOD - connector | 1 | |
| 5 | 41-5580 | CORE - connector | 1 | |
| 55-7664 | SCREW - connector | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 6 | 41-8034 | CONNECTOR - line, assembly | 1 | |
| 7 | 41-6914 | HOOD - connector | 1 | |
| 8 | 41-6915 | CORE - connector | 1 | |
| 55-8382 | SCREW - connector | 4 | ||
| 55-7750 | LOCKWASHER | 8 | ||
| 55-7749 | NUT | 4 | ||
| 9 | 41-7721 | HOOD - connector | 1 | |
| 55-8382 | SCREW - connector | 4 | ||
| 55-7750 | LOCKWASHER | 8 | ||
| 55-7749 | NUT | 4 | ||
| 10 | 41-5928 | FRAME - fixing | 1 | |
| 11 | 41-5300 | COVER - connector, male | 1 | |
| 12 | 51-848 | BUSHING - cable | 4 | |
| 55-9558 | LOCKNUT - bushing | 4 | ||
| 13 | 51-1400 | BUSHING - cable | 3 | |
| 55-9711 | LOCKNUT - bushing | 3 | ||
| 14 | 41-6671 | SEALING - bushing | 1 | |
| 15 | 41-6682 | SEALING - bushing | 2 | |
| 16 | 41-3892 | TERMINAL | 15 | |
| 17 | 41-3893 | TERMINAL - double | 15 | |
| 18 | 41-3894 | PLATE - end | 1 | |
| 19 | 41-3896 | JUMPER | 5 |
