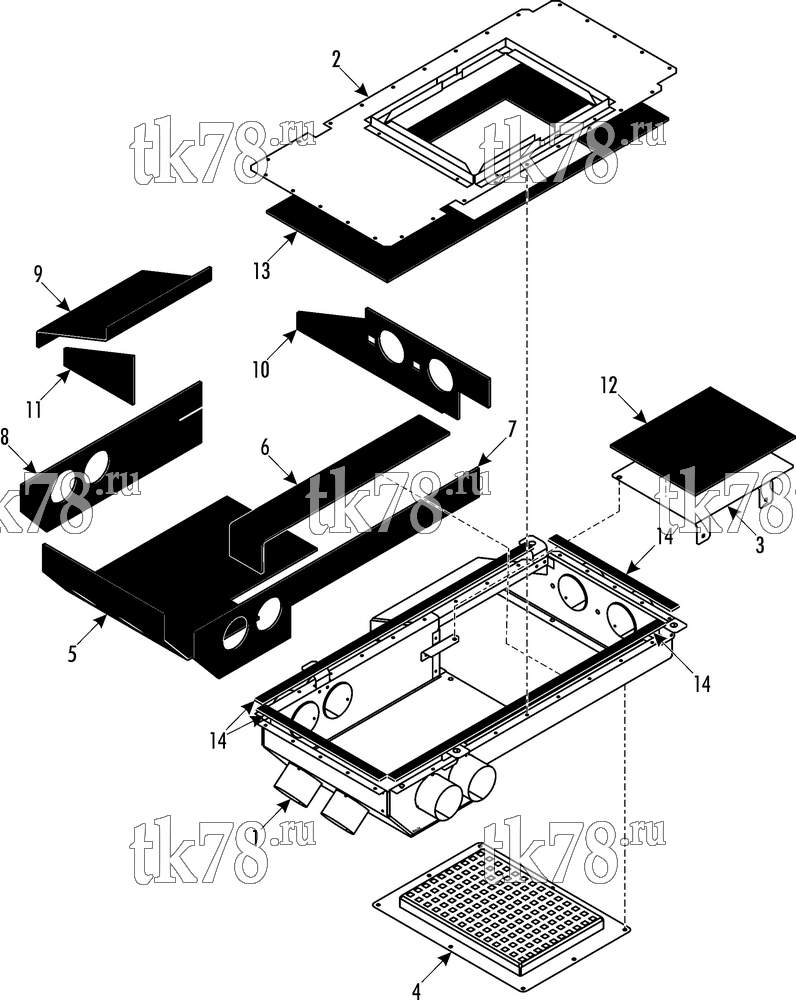

Установкa Thermo King схема DISTRIBUTION BOX – 229D3
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8097 | BOX - distribution | 1 | |
| 2 | 98-8098 | COVER | 1 | |
| 55-5130 | RIVET - cover | A/R | ||
| 3 | 92-7238 | WALL - acoustic | 1 | |
| 4 | 92-7239 | GRILLE | 1 | |
| 55-7366 | SCREW - wall & grill | 13 | ||
| 55-7171 | LOCKWASHER | 13 | ||
| 55-7089 | FLATWASHER | 13 | ||
| 51-190 | NUT - captive | 13 | ||
| 5 | 92-7240 | INSULATION | 1 | |
| 6 | 92-7241 | INSULATION | 1 | |
| 7 | 92-7242 | INSULATION | 1 | |
| 8 | 92-7243 | INSULATION | 1 | |
| 9 | 92-7244 | INSULATION | 1 | |
| 10 | 92-7245 | INSULATION | 1 | |
| 11 | 92-7246 | INSULATION | 1 | |
| 12 | 92-7247 | INSULATION | 1 | |
| 13 | 92-7248 | INSULATION | 1 | |
| 14 | 33-3540 | STRIP - neoprene | A/R |
