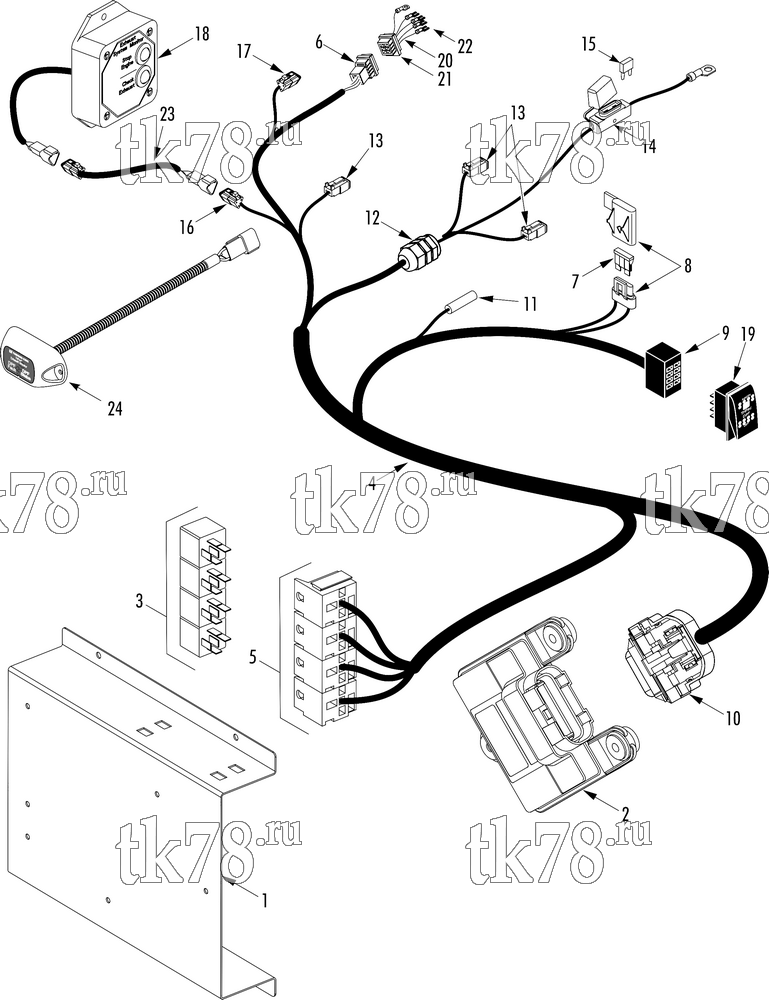

Установкa Thermo King схема DPF CONTROLLER & HARNESS (Before 2/12) – 228E7
Обновление от: 2/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-7067 | COVER - controller | 1 | |
| 2 | 41-8119 | MODULE - controller | 1 | |
| 55-2001 | FLATWASHER | 5 | ||
| 55-2964 | LOCKWASHER | 5 | ||
| 55-2965 | NUT | 5 | ||
| 3 | 41-895 | RELAY - mini | 4 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 4 | 41-8263 | HARNESS - TriPac DPF | 1 | |
| 5 | 44-5537 | SOCKET - relay (air solenoid, engine start interrupt, standby interrupt & fault) | 4 | |
| 44-5066 | FINGRIP - socket (18 -14 ga) | 8 | ||
| 41-5713 | FINGRIP - socket (16 -12 ga) | 7 | ||
| 6 | 41-8264 | RECEPTACLE - DPF (6-pin) | 1 | |
| 41-8265 | COVER - receptacle | 1 | ||
| 41-8266 | TERMINAL | 5 | ||
| 7 | 41-1932 | FUSE (1 amp) | 1 | |
| 8 | 41-1770 | HOLDER - fuse | 1 | |
| 30-41-1770 | Гнездо предохранителя 32V 30А | 760 ₽ |
|
|
| 41-1769 | COVER - fuse | 1 | ||
| 30-41-1769 | Крышка предохранителя | 510 ₽ |
|
|
| 9 | 41-1508 | SOCKET - switch | 1 | |
| 10 | 41-9508 | HOUSING - 24-pin | 1 | |
| 41-9507 | TERMINAL - female | 20 | ||
| 41-9509 | LOCK - connector | 1 | ||
| 41-9510 | SEAL - green | 1 | ||
| 41-9511 | RETAINER | 1 | ||
| 41-9512 | GRIP - strain relief | 1 | ||
| 11 | 40-975 | SENSOR - ambient air | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 12 | 41-4817 | CONNECTOR - harness grip | 1 | |
| 13 | 44-9585 | PLUG - air solenoid, blower, CAN interface (2-pin) | 3 | |
| 14 | 41-3074 | HOLDER - fuse | 1 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 15 | 41-4553 | FUSE - 10 amp | 1 | |
| 16 | 44-9631 | CONNECTOR - cab display (3-pin, w/ seal) | 1 | |
| 17 | 44-9544 | RECEPTACLE - air pressure transducer (3-pin) | 1 | |
| 18 | 41-8117 | DISPLAY - DPF | 1 | |
| 19 | 41-8272 | SWITCH - DPF | 1 | |
| 20 | 41-9812 | HARNESS - DPF pigtail | 1 | |
| 21 | 41-9813 | HOUSING - DPF (6-pin) | 1 | |
| 41-9814 | TERMINAL | 5 | ||
| 22 | 41-9022 | TERMINAL - fork (blue #8, 16-14 ga) | 2 | |
| 41-9249 | TERMINAL - fork (blue #10, 16-14 ga) | 2 | ||
| 651-246 | TERMINAL - ring (blue #8, 16-14 ga) | 1 | ||
| 23 | 41-8273 | HARNESS - DPF display adapter | 1 | |
| 44-9544 | RECEPTACLE (3-pin) | 1 | ||
| 41-9815 | CONNECTOR - DPS (3-pin) | 1 | ||
| 41-9816 | LOCK - secondary | 1 | ||
| 41-9817 | TERMINAL - male | 3 | ||
| 41-6576 | SEAL - terminal | 3 | ||
| 24 | 41-9949 | DISPLAY - DPF | 1 |
