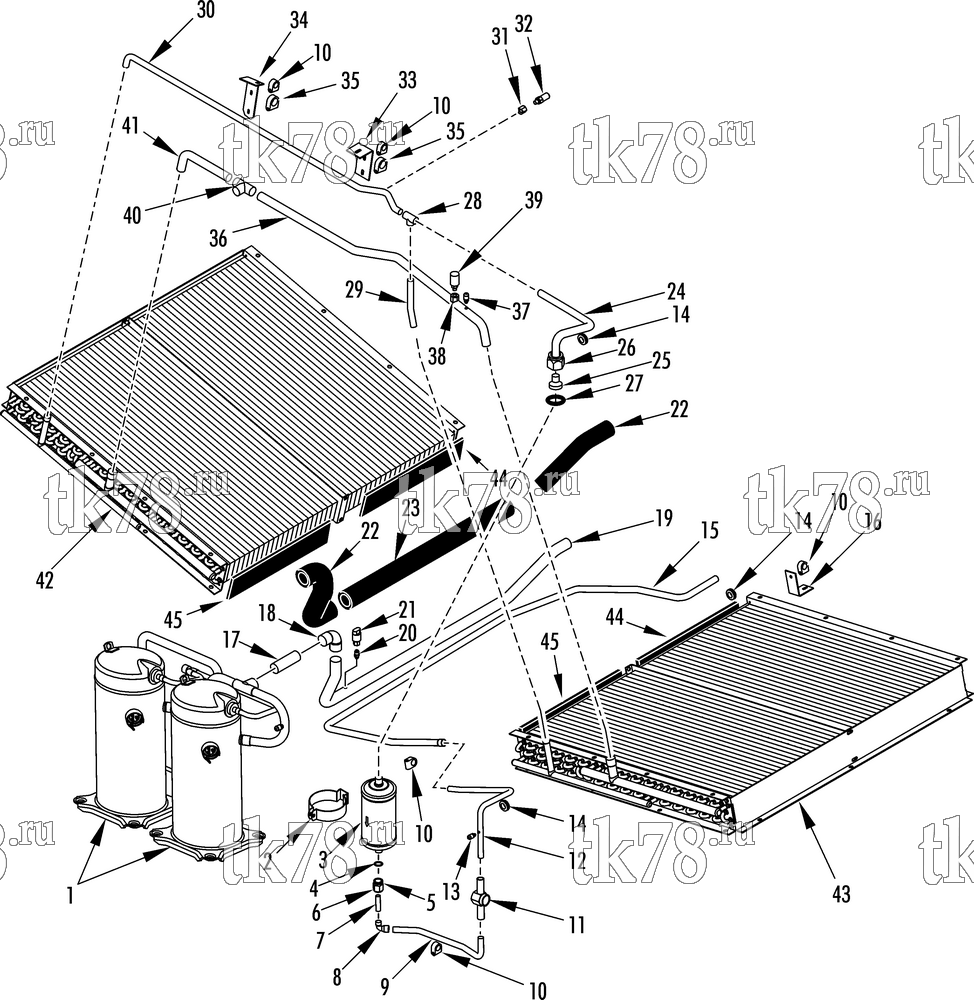

Установкa Thermo King схема CONDENSER REFRIGERATION (REH M5) – 228B6
Обновление от: 6/19/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR - group (see 226H5) | 1 | |
| 2 | 55-2192 | HANGER - dehydrator | 1 | |
| 3 | 61-600 | DEHYDRATOR - filter/drier | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 4 | 33-566 | O-RING | 1 | |
| 5 | 55-6838 | NUT - shoulder | 1 | |
| 6 | 55-6837 | SHOULDER | 1 | |
| 7 | 66-7666 | TUBE | 1 | |
| 8 | 66-5733 | ELBOW | 1 | |
| 9 | 61-4321 | TUBE - dehydrator to indicator | 1 | |
| 10 | 91-758 | CLAMP - tube | 5 | |
| 55-3675 | SCREW - clamp | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 55-1800 | LOCKWASHER | 7 | ||
| 55-4953 | NUT | 2 | ||
| 11 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 12 | 61-4320 | TUBE - indicator to liquid line | 1 | |
| 13 | 66-9842 | VALVE | 1 | |
| 14 | 33-367 | GROMMET | 3 | |
| 15 | 61-4319 | TUBE - liquid line | 1 | |
| 55-6173 | CLAMP - tube | 1 | ||
| 16 | 91-9727 | BRACKET - tube | 1 | |
| 55-2957 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 17 | 66-7552 | TUBE - straight (3.30 in lg) | 1 | |
| 18 | 55-3682 | ELBOW | 1 | |
| 19 | 61-4347 | TUBE - suction | 1 | |
| 20 | 66-9842 | VALVE | 1 | |
| 21 | 41-4147 | SWITCH - lpco | 1 | |
| 41-5183 | SWITCH - only | 1 | ||
| 22 | 92-4042 | INSULATION (1-1/8 od) | A/R | |
| 23 | 92-4043 | INSULATION (1-3/8 od) | A/R | |
| 55-2331 | BANDWRAP | A/R | ||
| 24 | 61-4320 | TUBE - dehydrator to tee | 1 | |
| 25 | 55-6356 | SHOULDER | 1 | |
| 26 | 55-6396 | NUT - shoulder | 1 | |
| 27 | 33-2115 | O-RING | 1 | |
| 28 | 55-904 | TEE (5/8 x 5/8 x 5/8) | 1 | |
| 29 | 61-4322 | TUBE - liquid tee to condenser | 1 | |
| 30 | 61-4323 | TUBE - tee to coil | 1 | |
| 31 | 99-3060 | FITTING - saddle | 1 | |
| 32 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 33 | 92-6978 | BRACKET - tube support | 1 | |
| 34 | 92-6979 | BRACKET - tube support | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 35 | 55-7013 | CLAMP - tube | 3 | |
| 55-3462 | SCREW - clamp | 3 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 3 | ||
| 36 | 61-4324 | TUBE - condenser inlet | 1 | |
| 37 | 66-9842 | VALVE - pressure | 1 | |
| 38 | 66-4553 | FITTING - saddle | 1 | |
| 39 | 41-8235 | SWITCH - hpco | 1 | |
| 41-6318 | SWITCH - only | 1 | ||
| 40 | 55-6174 | TEE (7/8 x 7/8 x 7/8) | 1 | |
| 41 | 61-4325 | TUBE - discharge | 1 | |
| 42 | 67-1592 | COIL - condenser (roadside) | 1 | |
| 43 | 67-1593 | COIL - condenser (curbside) | 1 | |
| 55-2957 | SCREW - condenser coil | 15 | ||
| 55-1800 | LOCKWASHER | 15 | ||
| 55-4414 | WASHER - special | 15 | ||
| 44 | 91-9695 | INSULATION - roadside | 1 | |
| 45 | 91-9696 | INSULATION - curbside | 1 |
