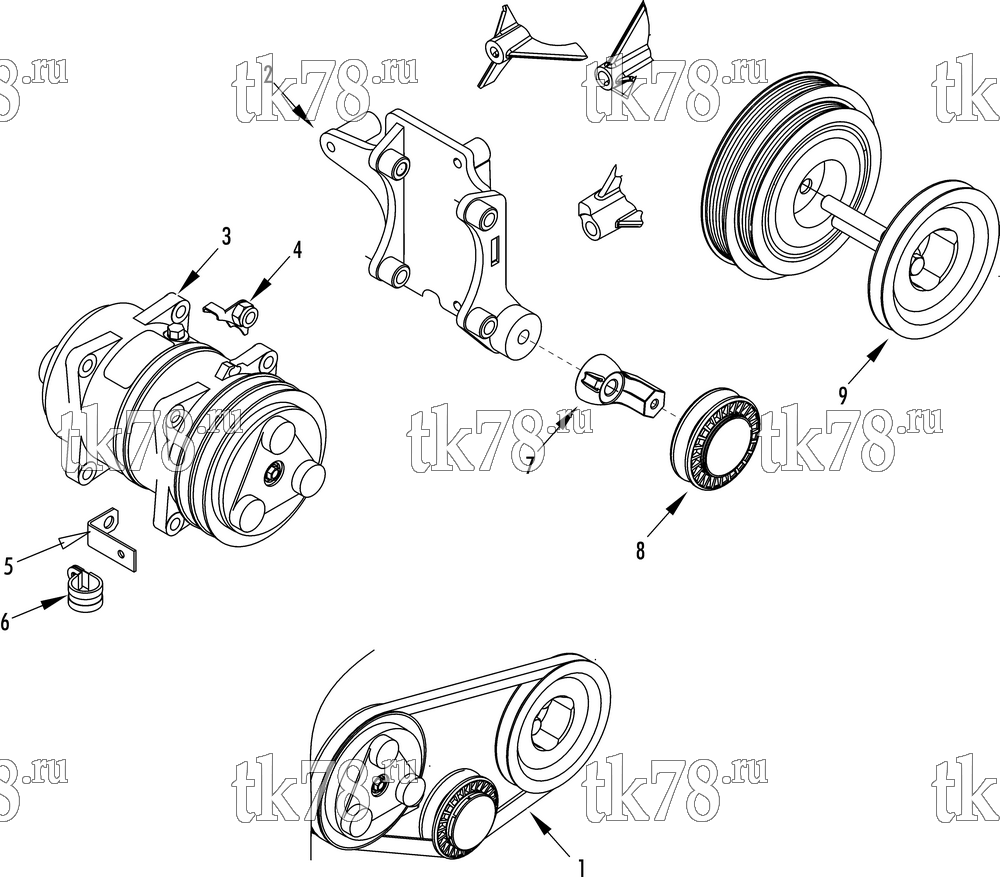

Установкa Thermo King схема DRIVE KIT (Citroen Jumper, Peugeot Boxer 2.2, 740027) – 228A6
Обновление от: 9/17/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2645 | BELT | 1 | |
| 2 | 108-2641 | SUPPORT - compressor | 1 | |
| 3 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 4 | 108-1277 | NUT - special | 1 | |
| 5 | NSS | SUPPORT - clamp | 1 | |
| 6 | 92-1903 | CLAMP - hose | 1 | |
| 7 | 108-2643 | TENSIONER - eccentric | 1 | |
| 8 | 108-385 | PULLEY - idler | 1 | |
| 9 | 108-2642 | PULLEY - crankshaft | 1 |
