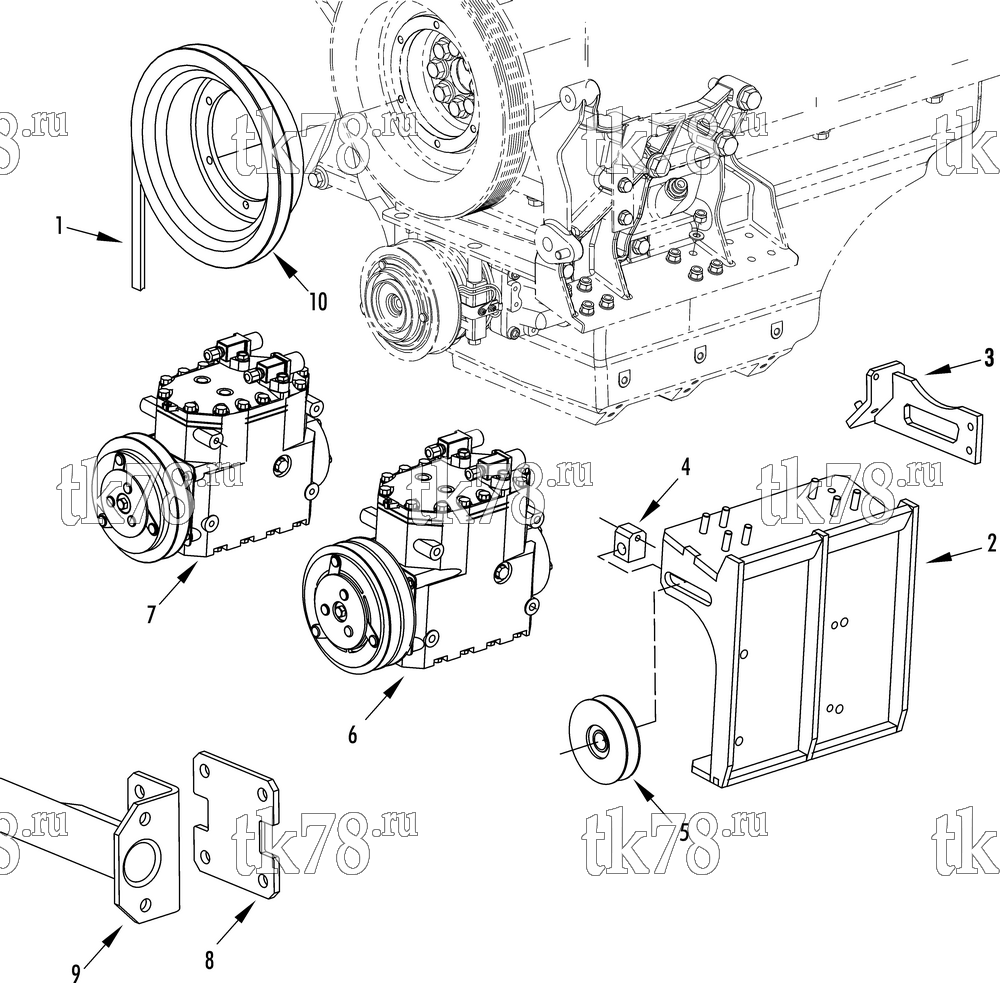

Установкa Thermo King схема DRIVE KIT (Daimler Actros E4, 780007) – 228A5
Обновление от: 6/16/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2631 | BELT | 1 | |
| 2 | 108-2628 | BRACKET - compressor | 1 | |
| 3 | 108-2629 | BRACKET - restraining | 1 | |
| 4 | 108-2630 | BUSHING - tensioner | 1 | |
| 5 | 108-394 | PULLEY - idler | 1 | |
| 6 | NSS | COMPRESSOR TK-315 (see compressor section) | 1 | |
| 7 | NSS | COMPRESSOR TK-312 (see compressor section) | 1 | |
| 8 | 108-2386 | PLATE - tube | 2 | |
| 9 | 108-2291 | TUBE | 1 | |
| 10 | 108-2627 | PULLEY - crankshaft | 1 |
