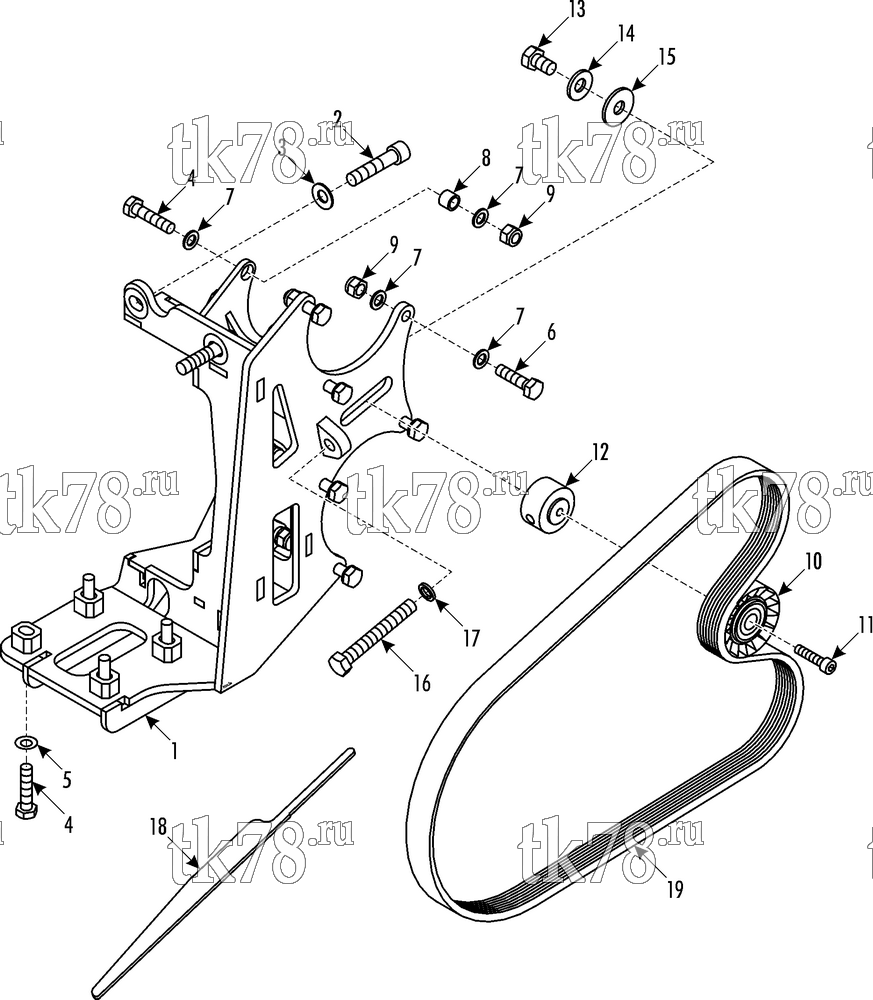

Установкa Thermo King схема DRIVE KIT 719103 - KAROSA ARES, 2xTM16 – 227F2
Обновление от: 2/6/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2563 | BASE - assembly | 1 | |
| 2 | 51-159 | SCREW - base | 2 | |
| 3 | 51-1113 | WASHER | 2 | |
| 4 | 55-6279 | SCREW - base & alternators | 8 | |
| 5 | 108-1614 | WASHER | 4 | |
| 6 | 55-5427 | SCREW - alternators | 6 | |
| 7 | 55-4625 | FLATWASHER | 20 | |
| 8 | 51-780 | BUSHING | 4 | |
| 9 | 51-1086 | NUT | 10 | |
| 10 | 108-2417 | PULLEY | 1 | |
| 11 | 55-7759 | SCREW - pulley | 1 | |
| 12 | 108-2564 | PIVOT | 1 | |
| 13 | 108-2055 | SCREW - pivot | 1 | |
| 14 | 51-145 | WASHER - conical | 1 | |
| 15 | 108-1746 | FLATWASHER | 1 | |
| 16 | 55-7001 | SCREW - tension | 1 | |
| 17 | 55-5006 | LOCKWASHER | 1 | |
| 18 | 108-2565 | RULER | 1 | |
| 19 | 108-2566 | BELT | 1 |
