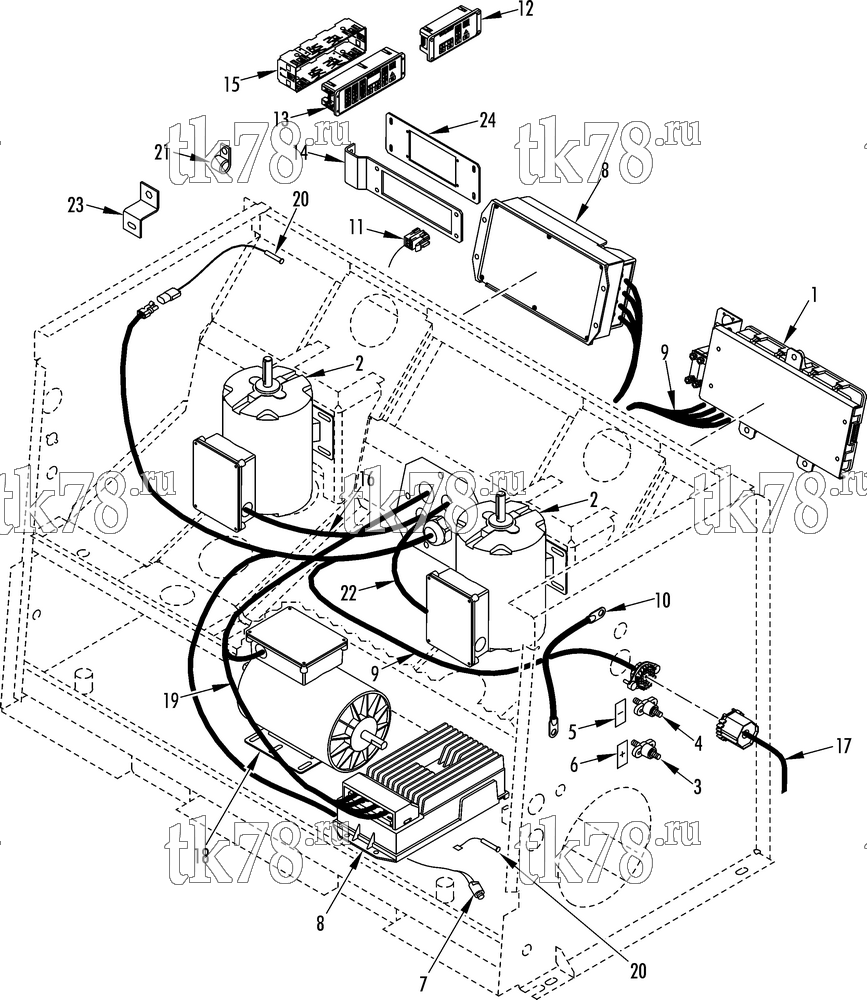

Установкa Thermo King схема ELECTRICAL COMPONENTS – 226F6
Обновление от: 7/10/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | MODULE - IntelligAIRE (see 172A2) | 1 | |
| 2 | 104-740 | MOTOR - condenser fan | 2 | |
| 3 | 55-9550 | STUD - terminal (block) | 1 | |
| 4 | 55-9551 | STUD - terminal (black) | 1 | |
| 55-9700 | SCREW - stud (#10) | 4 | ||
| 55-2001 | FLATWASHER (#10) | 8 | ||
| 55-4560 | NUT (#10) | 4 | ||
| 55-671 | NUT (3/8) | 2 | ||
| 55-448 | FLATWASHER (3/8) | 4 | ||
| 55-3066 | LOCKWASHER (3/8) | 2 | ||
| 5 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 7 | 44-6965 | SWITCH - condenser fan (R134a, for connectors see 115D14) | 1 | |
| 41-307 | SWITCH - only (R134a) | 1 | ||
| 44-6349 | SWITCH - condenser fan (R22 & R407c, for connectors see 115D14) | 1 | ||
| 44-6427 | SWITCH - only (R22 & R407c) | 1 | ||
| 8 | 41-3590 | DRIVE - motor | 2 | |
| 841-3590 | DRIVE - motor (reman) | 1 | ||
| 40-885 | KIT - power stud cleanup | 1 | ||
| 55-2977 | SCREW - controller | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 9 | NSS | HARNESS - main (IntelligAIRE, see harness grid) | 1 | |
| 10 | 41-4631 | HARNESS (2) | 1 | |
| 41-4817 | CONNECTOR - liquid tite | 1 | ||
| 41-5359 | CONNECTOR | 1 | ||
| 55-2635 | LOCKNUT | 1 | ||
| 44-8197 | CONNECTOR - jumper (water pressure switch) | 1 | ||
| 41-5437 | HARNESS - single wire (5 in lg) | 1 | ||
| 55-3834 | SCREW | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 55-4954 | NUT | 1 | ||
| 41-4193 | HARNESS (34) | 1 | ||
| 41-4194 | HARNESS (35) | 1 | ||
| 41-4761 | HARNESS - battery cable (10.5 in lg) | 1 | ||
| 11 | 41-4195 | HARNESS - unit display | 1 | |
| 41-4284 | CONNECTOR (6 terminal) | 1 | ||
| 41-4285 | LOCK - terminal | 1 | ||
| 41-4283 | CONNECTOR (6 terminal) | 1 | ||
| 12 | 41-7199 | MODULE - display (standard) | 1 | |
| 13 | 41-7200 | MODULE - display (deluxe) | 1 | |
| 51-802 | SCREW - display | 4 | ||
| 14 | 92-2312 | BRACKET - display (deluxe) | 1 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 15 | 92-5199 | CHASSIS - module | 1 | |
| 16 | 41-4190 | HARNESS - condenser motor (motor 2) | 1 | |
| 41-4921 | CONNECTOR | 1 | ||
| 41-4189 | WASHER - sealing | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 17 | 41-4909 | HARNESS - interface | 1 | |
| 18 | 104-741 | MOTOR - evaporator blower | 1 | |
| 19 | 41-8344 | HARNESS - evaporator motor (motor 2) | 1 | |
| 20 | 41-7706 | SENSOR - temperature | 3 | |
| 21 | 51-151 | CLAMP (0.562 dia) | 2 | |
| 55-2239 | CLAMP (0.375 dia) | 1 | ||
| 55-9702 | CLAMP (0.625 dia) | 2 | ||
| 55-9311 | CLAMP (1.00 dia) | 6 | ||
| 55-1587 | SCREW - clamp | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 22 | 41-4191 | HARNESS - condenser motor (motor 1) | 1 | |
| 41-4921 | CONNECTOR | 1 | ||
| 41-4189 | SEAL - connector | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 23 | 92-2930 | BRACKET - support | 1 | |
| 55-1587 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-8711 | INSERT | 1 | ||
| 24 | 92-3390 | PLATE - 4-key display | 1 | |
| 55-2991 | SCREW - plate | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-8798 | INSERT | 4 |
