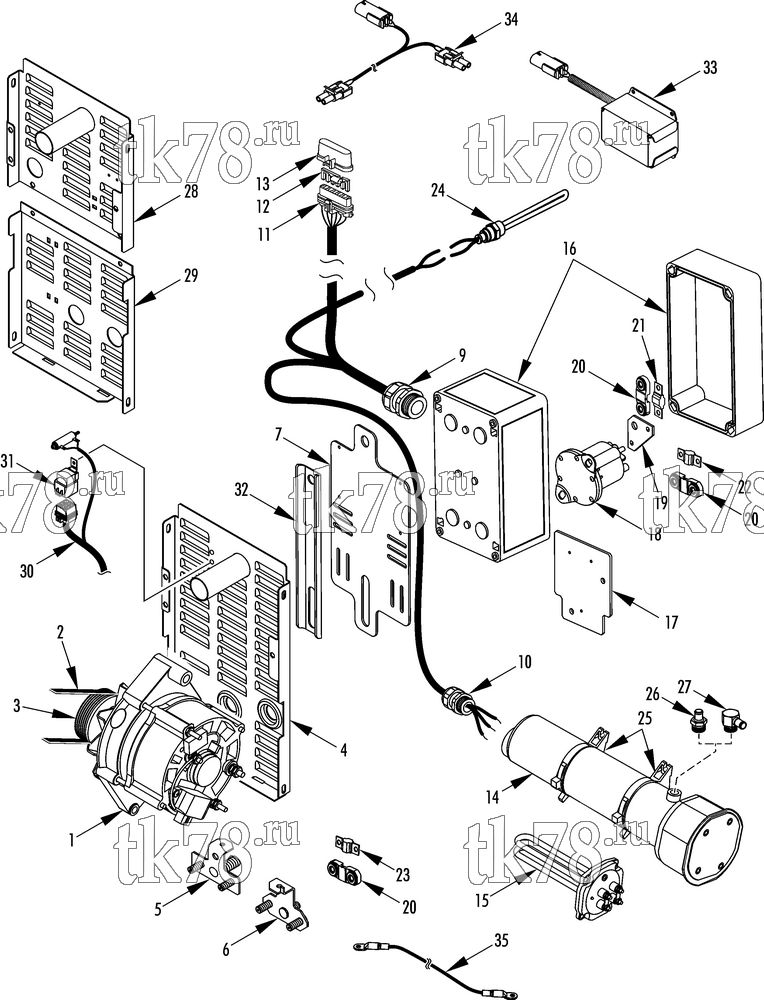

Установкa Thermo King схема EXTREME ARCTIC PAC (Optional) – 226D9
Обновление от: 1/14/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 10-396 | KIT - Extreme Arctic PAC | 1 | ||
| 1 | 41-9210 | ALTERNATOR - 120A (see 230D3) | 1 | |
| 2 | 78-1664 | BELT - alternator (use with 1.9 dia. 6K alt pulley) | 1 | |
| 3 | 77-2925 | PULLEY - alternator (1.90 dia. 6K) | 1 | |
| 4 | 92-8520 | PANEL - rear (one piece) | 1 | |
| 5 | 92-6738 | STRAP - ground | 1 | |
| 6 | 93-663 | STRAP - ground | 1 | |
| 55-289 | NUT | 3 | ||
| 55-3996 | LOCKWASHER (internal tooth) | 3 | ||
| 55-375 | LOCKWASHER | 3 | ||
| 55-402 | FLATWASHER | 3 | ||
| 7 | 92-6733 | PLATE - mounting | 1 | |
| 8 | 41-8077 | HARNESS - Extreme Artic PAC | 1 | |
| 9 | 41-4610 | CONNECTOR - harness grip | 1 | |
| 55-2636 | NUT - connector | 1 | ||
| 41-4189 | WASHER - sealing | 1 | ||
| 10 | 55-6153 | CONNECTOR - heater | 1 | |
| 11 | 41-1789 | CONNECTOR - 6 terminals | 1 | |
| 41-1790 | LOCK | 1 | ||
| 12 | 41-4280 | DIODE | 1 | |
| 13 | 41-1787 | COVER | 1 | |
| 14 | 12-923 | HEATER - coolant (800W) | 1 | |
| 15 | 41-8108 | ELEMENT - heater | 1 | |
| 16 | 92-6735 | BOX - solenoid (Extreme Arctic PAC) | 1 | |
| 17 | 92-6736 | PLATE - solenoid | 1 | |
| 55-4199 | SCREW - plate | 3 | ||
| 18 | 41-7872 | SOLENOID | 1 | |
|
10-41-7872 | Реле вентилятора, UT-800/1200 / UTS | 5 400 ₽ |
|
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-1801 | NUT | 2 | ||
| 19 | 92-6737 | CONNECTION - fuse terminal | 1 | |
| 20 | 41-8076 | FUSEHOLDER | 2 | |
| 21 | 41-8074 | FUSE (70 amp) | 1 | |
| 22 | 41-8075 | FUSE (30 amp) | 1 | |
| 23 | 41-8078 | FUSE (100 amp) | 1 | |
| 41-5671 | HEATSHRINK - fuse | 1 | ||
| 24 | 41-8028 | HEATER - oil pan (1" NPT)" | 1 | |
| 41-8029 | HEATER - oil pan (M27X2) | 1 | ||
| 41-8030 | HEATER - oil pan (1-1/8-12 UNF) | 1 | ||
| 41-8027 | HEATER - oil pan (3/4" NPT)" | 1 | ||
| 25 | 92-7126 | MOUNT - coolant heater | 2 | |
| 26 | 51-1793 | ADAPTER - hose | 1 | |
| 27 | 51-1794 | ADAPTER - hose (90 degree) | 1 | |
| 28 | 92-7960 | PANEL - rear (upper) | 1 | |
| 29 | 92-7961 | PANEL - rear (lower) | 1 | |
| 40-1157 | KIT - alternator 120 amp (includes items 1, 2, 3, 30 & 31) | 1 | ||
| 30 | 41-9289 | HARNESS - alternator | 1 | |
| 31 | 41-3318 | RELAY | 1 | |
| 32 | 92-6734 | BAR - spacer | 1 | |
| 33 | 41-9225 | SWITCH - ambient (Extreme Arctic PAC) | 1 | |
| 34 | 41-9224 | HARNESS - ambient (Extreme Arctic PAC) | 1 | |
| 35 | 42-922 | CABLE - battery (negative 12 inch) | 1 |
