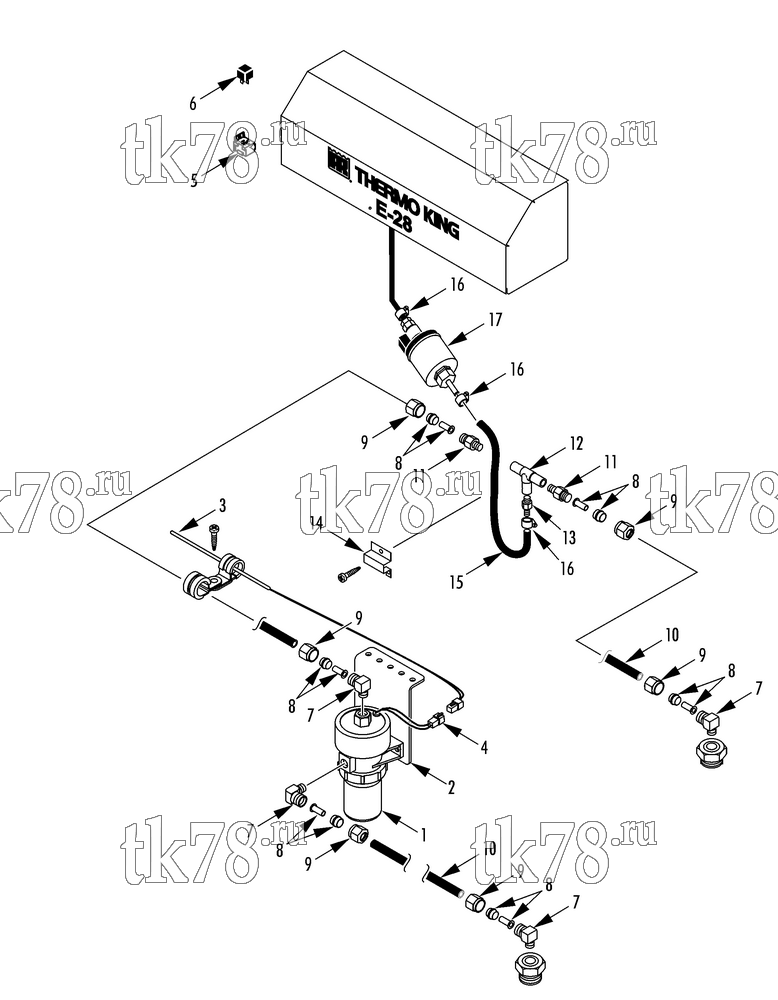

Установкa Thermo King схема EXTENDED FUEL LINE & PUMP KIT – 226C0
Обновление от: 1/12/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 10-392 | KIT - extended fuel line & pump | 1 | ||
| 1 | 41-7059 | PUMP - fuel | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 450 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 8 390 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 7 920 ₽ |
|
| 2 | 92-5656 | BRACKET - fuel pump | 1 | |
| 3 | 41-3664 | HARNESS - fuel pump | 1 | |
| 4 | 44-9585 | PLUG - fuel harness | 1 | |
| 5 | 44-5537 | SOCKET - relay | 1 | |
| 6 | 44-9391 | RELAY | 1 | |
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 7 | 11-4860 | ELBOW - fuel | 4 | |
| 8 | 10-243 | KIT - sleeve & eyelet | 6 | |
| 9 | 11-4841 | NUT - fuel line | 6 | |
| 10 | 11-4367 | HOSE - fuel | A/R | |
| 11 | 11-4370 | CONNECTOR - fuel line | 2 | |
| 12 | 13-951 | TEE | 1 | |
| 13 | 13-952 | ADAPTER - hose | 1 | |
| 14 | 92-6719 | BRACKET - tee | 1 | |
| 55-5646 | SCREW - bracket | 3 | ||
| 15 | 81-568 | HOSE - fuel (tank to pump, 5 mm) | 1 | |
| 16 | 51-1235 | CLAMP - hose (11 mm) | 1 | |
| 17 | 84-975 | PUMP - fuel (see 221H5) | 1 |
