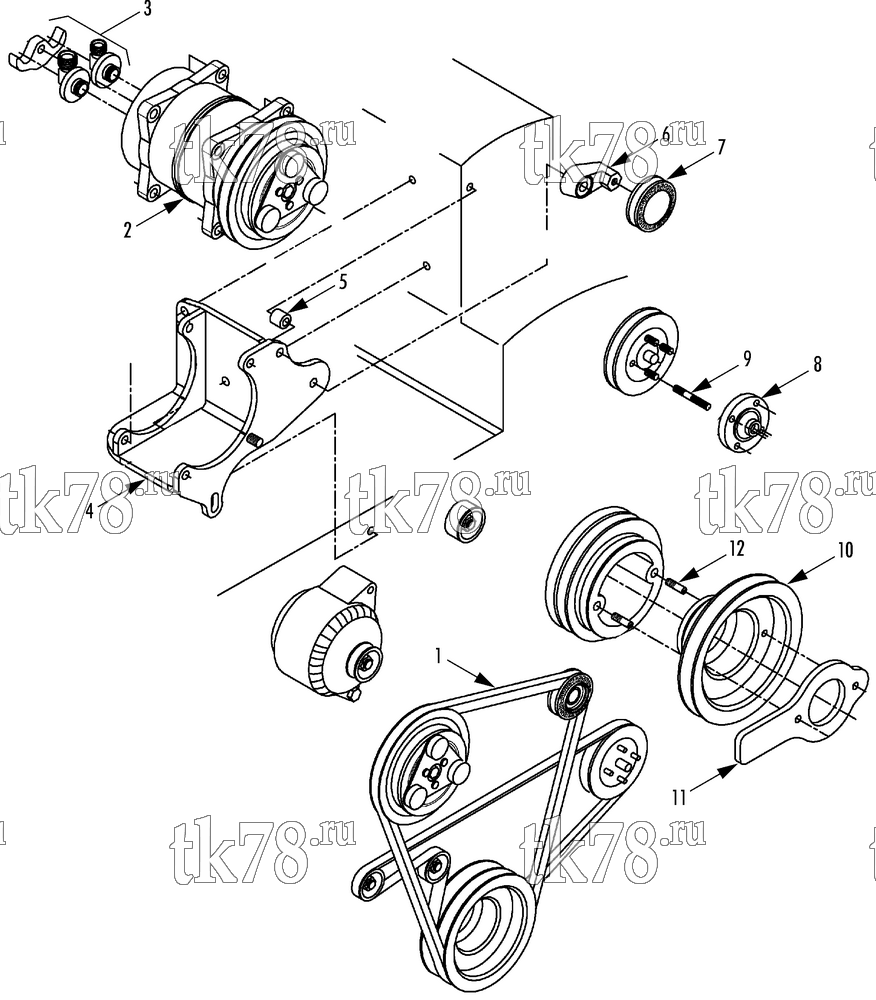

Установкa Thermo King схема DRIVE KIT (Toyota DYNA, HIACE, HILUX D-4D, 12140395) – 225C3
Обновление от: 8/9/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-156 | BELT | 1 | |
| 2 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1391 | SCREW - compressor | 2 | ||
| 108-1540 | FLATWASHER | 4 | ||
| 108-1517 | NUT | 5 | ||
| 3 | 108-1234 | CONNECTOR - compressor (horizontal) | 1 | |
| 33-566 | O-RING | 2 | ||
| 4 | 108-513 | BRACKET - compressor | 1 | |
| 108-1389 | SCREW - compressor (M10X30) | 3 | ||
| 108-2518 | SCREW - compressor (M10X50) | 1 | ||
| 108-1542 | LOCKWASHER | 4 | ||
| 108-1540 | FLATWASHER | 4 | ||
| 5 | 108-1148 | SPACER - bracket | 1 | |
| 6 | 108-918 | IDLER ECCENTRIC | 1 | |
| 108-1423 | SCREW - idler | 1 | ||
| 108-1550 | LOCKWASHER | 1 | ||
| 7 | 108-918 | IDLER - eccentric | 1 | |
| 108-1365 | SCREW - idler | 1 | ||
| 108-1539 | LOCKWASHER | 1 | ||
| 8 | 108-973 | SPACER - fan | 1 | |
| 9 | 108-1268 | STUD - fan (use original hardware) | 4 | |
| 10 | 108-356 | PULLEY - crankshaft | 1 | |
| 11 | 108-1330 | PULLEY | 1 | |
| 108-1369 | SCREW - pulley | 2 | ||
| 12 | 108-2519 | STUD | 2 |
