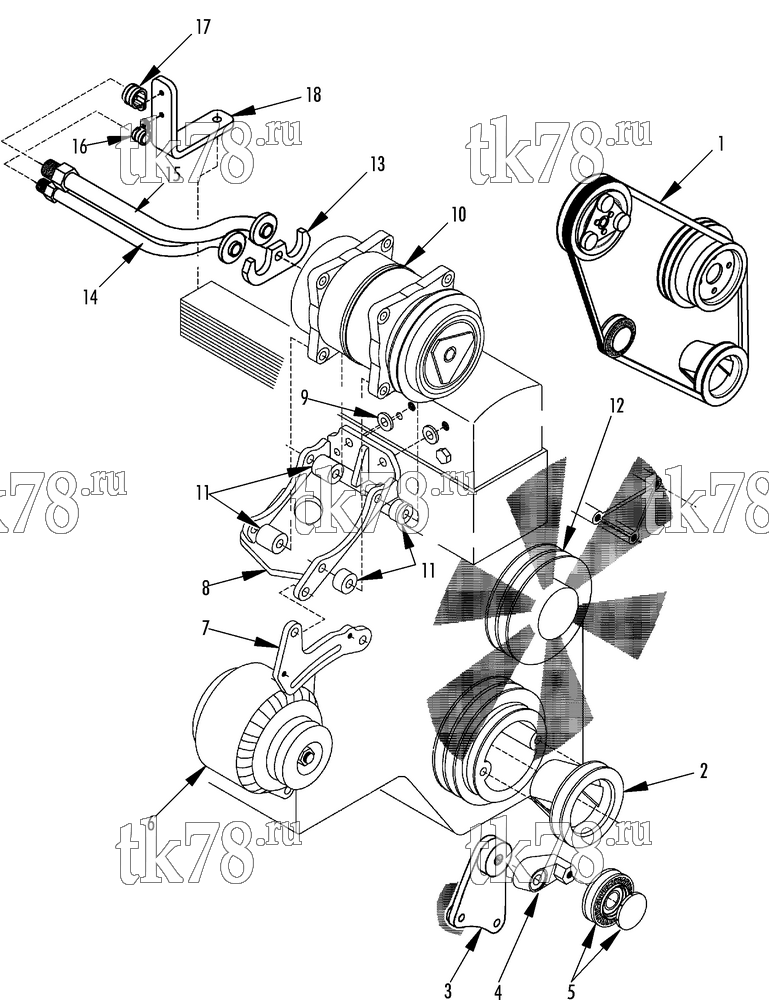

Установкa Thermo King схема DRIVE KIT (Mitsubishi Canter 3S13, 3C13, 5S13, 12140440) – 225C2
Обновление от: 9/29/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-165 | BELT | 1 | |
| 2 | 108-349 | PULLEY - compressor (use original hardware) | 1 | |
| 3 | 108-2392 | PLATE - front | 1 | |
| 108-1365 | SCREW - plate | 2 | ||
| 108-1546 | LOCKWASHER | 2 | ||
| 4 | 108-871 | IDLER - eccentric | 1 | |
| 108-1423 | SCREW - idler | 1 | ||
| 108-1550 | LOCKWASHER | 1 | ||
| 5 | 108-385 | PULLEY - idler | 1 | |
| 108-1372 | SCREW - pulley | 1 | ||
| 108-1546 | LOCKWASHER | 1 | ||
| 6 | N/A | ALTERNATOR (use original alternator and hardware) | 1 | |
| 7 | 108-673 | TENSIONER - alternator | 1 | |
| 108-1388 | SCREW - tensioner | 1 | ||
| 108-1547 | FLATWASHER | 1 | ||
| 108-1517 | NUT | 1 | ||
| 8 | 108-500 | BRACKET - compressor | 1 | |
| 108-1365 | SCREW - bracket (M8 x 25) | 1 | ||
| 108-1546 | FLATWASHER (M12) | 1 | ||
| 108-1387 | SCREW - bracket (M10 x 25) | 2 | ||
| 108-1545 | LOCKWASHER (M10) | 2 | ||
| 9 | 108-1119 | SPACER | 1 | |
| 10 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1400 | SCREW - compressor (M10 x 65) | 2 | ||
| 108-1395 | SCREW - compressor (M10 x 50) | 1 | ||
| 108-1517 | NUT | 3 | ||
| 11 | 108-1111 | SPACER (set of four) | 2 | |
| 12 | 108-2391 | PULLEY - fan | 1 | |
| 13 | 22-1120 | BRACKET - manifold holddown | 1 | |
| 14 | 108-2395 | HOSE - discharge | 1 | |
| 15 | 108-2394 | HOSE - suction | 1 | |
| 16 | 51-375 | CLAMP - suction (15 mm) | 1 | |
| 17 | 92-1501 | CLAMP - discharge (12 mm) | 1 | |
| 108-2212 | SCREW - clamp | 2 | ||
| 18 | 108-2393 | BRACKET - clamp | 1 | |
| 108-1366 | SCREW - bracket | 1 | ||
| 108-1539 | LOCKWASHER | 1 |
