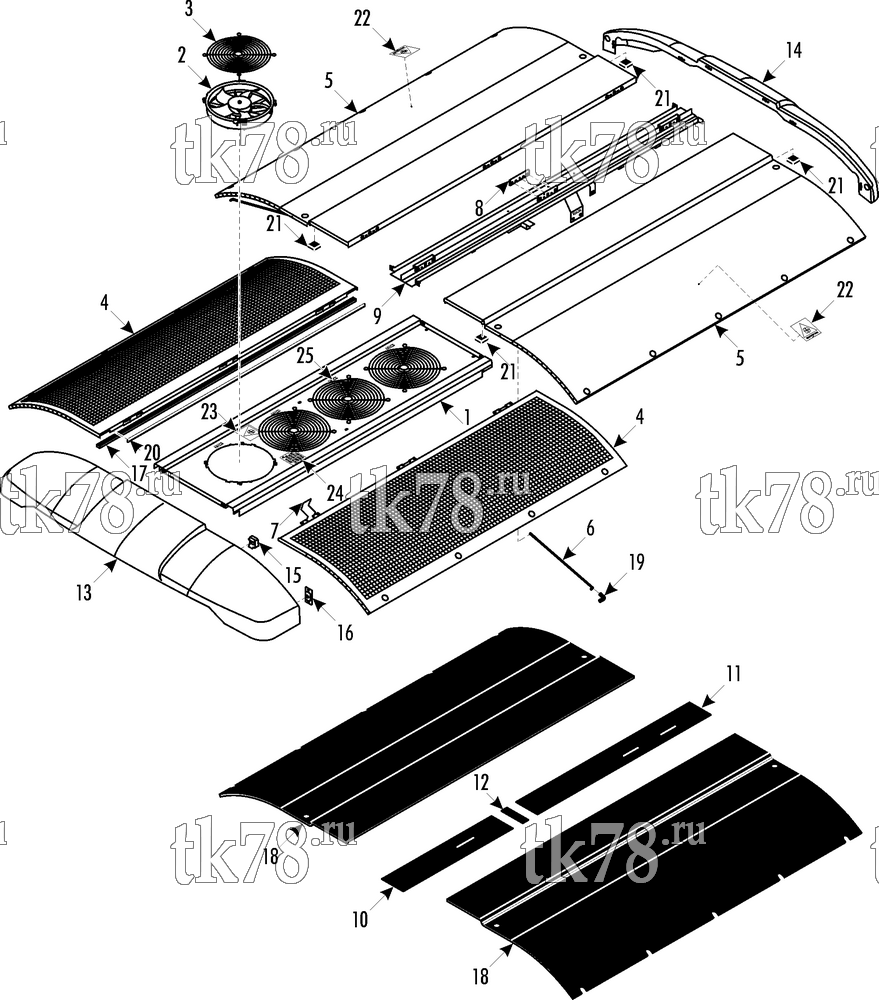

Установкa Thermo King схема COVER (3/02 & After) – 224E4
Обновление от: 5/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6870 | PLATE (12/03 & after) | 1 | |
| 98-5625 | PLATE (before 12/03, see 163B1) | 1 | ||
| 55-6994 | SCREW - plate | 6 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 55-6995 | FLATWASHER | 6 | ||
| 55-7373 | NUT - captive | 6 | ||
| 2 | 78-1344 | FAN - assembly (9/04 & after) | 4 | |
| 78-1294 | FAN - assembly (before 9/04) | 4 | ||
| 78-1294 OEM | Вентилятор конденсатора | 19 470 ₽ |
|
|
|
10-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 13 280 ₽ |
|
| PP-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 4 600 ₽ |
|
|
| 3 | 98-5425 | GUARD - fan | 4 | |
| 55-7372 | SCREW - fan & guard | 16 | ||
| 55-9190 | LOCKWASHER | 16 | ||
| 55-8893 | FLATWASHER | 16 | ||
| 55-7373 | NUT - captive | 16 | ||
| 4 | 98-7892 | GRILLE - condenser (12/03 & after) | 2 | |
| 98-5626 | GRILLE - condenser (right, before 12/03, see 163B1) | 1 | ||
| 98-5627 | GRILLE - condenser (left, before 12/03, see 163B1) | 1 | ||
| 5 | 98-7893 | COVER - evaporator | 2 | |
| 55-2782 | SCREW - grille & cover | 18 | ||
| 55-7112 | WASHER - special | 18 | ||
| 55-9122 | SCREW - cover | 4 | ||
| 51-307 | RING - neoprene | 4 | ||
| 55-7112 | WASHER - special | 4 | ||
| 6 | 92-3863 | ROD - cover | 4 | |
| 55-5047 | RIVET - rod | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 7 | 91-9877 | ROD - grille | 6 | |
| 8 | 91-7098 | HINGE - covers | 6 | |
| 55-7036 | SCREW - hinge to support | 9 | ||
| 55-7033 | FLATWASHER | 18 | ||
| 55-7034 | NUT | 9 | ||
| 55-7169 | SCREW - hinge to cover | 12 | ||
| 55-7033 | FLATWASHER | 24 | ||
| 55-7034 | NUT | 12 | ||
| 9 | 98-5930 | SUPPORT - assembly | 1 | |
| 10 | 92-6440 | INSULATION - support | 1 | |
| 11 | 92-6441 | INSULATION - support | 1 | |
| 12 | 92-6401 | INSULATION - support | 1 | |
| 55-7373 | NUT - captive | 6 | ||
| 55-6994 | SCREW - support | 8 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 12 | ||
| 55-7042 | NUT | 4 | ||
| 13 | 98-5630 | SPOILER - long (radius 5 m) | 1 | |
| 98-5714 | SPOILER - long (radius 7.5 m) | 1 | ||
| 14 | 98-5631 | SPOILER - short (radius 5 m) | 1 | |
| 98-5715 | SPOILER - short (radius 7.5 m) | 1 | ||
| 15 | 55-6997 | NUT - captive, special (only long spoiler) | 4 | |
| 16 | 92-1217 | NUTSTRIP | 10 | |
| 55-3035 | RIVET | 20 | ||
| 55-7035 | SCREW - spoilers | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 17 | 92-3860 | INSULATION (12/03 & after) | 2 | |
| 18 | 92-6442 | INSULATION - cover (12/03 & after) | 2 | |
| 19 | 33-4400 | INSULATION - rod (12/03 & after) | 4 | |
| 20 | 99-4976 | STRIP - neoprene | A/R | |
| 21 | 99-5966 | STRIP - neoprene | A/R | |
| 22 | 99-3064 | NAMEPLATE - Caution, Fan | 2 | |
| 23 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 24 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 25 | 99-4931 | NAMEPLATE - Arrow | 4 |
