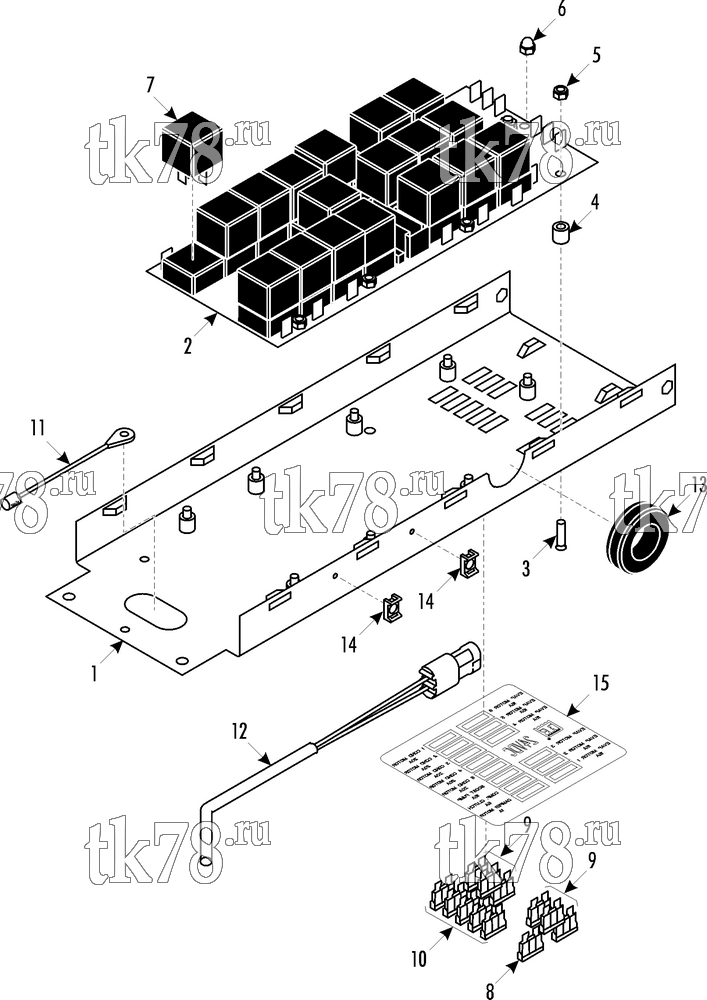

Установкa Thermo King схема CONTROL PANEL - ClimaAIRE (1012) – 224E0
Обновление от: 10/9/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-5247 | PANEL - control | 1 | |
| 55-7172 | SCREW - panel | 4 | ||
| 55-8718 | SPACER | 2 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 2 | ||
| 2 | 41-4045 | BOARD - pc | 1 | |
| 3 | 55-9623 | STUD - board, self clinching | 9 | |
| 4 | 55-9624 | SPACER | 9 | |
| 5 | 55-7034 | NUT | 8 | |
| 6 | 51-310 | NUT - acorn (plastic) | 1 | |
| 7 | 41-5657 | RELAY (18 for CA I, 17 for CA I D & CA II) | A/R | |
| 8 | 41-1932 | FUSE (1 amp) | 1 | |
| 9 | 44-9344 | FUSE (15 amp) | 6 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 10 | 41-2978 | FUSE (20 amp) | 5 | |
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 11 | 41-243 | STRAP - door | 1 | |
| 55-7169 | SCREW - strap | 1 | ||
| 55-2996 | WASHER (internal tooth) | 1 | ||
| 55-7033 | FLATWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 12 | 41-4157 | SENSOR - temperature | 1 | |
| 13 | 33-489 | GROMMET (1.25 id) | 1 | |
| 14 | 99-3427 | MOUNT - bandwrap | 2 | |
| 55-3010 | RIVET - mount | 2 | ||
| 15 | 92-2730 | NAMEPLATE - control panel | 1 |
