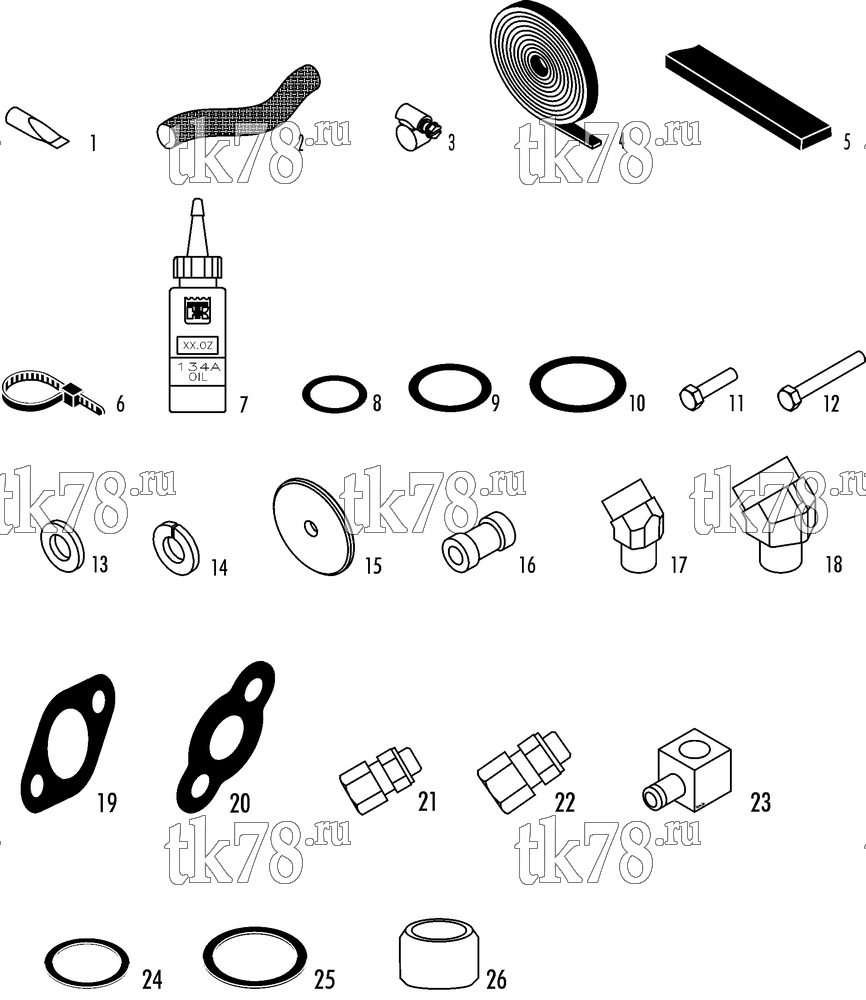

Установкa Thermo King схема INSTALLATION COMPONENTS – 224D4
Обновление от: 4/24/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-1273 | VALVE - check (hose) | 4 | |
| 2 | 91-9006 | HOSE (#16) | A/R | |
| 3 | 55-6726 | CLAMP - hose | 4 | |
| 4 | 203-391 | SEALER - tape | A/R | |
| 5 | 33-3531 | STRIP - neoprene | A/R | |
| 6 | 55-2330 | BANDWRAP (1.75 dia) | A/R | |
| 7 | 203-505 | OIL - compressor (2 oz bottle) | 1 | |
| 8 | 33-1223 | O-RING (9/16 id) | 2 | |
| 9 | 33-3165 | O-RING (1-3/16 id) | 2 | |
| 10 | 33-3166 | O-RING (1-7/16 id) | 2 | |
| 11 | 55-7035 | SCREW (M6, 25 mm) | 8 | |
| 12 | 55-7027 | SCREW (M6, 45 mm) | 2 | |
| 13 | 55-8893 | FLATWASHER | 10 | |
| 14 | 55-7170 | LOCKWASHER | 10 | |
| 15 | 55-8542 | WASHER - special | 12 | |
| 16 | 305-1655 | SPACER - spoiler | 2 | |
| 17 | 55-5886 | ADAPTER (#16) | 1 | |
| 18 | 55-5887 | ADAPTER (#20) | 1 | |
| 19 | 33-2541 | GASKET - flat | 1 | |
| 20 | 33-2805 | GASKET - flat | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 21 | 55-9968 | FITTING - fuel (8 mm, for 1012) | 1 | |
| 22 | 55-9869 | FITTING - fuel (10 mm, for 1012) | 1 | |
| 23 | 61-3625 | FITTING - elbow (for 1012) | 2 | |
| 24 | 33-230 | O-RING (1.875 id, for screw compressor) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 25 | 33-3707 | O-RING (2.125 id, for screw compressor) | 1 | |
| 26 | 51-1493 | INSERT (for screw compressor) | 1 |
