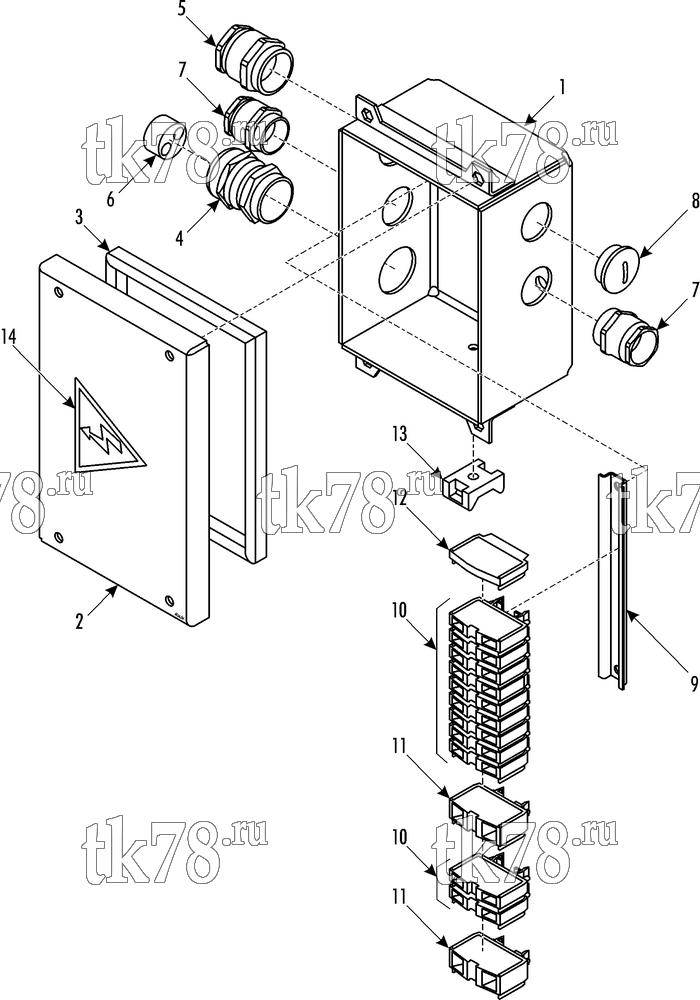

Установкa Thermo King схема JUNCTION BOX – 224B2
Обновление от: 11/6/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3239 | BOX - terminal | 1 | |
| 55-7664 | SCREW - box | 2 | ||
| 51-1539 | FLATWASHER | 2 | ||
| 2 | 92-3240 | COVER | 1 | |
| 55-7696 | SCREW - cover | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-7866 | NUT - captive | 4 | ||
| 3 | 33-3276 | PAD - box | 1 | |
| 4 | 51-1400 | BUSHING - cable | 1 | |
| 5 | 55-9710 | BUSHING - cable | 1 | |
| 55-9711 | LOCKNUT - bushing | 2 | ||
| 6 | 41-6682 | SEALING - bushing | 1 | |
| 7 | 55-9554 | BUSHING - cable | 2 | |
| 55-9558 | LOCKNUT - bushing | 2 | ||
| 8 | 51-818 | PLUG | 1 | |
| 51-843 | WASHER - sealing | 1 | ||
| 51-819 | NUT - plug | 1 | ||
| 9 | 92-3241 | RAIL - din | 1 | |
| 55-2260 | RIVET - rail | 2 | ||
| 10 | 41-3892 | TERMINAL - wago | 11 | |
| 11 | 41-3893 | TERMINAL - wago, double | 2 | |
| 12 | 41-3894 | PLATE -end | 1 | |
| 13 | 99-3281 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 55-2330 | BANDWRAP | 1 | ||
| 14 | 99-7834 | NAMEPLATE - Caution, High Voltage | 1 |
