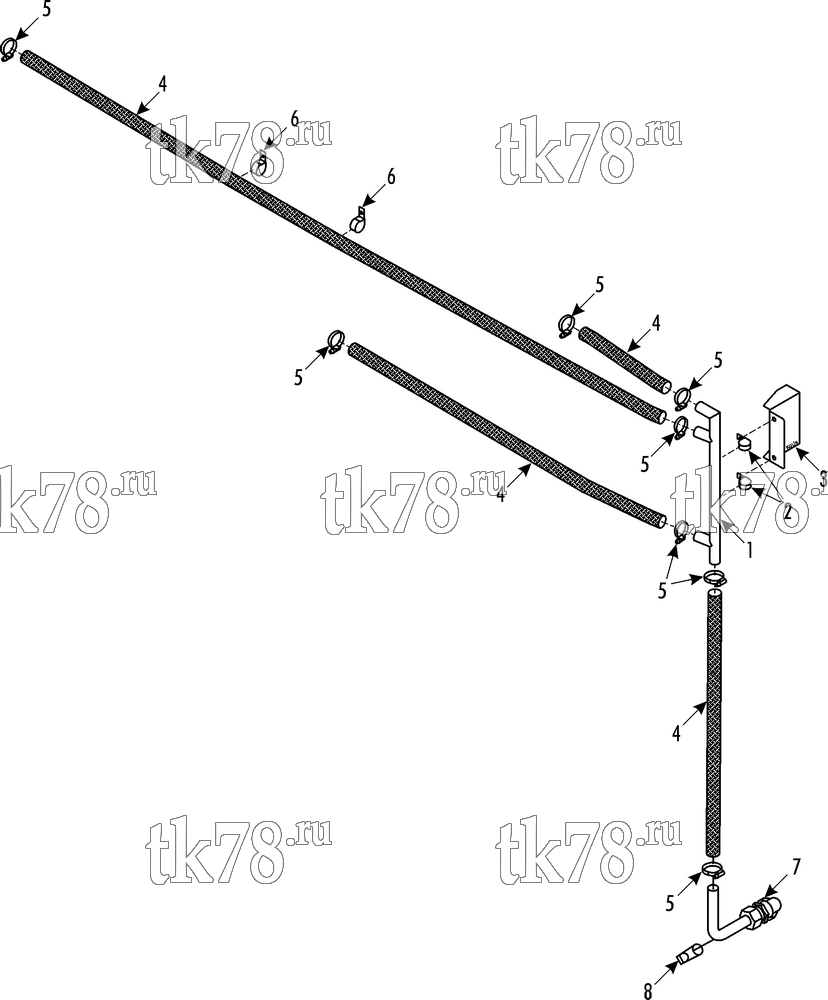

Установкa Thermo King схема DRAIN KIT – 224A5
Обновление от: 5/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-4060 | TUBE - weldment | 1 | |
| 2 | 55-4552 | CLAMP - tube | 2 | |
| 55-7172 | SCREW - clamp | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 3 | 92-6356 | HOLDER | 1 | |
| 55-7172 | SCREW - holder to train | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 4 | 61-4043 | HOSE | A/R | |
| 5 | 51-840 | CLAMP - hose | 8 | |
| 6 | 55-7504 | CLAMP - hose to fresh air | 2 | |
| 55-7172 | SCREW - clamp | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 7 | 61-4061 | KIT - drain | 1 | |
| 8 | 66-1273 | VALVE - check | 1 |
