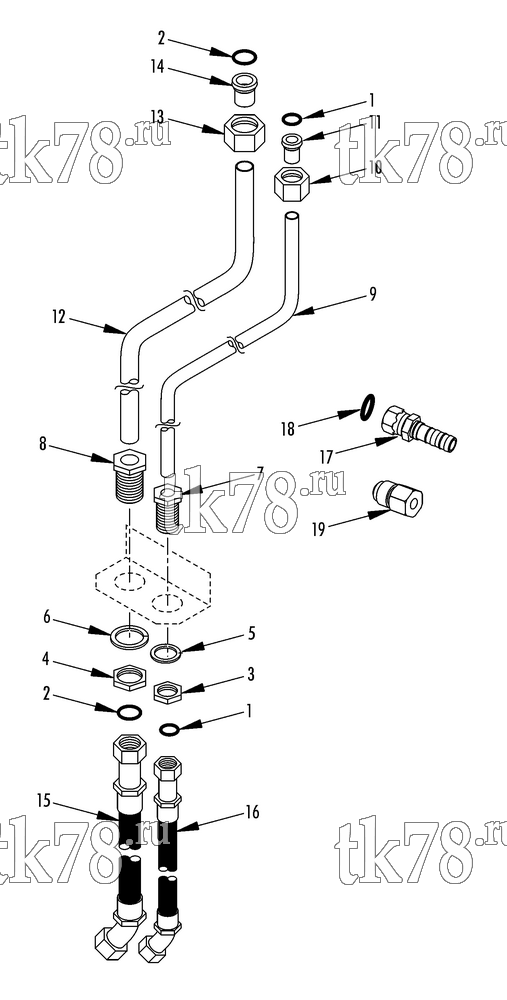

Установкa Thermo King схема COMPRESSOR HOSE CONNECTIONS – 223H6
Обновление от: 10/24/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-1777 | O-RING - discharge | 2 | |
| 2 | 33-920 | O-RING - suction | 2 | |
| 3 | 55-5739 | NUT - bulkhead (#20) | 1 | |
| 4 | 55-5996 | NUT - bulkhead (#24) | 2 | |
| 5 | 55-5741 | LOCKWASHER (1.5 id) | 1 | |
| 6 | 55-5742 | LOCKWASHER (1.75 id) | 1 | |
| 7 | 55-7537 | ADAPTER - bulkhead (#20) | 1 | |
| 8 | 55-6570 | ADAPTER - bulkhead (#24) | 2 | |
| 9 | NPN | TUBE - OEM supplied | 1 | |
| 10 | 55-5935 | NUT - shoulder (#20) | 5 | |
| 10 | 55-5939 | SLEEVE - adapter (#20) | 4 | |
| 12 | NPN | TUBE - OEM supplied | 1 | |
| 13 | 55-9023 | NUT - shoulder (#24) | 2 | |
| 14 | 55-7051 | SLEEVE - adapter (#24) | 2 | |
| 15 | 61-2374 | HOSE - suction (#24, 23.0 in lg) | 1 | |
| 16 | 66-9463 | HOSE - discharge (#20, 32.0 in lg) | 1 | |
| 17 | 51-1694 | FITTING - straight, 45 degrees | 1 | |
| 18 | 33-1223 | O-RING (9/16" ID)" | 1 | |
| 33-920 | O-RING (1.50" id)" | 3 | ||
| 19 | 51-1695 | FITTING - adapter | 1 |
