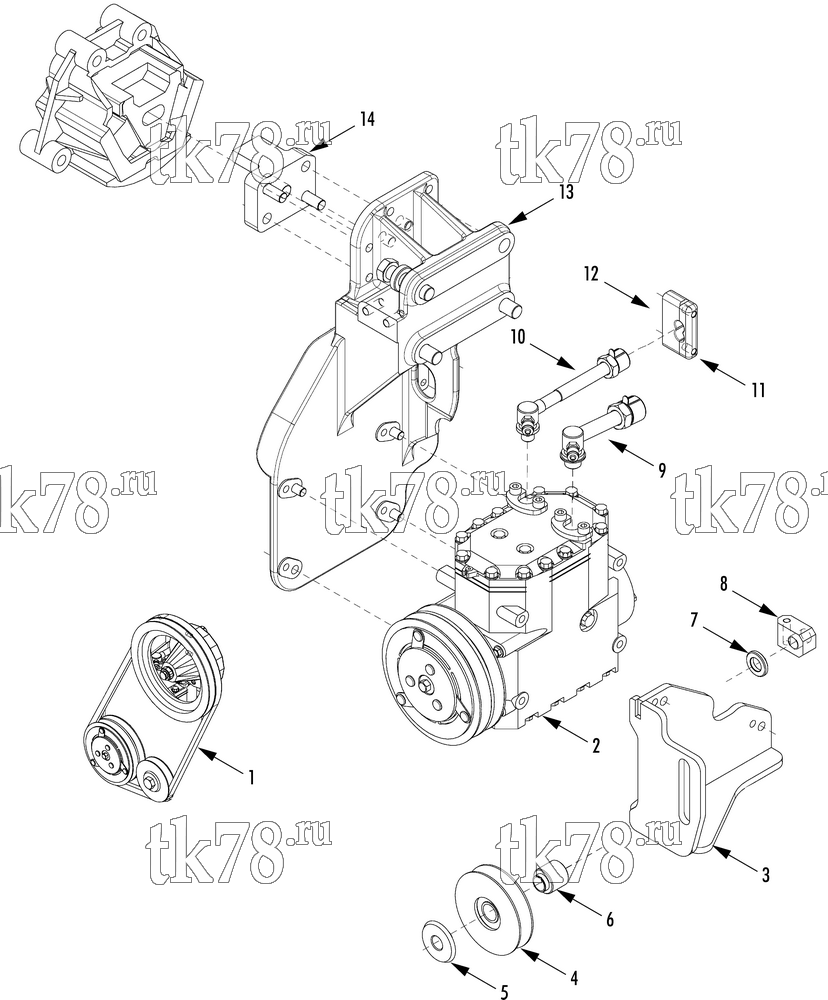

Установкa Thermo King схема DRIVE KIT (Renault Midlum Volvo FL Euro 4 & 5, 780006) – 223G2
Обновление от: 6/16/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2507 | BELT | 1 | |
| 2 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1388 | SCREW - compressor (M10 x 30) | 4 | ||
| 108-1542 | LOCKWASHER (M10) | 4 | ||
| 108-1540 | FLATWASHER (M10) | 4 | ||
| 55-6215 | SCREW - compressor (M8 x 30) | 2 | ||
| 55-790 | LOCKWASHER (M8) | 2 | ||
| 55-7069 | FLATWASHER (M8) | 2 | ||
| 55-5424 | SPACER (TK 312 compressor) | 2 | ||
| 3 | 108-2508 | SUPPORT - tension | 1 | |
| 4 | 108-394 | PULLEY - idler | 1 | |
| 5 | 108-952 | SPACER | 1 | |
| 108-1467 | SCREW - idler pulley | 1 | ||
| 6 | 108-2509 | SPACER | 1 | |
| 7 | 108-2510 | SPACER | 1 | |
| 8 | 108-2511 | TENSIONER | 1 | |
| 108-2318 | SCREW - tensioner adjust | 1 | ||
| 9 | 108-2513 | CONNECTOR - suction (tube-o) | 1 | |
| 10 | 108-2512 | CONNECTOR - discharge (tube-o) | 1 | |
| 11 | 108-2514 | BRACKET - connector (right) | 1 | |
| 12 | 108-2520 | BRACKET - compressor (left) | 1 | |
| 108-1372 | SCREW - connector | 2 | ||
| 108-1539 | LOCKWASHER | 2 | ||
| 13 | 108-2483 | BRACKET - compressor | 1 | |
| NSS | SCREW - bracket (use original) | 4 | ||
| 108-2482 | SPACER | 4 | ||
| 14 | 108-2480 | SUPPORT - motor | 1 | |
| 108-1508 | SCREW - support | 4 |
