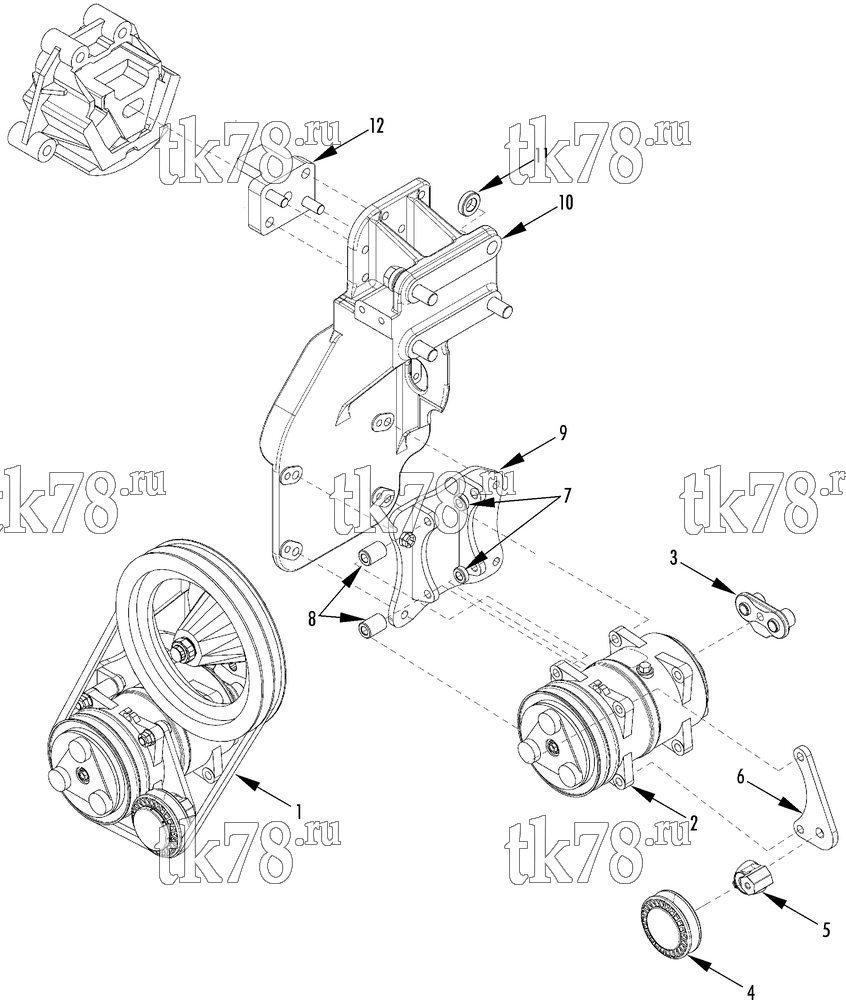

Установкa Thermo King схема DRIVE KIT (Renault Midlum Volvo FL 4/6 cyl Euro 4&5, 740011) – 223F3
Обновление от: 6/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2476 | BELT | 1 | |
| 2 | NSS | COMPRESSOR & CLUTCH (see compressor section) | 1 | |
| 108-1393 | SCREW - compressor (M10X45) | 2 | ||
| 108-1400 | SCREW - compressor (M10X65) | 2 | ||
| 108-1517 | NUT | 4 | ||
| 3 | 22-1053 | CONNECTOR - horizontal | 1 | |
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 4 | 108-385 | PULLEY - idler | 1 | |
| 108-1365 | SCREW - pulley | 1 | ||
| 108-1539 | LOCKWASHER | 1 | ||
| 5 | 108-2638 | IDLER - eccentric | 1 | |
| 108-1417 | SCREW - idler | 1 | ||
| 108-1550 | LOCKWASHER | 1 | ||
| 6 | 108-2477 | BRACKET - tension | 1 | |
| 108-1390 | SCREW - bracket | 2 | ||
| 108-1517 | NUT | 2 | ||
| 7 | 108-2478 | SPACER (7.5mm) | 2 | |
| 8 | 108-2479 | SPACER (28mm) | 2 | |
| 9 | 108-2481 | SUPPORT - compressor | 1 | |
| 108-1390 | SCREW - support | 4 | ||
| 108-1517 | NUT | 4 | ||
| 10 | 108-2483 | SUPPORT - motor | 1 | |
| N/A | SCREW - support (use original hardware, OEM) | A/R | ||
| 11 | 108-2482 | SPACER - support | 4 | |
| 12 | 108-2515 | SUPPORT - compressor | 1 | |
| 108-1508 | SCREW - support | 4 |
