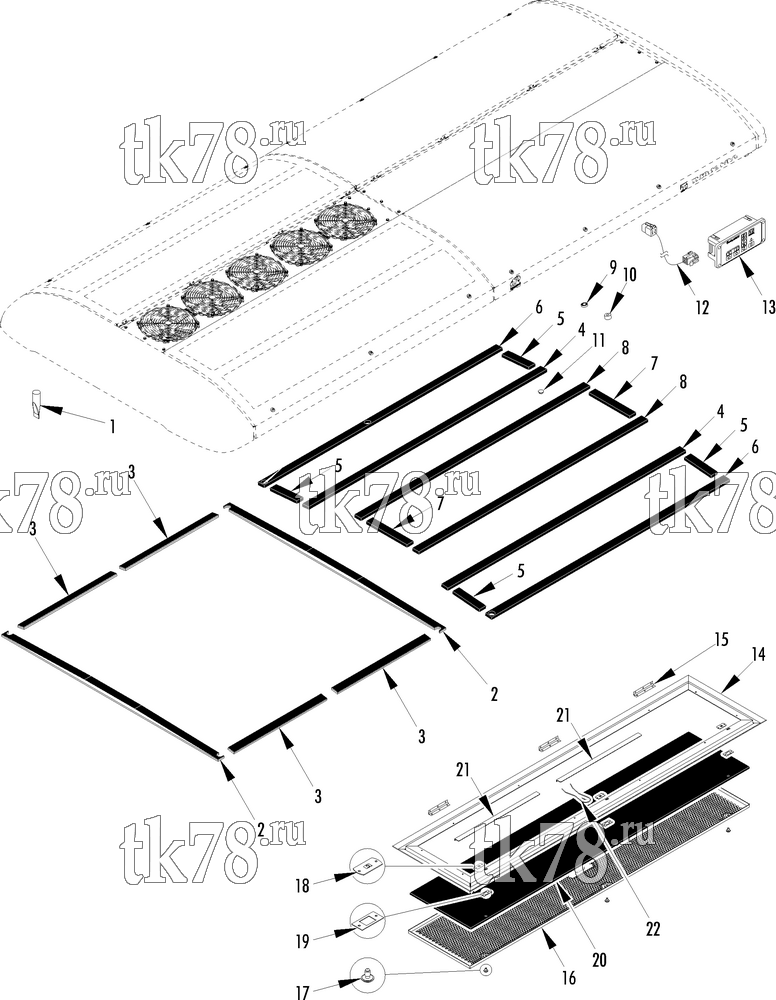

Установкa Thermo King схема UNIT GASKETS, DISPLAY, GRILLE & FILTER – 223D4
Обновление от: 7/26/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-1273 | VALVE - drain | 4 | |
| 91-9006 | HOSE - drain (pet 16mm id) | 1 | ||
| 2 | 33-4099 | GASKET - condenser, center | 2 | |
| 3 | 33-4100 | GASKET - condenser, sides | 4 | |
| 4 | 33-4389 | GASKET - discharge, inside | 2 | |
| 5 | 33-4101 | GASKET - discharge, center | 4 | |
| 6 | 33-4103 | GASKET - discharge, outside | 2 | |
| 7 | 33-4126 | GASKET - return air, center | 2 | |
| 8 | 33-4403 | GASKET - return air, side | 2 | |
| 9 | 51-192 | WASHER - spl | 24 | |
| 10 | 92-2763 | SPACER (1.50 in id) | 12 | |
| 11 | 92-1451 | PLUG - button, black | 6 | |
| 12 | 41-5180 | HARNESS - display (30 ft long) | 1 | |
| 41-4284 | CONNECTOR - 6 term | 1 | ||
| 41-4285 | LOCK - terminal | 2 | ||
| 41-4283 | CONNECTOR - 6S | 1 | ||
| 41-4899 | WEDGE - connector | 1 | ||
| 13 | 41-7199 | MODULE - display, standard | 1 | |
| 14 | 98-7112 | FRAME - return air grille | 1 | |
| 15 | 91-8903 | HINGE - frame | 3 | |
| 55-2012 | RIVET - hinge | 9 | ||
| 16 | 98-7730 | DOOR - grille, return air | 1 | |
| 17 | 55-9283 | SCREW - lock | 3 | |
| 55-7112 | WASHER - spl | 3 | ||
| 18 | 55-2074 | LOCKWASHER | 3 | |
| 19 | 91-7625 | LOCKPLATE | 3 | |
| 55-2012 | RIVET - lockplate | 21 | ||
| 20 | 92-4713 | FOAM - reticulated | 1 | |
| 21 | 92-4675 | BRACKET - filter | 2 | |
| 22 | 91-9343 | CLIP - filter | 1 |
