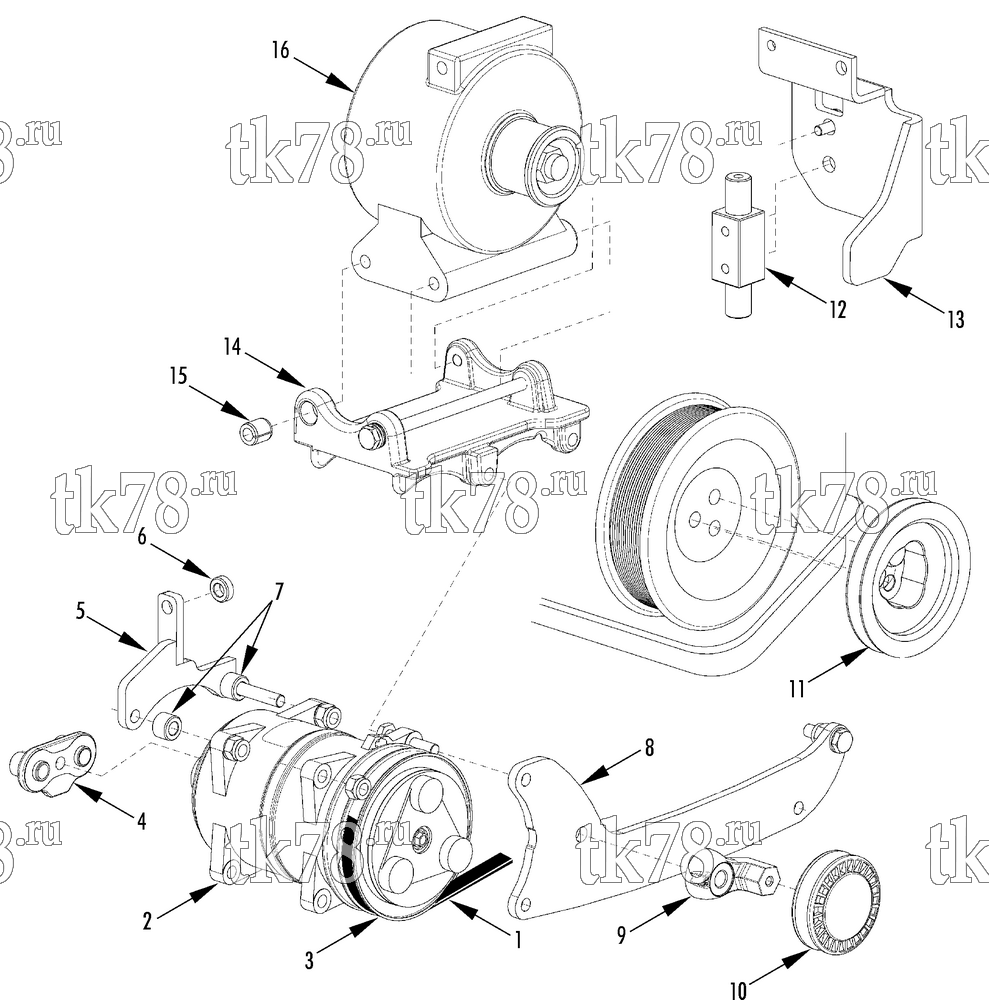

Установкa Thermo King схема DRIVE KIT (Ford TCDi T330/350/430, 740000) – 223C9
Обновление от: 6/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2453 | BELT | 1 | |
| 2 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1400 | SCREW - compressor (M10 x 65) | 2 | ||
| 108-1395 | SCREW - compressor (M10X50) | 2 | ||
| 108-1390 | SCREW - compressor (M10X35) | 1 | ||
| 108-1517 | NUT | 5 | ||
| 3 | NSS | CLUTCH (see compressor section) | 1 | |
| 4 | 22-1053 | CONNECTOR - compressor (horizontal) | 1 | |
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 108-1287 | SEALANT (Loctite 243) | 1 | ||
| 5 | 108-2454 | SUPPORT - compressor | 1 | |
| 108-1398 | SCREW - support (M10 x 60) | 1 | ||
| 108-1545 | LOCKWASHER (M10) | 1 | ||
| 6 | 108-1564 | SPACER - support (7.5 mm) | 1 | |
| 7 | 108-2455 | SPACER - support (14.3 mm) | 2 | |
| 8 | 108-660 | PLATE - front | 1 | |
| 108-1390 | SCREW - plate | 2 | ||
| 108-1540 | FLATWASHER | 4 | ||
| 108-1517 | NUT | 2 | ||
| 9 | 108-2638 | IDLER - eccentric | 1 | |
| 108-1417 | SCREW - idler | 1 | ||
| 108-1550 | LOCKWASHER | 1 | ||
| 10 | 108-385 | PULLEY - idler | 1 | |
| 108-1365 | SCREW - pulley | 6 | ||
| 108-1539 | LOCKWASHER | 9 | ||
| 11 | 108-2456 | PULLEY - crankshaft | 1 | |
| 108-2457 | SCREW - pulley | 3 | ||
| 108-1550 | LOCKWASHER | 3 | ||
| 12 | 108-695 | SUPPORT | 1 | |
| 108-1365 | SCREW - support | 2 | ||
| 108-1539 | LOCKWASHER | 2 | ||
| 108-1535 | FLATWASHER | 2 | ||
| 13 | 108-2459 | BRACKET - restraining | 1 | |
| 108-1640 | SPACER - centering | 1 | ||
| 108-1190 | SPACER | 3 | ||
| 108-1378 | SCREW - bracket | 3 | ||
| 108-1539 | LOCKWASHER | 3 | ||
| 14 | 92-6385 | SUPPORT - compressor | 1 | |
| 15 | 108-2460 | SPACER | 2 | |
| 16 | N/A | COMPRESSOR - truck (not supplied by TK OEM equipment) | 1 | |
| 108-2458 | SCREW - compressor | 2 | ||
| 108-1542 | LOCKWASHER | 2 | ||
| 108-1540 | FLATWASHER | 2 |
