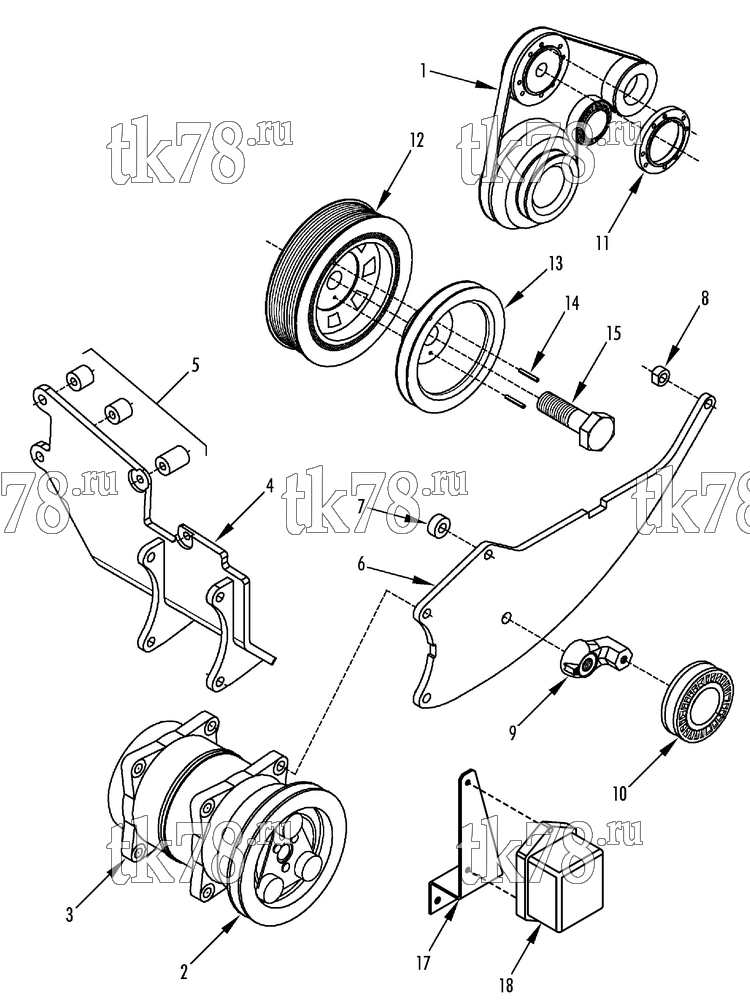

Установкa Thermo King схема DRIVE KIT (Iveco Daily 3.0 740001) – 223C13
Обновление от: 6/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2531 | BELT - compressor | 1 | |
| 2 | 108-1294 | CLUTCH (150 dia) | 1 | |
| 22-1053 | CONNECTOR - horizontal | 1 | ||
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 3 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1411 | SCREW - compressor (M10 x 140) | 2 | ||
| 108-1540 | FLATWASHER | 2 | ||
| 108-1517 | NUT | 2 | ||
| 4 | 108-2523 | SUPPORT - compressor | 1 | |
| 108-2271 | SCREW - support (M8 x 35) | 1 | ||
| 108-1634 | SCREW - support (M8 x 50) | 1 | ||
| 108-2361 | SCREW - support (M8 x 60) | 1 | ||
| 108-1539 | FLATWASHER (M8) | 3 | ||
| 108-1539 | LOCKWASHER (M8) | 3 | ||
| 5 | 108-2527 | SPACER | 2 | |
| 6 | 108-2525 | RESTRAINING | 1 | |
| 108-2288 | SCREW - support | 2 | ||
| 108-1540 | FLATWASHER | 2 | ||
| 108-1542 | LOCKWASHER | 2 | ||
| 7 | 108-2528 | SPACER (22 mm od) | 1 | |
| 8 | 108-2529 | SPACER (18 mm od) | 1 | |
| 9 | 108-2522 | IDLER - eccentric | 1 | |
| 108-1417 | SCREW - idler | 1 | ||
| 108-1550 | LOCKWASHER | 1 | ||
| 10 | 108-1672 | PULLEY - idler | 1 | |
| 108-1365 | SCREW - idler pulley | 1 | ||
| 108-1539 | LOCKWASHER | 1 | ||
| 11 | 108-965 | SPACER - fan | 1 | |
| 108-1356 | SCREW - fan | 8 | ||
| 12 | NSS | PULLEY - crankshaft (use original, not supplied by TK) | 1 | |
| 13 | 108-2524 | PULLEY - crankshaft (compressor drive) | 1 | |
| 14 | 108-2286 | PIN - roll (3 x 26) | 2 | |
| 15 | 108-2530 | SCREW - pulley | 1 | |
| 108-1287 | SEALANT (Loctite 243) | A/R | ||
| 16 | 108-2697 | BRACKET - box | 1 | |
| 17 | NSS | BRACKET - box | 1 | |
| 18 | N/A | BOX (not supplied by Thermo King, see OEM) | 1 |
