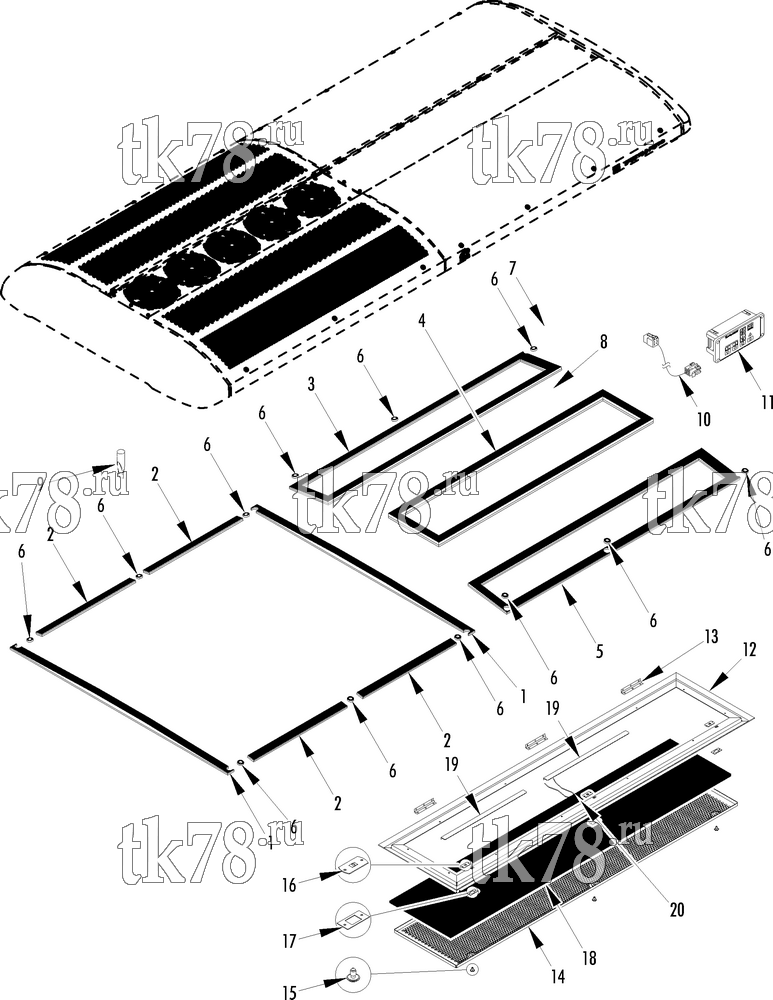

Установкa Thermo King схема UNIT GASKETS, DISPLAY, GRILLE & FILTER – 222F1
Обновление от: 5/21/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-4384 | GASKET - condenser, center | 1 | |
| 2 | 33-4385 | GASKET - condenser, side | 4 | |
| 3 | 33-4386 | GASKET - discharge (roadside) | 1 | |
| 4 | 33-4387 | GASKET - return air | 1 | |
| 5 | 33-4388 | GASKET - discharge (curbside) | 1 | |
| 33-3531 | STRIP - sealing (.38 in thk x 2.0 in wide) | A/R | ||
| 6 | 92-2763 | SPACER (1.50 in id, .380 in thk) | 12 | |
| 7 | 92-6294 | SPACER (1.50 in id, .625 in thk) | 12 | |
| 8 | 92-1451 | PLUG - button, black | 6 | |
| 9 | 66-1273 | VALVE - drain | 4 | |
| 10 | 41-6562 | HARNESS - display | 1 | |
| 41-4817 | CONNECTOR - liquid tite | 1 | ||
| 41-5359 | WASHER - sealing | 1 | ||
| 55-2635 | NUT - lock | 1 | ||
| 11 | 41-7199 | MODULE - display, standard | 1 | |
| 55-2977 | SCREW - module | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-2999 | NUT | 4 | ||
| 55-2012 | RIVET - hinge | 9 | ||
| 12 | 98-7112 | FRAME - return air grille | 1 | |
| 13 | 91-8903 | HINGE - frame | 3 | |
| 55-2012 | RIVET - hinge | 9 | ||
| 14 | 98-7113 | SCREEN - return air | 1 | |
| 91-7101 | BODY - latch | 3 | ||
| 92-4713 | FILTER (w/frame) | 1 | ||
| 15 | 55-9283 | SCREW - lock | 3 | |
| 55-7112 | WASHER - spl (0.255 id) | 3 | ||
| 16 | 55-2074 | NUT - speed | 3 | |
| 17 | 91-7625 | LOCKPLATE | 3 | |
| 55-2012 | RIVET - lockplate | 21 | ||
| 18 | 92-4674 | FOAM - reticulated | 1 | |
| 19 | 92-4675 | BRACKET - filter | 2 | |
| 20 | 91-9343 | CLIP - filter | 1 |
