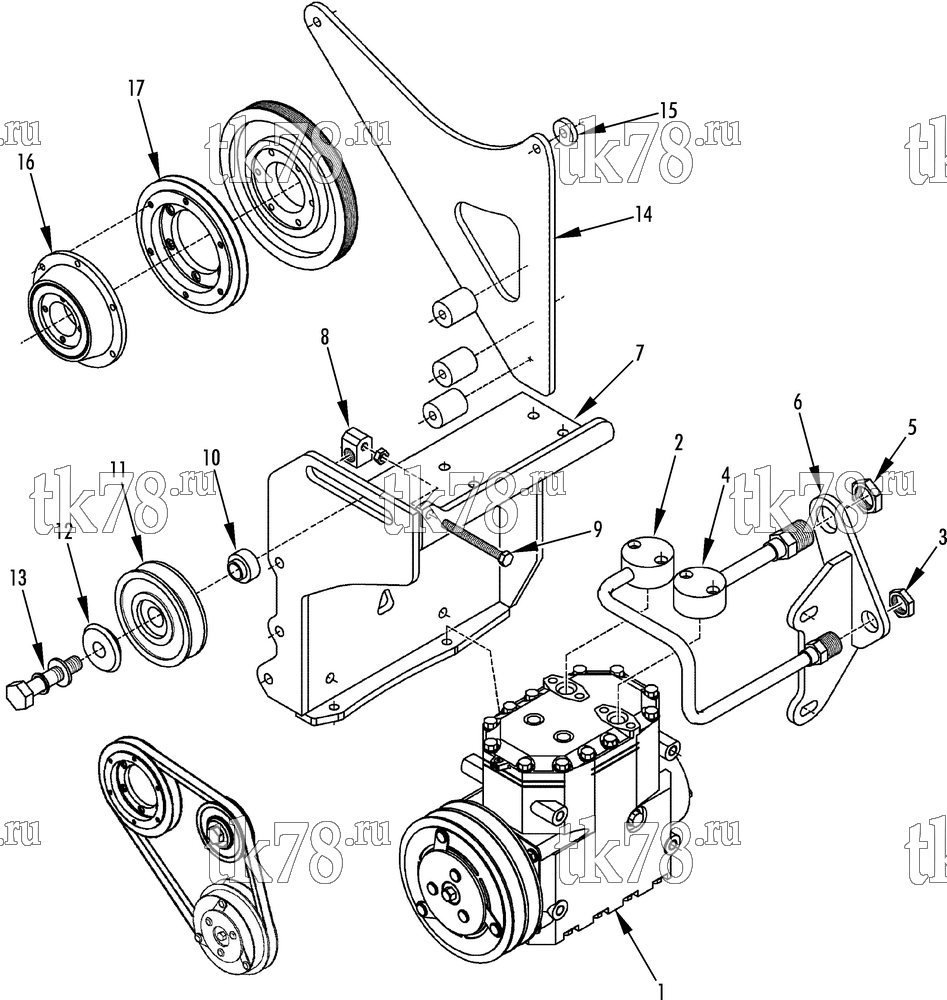

Установкa Thermo King схема DRIVE KIT (MAN TG-L, 12140828) – 221F4
Обновление от: 6/8/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1368 | SCREW - compressor (M8 x 40) | 2 | ||
| 108-1534 | FLATWASHER | 2 | ||
| 108-1536 | LOCKWASHER | 2 | ||
| 108-1386 | SCREW - compressor (M10 x 25) | 4 | ||
| 108-1540 | FLATWASHER | 4 | ||
| 108-1542 | LOCKWASHER | 4 | ||
| 2 | 108-2400 | TUBE - discharge | 1 | |
| 3 | 108-2402 | NUT - bulkhead (7/8) | 1 | |
| 4 | 108-2401 | TUBE - suction | 1 | |
| 5 | 108-2403 | NUT - bulkhead (1-1/16) | 1 | |
| 6 | 108-2406 | SUPPORT - tube | 1 | |
| 108-1386 | SCREW - support | 2 | ||
| 108-1542 | LOCKWASHER | 2 | ||
| 108-1541 | FLATWASHER | 2 | ||
| 7 | 108-2408 | BRACKET - compressor | 1 | |
| 108-2294 | SCREW - bracket (M10 x 45) | 2 | ||
| 108-1404 | SCREW - bracket (M10 x 80) | 3 | ||
| 108-1517 | NUT | 5 | ||
| 108-1540 | FLATWASHER | 5 | ||
| 8 | 108-2407 | SUPPORT - tensioner | 1 | |
| 9 | 108-2409 | SCREW - tensioner | 1 | |
| 108-1516 | NUT | 1 | ||
| 10 | 108-2410 | SPACER - idler | 1 | |
| 11 | 108-394 | PULLEY - idler | 1 | |
| 12 | 108-952 | SPACER | 1 | |
| 13 | 108-1466 | SCREW - pulley | 1 | |
| 108-1555 | FLATWASHER | 1 | ||
| 108-1556 | LOCKWASHER | 1 | ||
| 14 | 108-2399 | BRACKET - support | 1 | |
| 108-2404 | SCREW - bracket (M10 x 30) | 1 | ||
| 108-2405 | SCREW - bracket (M10 x 35) | 1 | ||
| 108-1545 | FLATWASHER | 2 | ||
| 15 | 108-2411 | SPACER | 1 | |
| 16 | NSS | HUB - fan (use original, not supplied by TK) | 1 | |
| 17 | 108-2412 | PULLEY - crankshaft | 1 | |
| NSS | SCREW - pulley & hub (use original, not supplied by TK) | 6 | ||
| 108-2648 | BELT | 1 |
