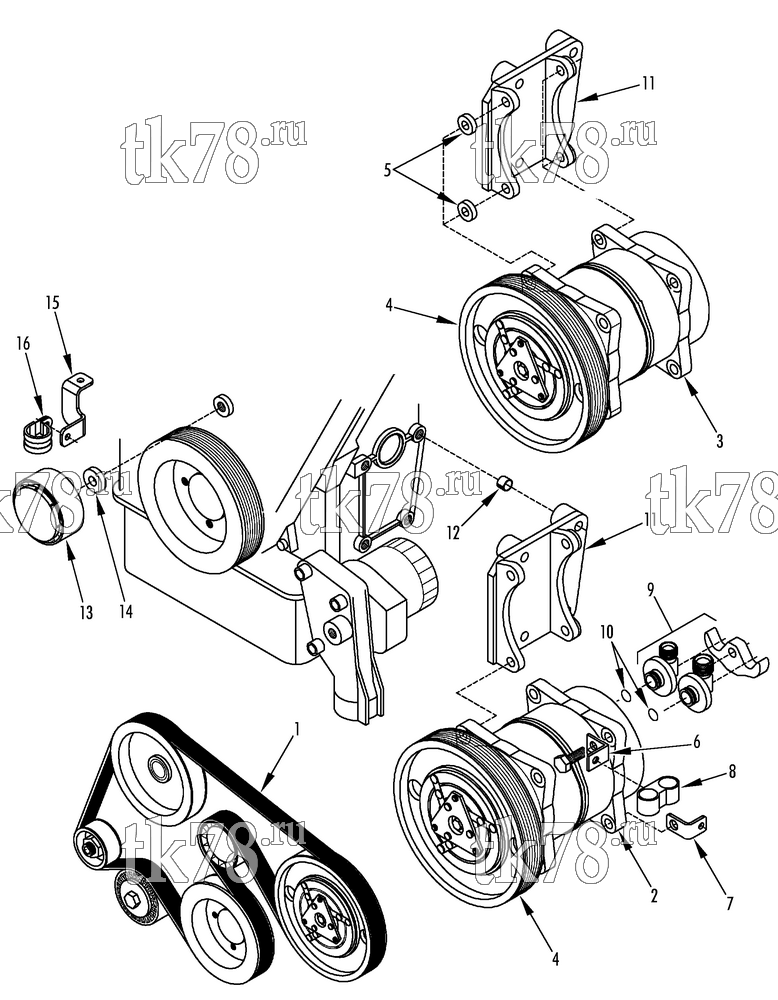

Установкa Thermo King схема DRIVE KIT (Fiat Doblo Cargo 1.9, 12140439) – 221E9
Обновление от: 2/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-248 | BELT (POLY-V 6PK) | 1 | |
| 2 | NSS | COMPRESSOR - TM08-HD (see compressor section) | 1 | |
| 3 | NSS | COMPRESSOR - TM13-HD (see compressor section) | 1 | |
| 4 | 108-2647 | COIL - clutch (120 L.S.) | 1 | |
| 108-1517 | NUT | 4 | ||
| 108-1391 | NUT | 4 | ||
| 5 | 108-1191 | SPACER - compressor (TM08-HD only) | 2 | |
| 6 | 108-748 | ANGLE | 1 | |
| 7 | 108-2389 | ANGLE | 1 | |
| 92-3835 | CLAMP | 1 | ||
| 108-1517 | NUT | 2 | ||
| 108-1388 | SCREW - angle | 2 | ||
| 8 | NSS | CLAMP (not supplied by TK) | 1 | |
| 9 | 108-1234 | CONNECTOR - compressor (horizontal) | 1 | |
| 10 | 33-566 | O-RING - fitting | 2 | |
| 108-1498 | SCREW - fitting | 1 | ||
| 11 | 108-504 | BRACKET - compressor | 1 | |
| 108-1394 | SCREW - bracket | 4 | ||
| 108-1545 | FLATWASHER | 4 | ||
| 12 | 108-947 | SPACER - bracket | 2 | |
| 13 | 108-397 | PULLEY - idler (back) | 1 | |
| 108-1498 | SCREW - pulley | 1 | ||
| 108-1545 | LOCKWASHER | 1 | ||
| 14 | 108-1114 | SPACER - pulley | 1 | |
| 15 | 108-2390 | SUPPORT - clamp | 1 | |
| 108-1513 | NUT | 2 | ||
| 108-1355 | NUT | 2 | ||
| 16 | 92-1903 | CLAMP | 1 |
