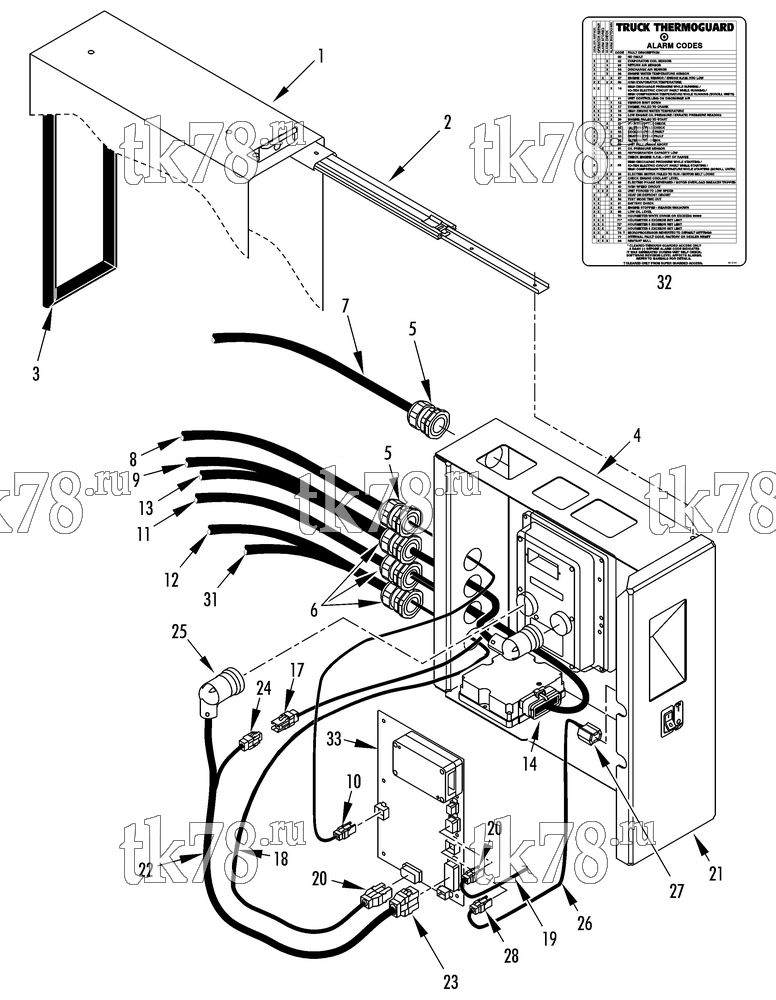

Установкa Thermo King схема CONTROL BOX – 221E7
Обновление от: 11/29/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7747 | BOX - control | 1 | |
| 2 | 92-526 | SLIDE - control box | 2 | |
| 55-3443 | SCREW - slide | 16 | ||
| 55-2201 | FLATWASHER | 32 | ||
| 55-4223 | NUT | 16 | ||
| 3 | 33-3274 | GASKET - control box | 1 | |
| 4 | NSS | LOW VOLTAGE TRAY (see 161A5) | 1 | |
| 5 | 55-5885 | CONNECTOR - cable | 2 | |
| 6 | 55-5112 | CONNECTOR - cable | 3 | |
| 7 | 41-7790 | HARNESS - motor | 1 | |
| 44-9891 | PIN | 3 | ||
| 44-2793 | TERMINAL | 1 | ||
| 8 | 41-7709 | HARNESS - engine | 1 | |
| 9 | 41-7789 | HARNESS - sensor | 1 | |
| 41-5633 | HARNESS - sensor (units w/DAS) | 1 | ||
| 44-9928 | PIN | A/R | ||
| 10 | 41-744 | PLUG - sensor harness | 1 | |
| 41-225 | STRAIN RELIEF - connector (19-pin) | 1 | ||
| 55-7618 | CLAMP - strain relief | 1 | ||
| 11 | 41-7708 | HARNESS - evaporator | 1 | |
| 12 | 41-7791 | HARNESS - high voltage | 1 | |
| 13 | 41-7710 | HARNESS - DAS | 1 | |
| 14 | 41-3359 | CONNECTOR - plug (35-pin, female, DAS) | 1 | |
| 15 | 41-3739 | HARNESS - battery | 1 | |
| 16 | 41-5574 | HARNESS - remote cab box | 1 | |
| 17 | 41-2247 | RECEPTACLE - battery harness (6-pin) | 1 | |
| 41-1945 | STRAIN RELIEF - connector (6-pin) | 1 | ||
| 18 | 41-7788 | HARNESS - condenser | 1 | |
| 19 | 41-7589 | HARNESS - ac control | 1 | |
| 20 | 41-2319 | CONNECTOR - receptacle (12-pin) | 1 | |
| 41-1952 | STRAIN RELIEF - connector (12 position) | 1 | ||
| 21 | NSS | PANEL - front (see 162A2) | 1 | |
| 22 | 41-3738 | HARNESS - interconnecting | 1 | |
| 23 | 41-1946 | RECEPTACLE (36-pin) | 1 | |
| 41-1947 | STRAIN RELIEF - connector (36-pin) | 1 | ||
| 24 | 41-3882 | PLUG (6-pin) | 1 | |
| 41-1945 | STRAIN RELIEF - connector (6-pin) | 1 | ||
| 41-182 | PIN | A/R | ||
| 44-8539 | SOCKET | A/R | ||
| 25 | 41-745 | PLUG (37-pin) | 1 | |
| 41-225 | STRAIN RELIEF - connector (19-pin) | 1 | ||
| 55-7618 | CLAMP - strain relief | 1 | ||
| 26 | 41-7590 | HARNESS - switch | 1 | |
| 27 | 41-4644 | SWITCH - on/off | 1 | |
|
10-41-4474 | Выключатель основной, MD/TS-Series | 13 860 ₽ |
|
| 28 | 41-2321 | CONNECTOR (9-pin) | 1 | |
| 41-1950 | STRAIN RELIEF - connector (9 position) | 1 | ||
| 29 | 41-3742 | HARNESS - monitor | 1 | |
| 30 | 41-3883 | CONNECTOR (6-pin) | 1 | |
| 31 | 41-8070 | HARNESS - condenser | 1 | |
| 32 | 92-5140 | NAMEPLATE - Alarm | 1 | |
| 33 | 45-2219 | BOARD - pc (see 209c1) | 1 |
