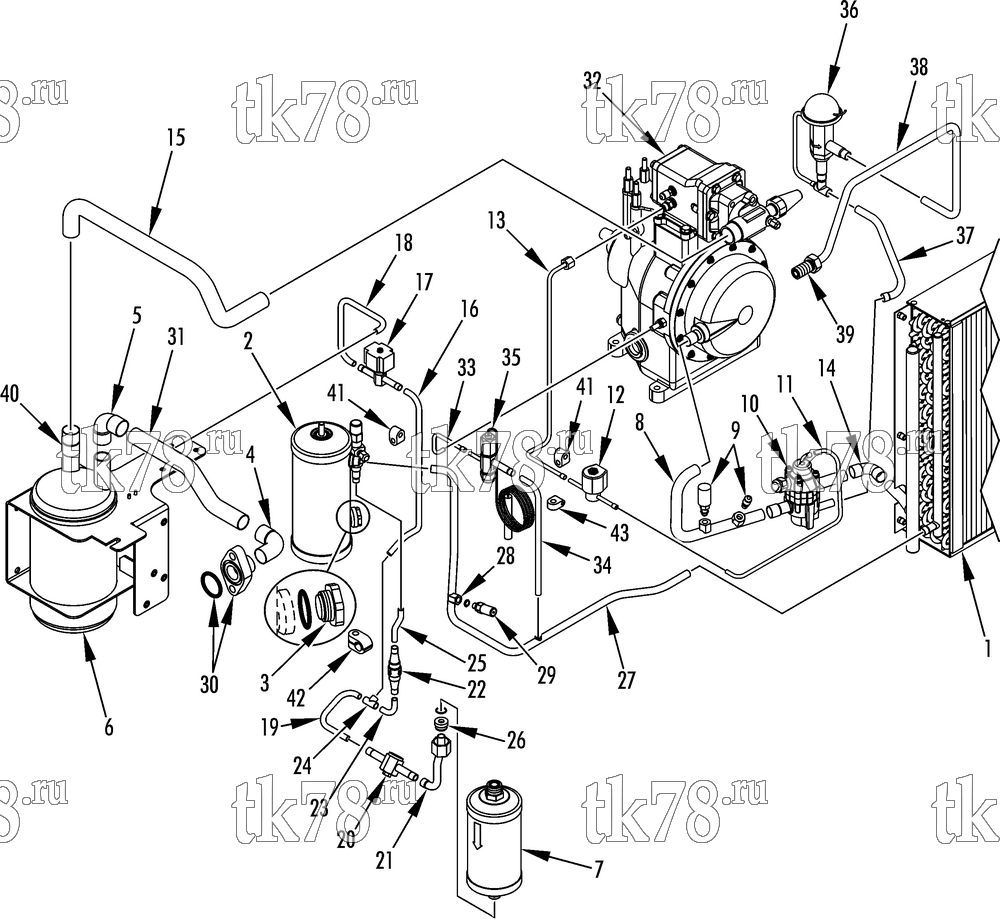

Установкa Thermo King схема CONDENSER REFRIGERATION COMPONENTS – 221E5
Обновление от: 11/17/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2290 | COIL - condenser/radiator (before 10/07, see 221E2) | 1 | |
| 67-2497 | COIL - condenser/radiator (10/07 & after, see 221E2) | 1 | ||
| 2 | 67-1180 | TANK - receiver | 1 | |
| 3 | 66-9918 | INDICATOR - liquid | 1 | |
| 33-2419 | O-RING | 1 | ||
| 55-289 | NUT - tank | 2 | ||
| 51-1625 | WASHER - special | 2 | ||
| 4 | 55-3310 | ELBOW | 1 | |
| 5 | 55-3682 | ELBOW | 1 | |
| 6 | 67-2289 | TANK - accumulator | 1 | |
| 55-5022 | SCREW - tank | 5 | ||
| 55-7069 | FLATWASHER | 8 | ||
| 55-7727 | LOCKWASHER | 2 | ||
| 55-4621 | NUT | 2 | ||
| 7 | 61-600 | DEHYDRATOR (see 221E6) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 8 | 61-3929 | TUBE - discharge | 1 | |
| 66-6996 | FITTING - saddle | 2 | ||
| 9 | 41-3846 | SWITCH - high pressure cutout | 1 | |
| 11-2886 | VALVE | 1 | ||
| 10 | 66-9896 | VALVE - 3-way (see 153F10) | 1 | |
| 55-3618 | SCREW - 3-way valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 11 | 61-3931 | TUBE - pilot to 3-way valve | 1 | |
| 12 | 66-7636 | VALVE - pilot | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 13 | 61-4802 | TUBE - compressor to pilot valve | 1 | |
| 14 | 55-2244 | ELBOW | 1 | |
| 15 | 61-3936 | TUBE - accumulator to suction valve | 1 | |
| 16 | 61-3943 | TUBE - tee to valve | 1 | |
| 17 | 61-283 | VALVE - solenoid (thermax, see 125C10) | 1 | |
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 18 | 61-3935 | TUBE - valve to tee | 1 | |
| 19 | 61-3939 | TUBE - receiver to indicator | 1 | |
| 20 | 66-1296 | INDICATOR - liquid | 1 | |
| 21 | 61-3940 | TUBE - indicator to check valve | 1 | |
| 22 | 66-5763 | VALVE - check | 1 | |
| 23 | 61-3941 | TUBE - check valve to tee | 1 | |
| 24 | 55-3251 | TEE | 1 | |
| 25 | 61-3942 | TUBE - tee to dehydrator | 1 | |
| 26 | 55-6396 | NUT - shoulder | 1 | |
| 55-6839 | SHOULDER - o-ring | 1 | ||
| 27 | 61-3944 | TUBE - condenser to receiver tank | 1 | |
| 28 | 55-3295 | FITTING - saddle | 1 | |
| 29 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 30 | 66-2847 | FLANGE - suction | 1 | |
| 33-728 | O-RING | 1 | ||
| 33-728 OEM | Прокладка фланца компрессора, SB/URD-III / UT-800/1200 | 300 ₽ |
|
|
| 31 | 61-3934 | TUBE - inlet | 1 | |
| 32 | NSS | COMPRESSOR (see 221B3) | 1 | |
| 33 | 61-3933 | TUBE - valve to compressor | 1 | |
| 34 | 61-3932 | TUBE - valve to condenser | 1 | |
| 35 | 61-2727 | VALVE - desuperheater | 1 | |
| 36 | 61-190 | VALVE - dpr | 1 | |
| 92-6142 | CLAMP - dpr valve | 1 | ||
| 55-5932 | SCREW - clamp | 2 | ||
| 37 | 61-3938 | TUBE - solenoid to dpr | 1 | |
| 38 | 61-3970 | TUBE - dpr to bulkhead adapter | 1 | |
| 39 | 55-6779 | ADAPTER - bulkhead | 1 | |
| 55-6393 | NUT - adapter (13/16) | 1 | ||
| 33-566 | O-RING (1/2 id) | 1 | ||
| 40 | 66-455 | COUPLING | 1 | |
| 41 | 55-6544 | CLAMP - tube (.343 tube od) | 8 | |
| 55-8464 | SCREW - clamp | 5 | ||
| 55-6995 | FLATWASHER | 5 | ||
| 42 | 55-6388 | CLAMP - tube (.436 tube od) | 3 | |
| 43 | 55-7471 | CLAMP - tube (.590 tube od) | 1 |
