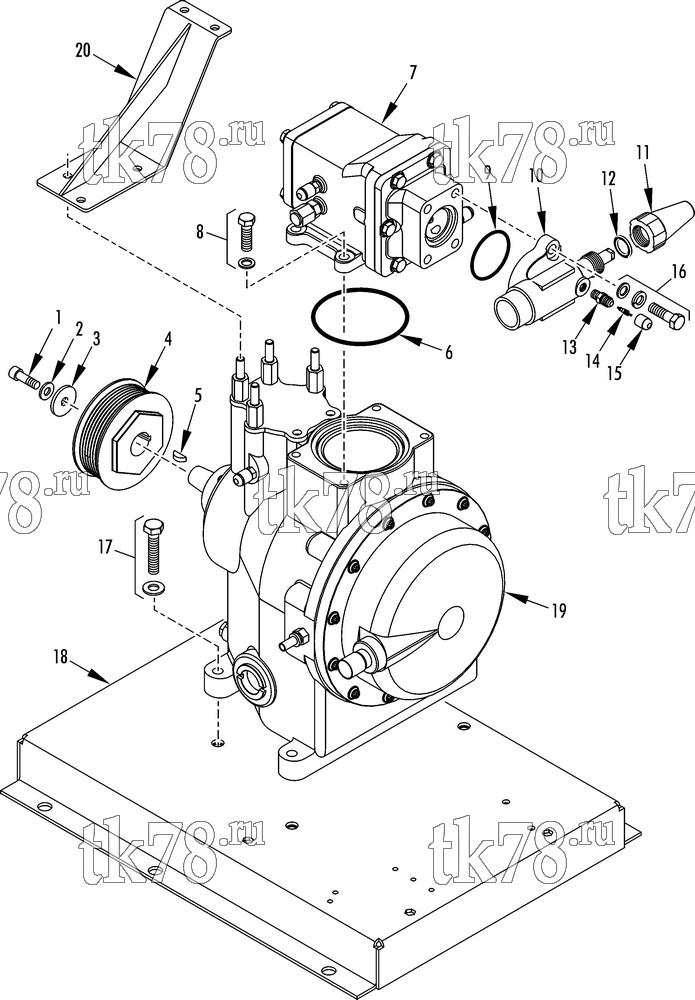

Установкa Thermo King схема COMPRESSOR GROUP – 221B3
Обновление от: 4/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-1769 | SCREW - pulley | 1 | |
| 2 | 55-8423 | WASHER - belleville | 1 | |
| 3 | 55-4923 | WASHER | 1 | |
| 4 | 77-2633 | PULLEY - compressor | 1 | |
| 5 | 55-5371 | KEY - pulley | 1 | |
| 6 | 33-1221 | O-RING - throttling valve | 1 | |
|
10-33-1221 | О-ринг под клапан - регулятор давления | 280 ₽ |
|
| 7 | 61-2462 | VALVE - throttling (38 psi, see 139E9) | 1 | |
| 8 | 55-129 | SCREW - valve | 4 | |
| 55-896 | FLATWASHER | 4 | ||
| 9 | 33-230 | O-RING - suction valve (1.875 id) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 10 | 66-5492 | VALVE - suction | 1 | |
| 11 | 66-3015 | CAP - valve (brass, incl gasket) | 1 | |
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| 12 | 33-350 | GASKET - cap | 1 | |
| 13 | 11-2886 | VALVE - access | 1 | |
| 14 | 11-7777 | CORE - valve | 1 | |
| 15 | 55-5672 | CAP - valve | 1 | |
| 16 | 55-2683 | SCREW - valve | 2 | |
| 55-2363 | LOCKWASHER | 2 | ||
| 55-896 | FLATWASHER | 2 | ||
| 17 | 55-5589 | SCREW - compressor | 4 | |
| 55-7072 | FLATWASHER | 4 | ||
| 55-9439 | WASHER - retainer | 4 | ||
| 91-9469 | BOLTSTRIP | 4 | ||
| 18 | 98-7745 | BRACKET - compressor | 1 | |
| 55-8471 | NUT - bracket | 4 | ||
| 55-5914 | FLATWASHER | 16 | ||
| 19 | 102-950 | COMPRESSOR - scroll (see 169F3) | 1 | |
| 203-516 | OIL - compressor (1 liter) | A/R | ||
| 20 | 92-8141 | BRACKET - compressor | 1 | |
| 55-5022 | SCREW - bracket to frame | 2 | ||
| 55-7727 | LOCKWASHER - bracket to frame | 4 | ||
| 55-7069 | FLATWASHER - bracket to frame | 2 | ||
| 55-4621 | NUT - bracket to frame | 2 | ||
| 55-7342 | LOCKWASHER - compressor | 4 | ||
| 55-7085 | FLATWASHER - compressor | 4 | ||
| 55-2114 | NUT - compressor | 4 |
