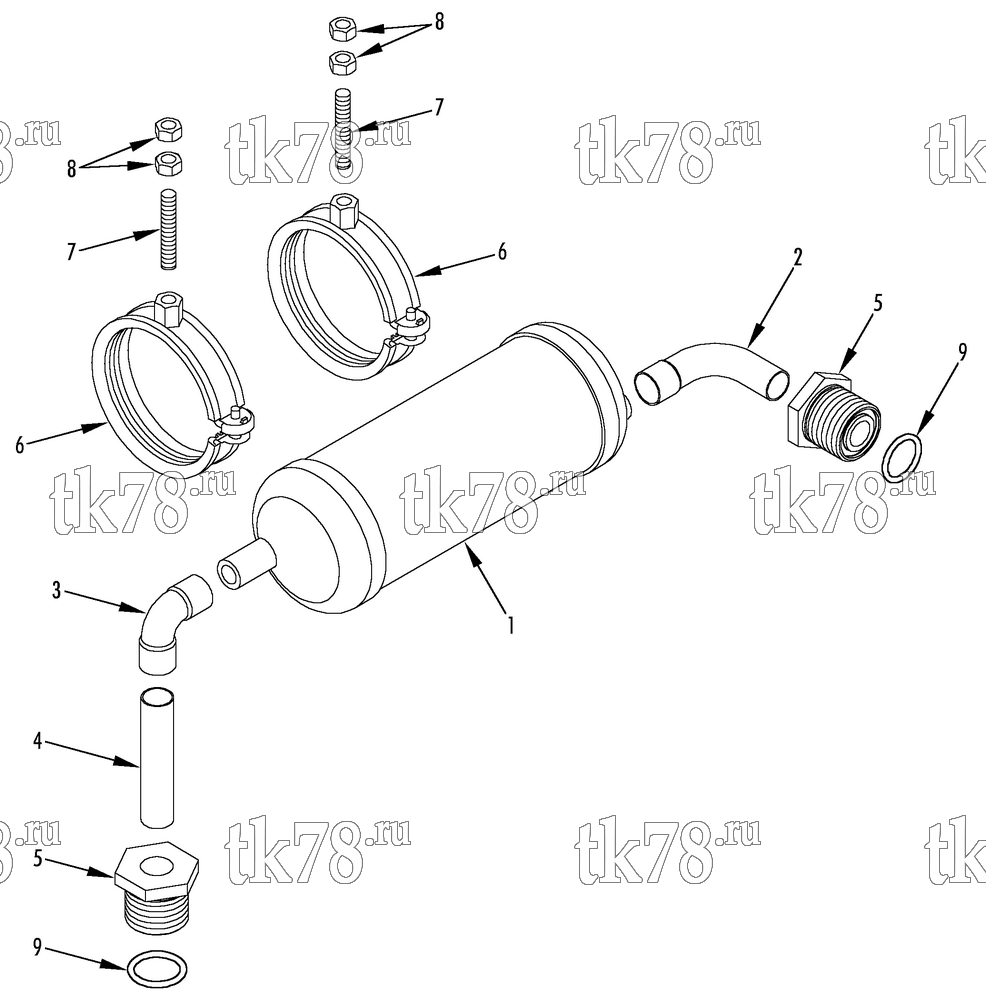

Установкa Thermo King схема COMPRESSOR MUFFLER GROUP – 220H2
Обновление от: 1/31/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-9201 | MUFFLER - assembly | 1 | |
| 55-4621 | NUT - hex (M8 x 1.25) | 1 | ||
| 2 | 61-3919 | TUBE - muffler, inlet | 1 | |
| 3 | 66-637 | ELBOW (7/8 sld x 7/8 sld) | 1 | |
| 4 | 61-3920 | TUBE - muffler (4.0 in lg) | 1 | |
| 5 | 51-1484 | ADAPTER - bhd (#20 ORS) | 2 | |
| 6 | NSS | CLAMP (Bus OEM supplied) | 2 | |
| 7 | NSS | PIN - threaded (Bus OEM supplied) | 2 | |
| 8 | NSS | NUT (M10, Bus OEM supplied) | 4 | |
| 9 | 33-1777 | O-RING (1-3/16 od) | 2 |
