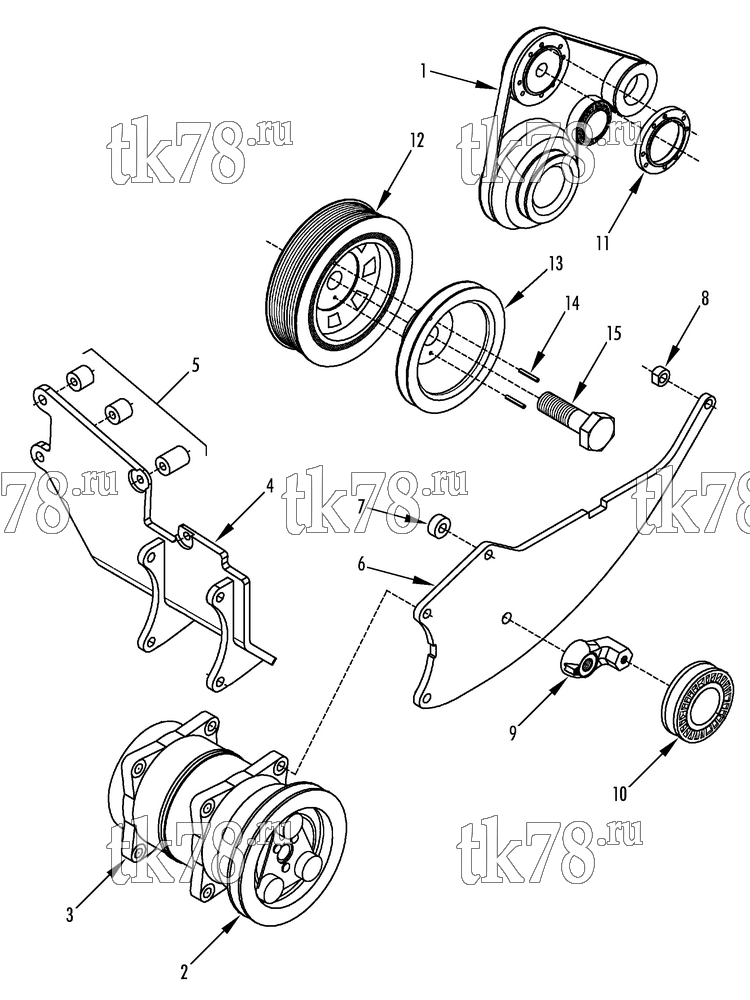

Установкa Thermo King схема DRIVE KIT (Iveco Daily .14/.17, 12140443) – 220C9
Обновление от: 5/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-149 | BELT - compressor | 1 | |
| 2 | 108-1294 | CLUTCH (150 dia) | 1 | |
| 3 | NSS | COMPRESSOR (see compressor section) | 1 | |
| 108-1391 | SCREW - compressor (M10 x 40) | 2 | ||
| 108-1395 | SCREW - compressor (M10 x 50) | 2 | ||
| 108-1517 | NUT | 4 | ||
| 4 | 108-2278 | SUPPORT - compressor | 1 | |
| 108-1375 | SCREW - support (M10 x 75) | 1 | ||
| 108-1540 | FLATWASHER (M10) | 2 | ||
| 108-1375 | SCREW - support (M8 x 75) | 1 | ||
| 108-2361 | SCREW - support (M8 x 85) | 1 | ||
| 108-1539 | LOCKWASHER (M8) | 2 | ||
| 5 | 108-2360 | SPACER (set of 3) | 1 | |
| 6 | 108-2310 | SUPPORT - compressor | 1 | |
| 108-2288 | SCREW - support | 2 | ||
| 108-1540 | FLATWASHER | 2 | ||
| 108-1545 | LOCKWASHER | 2 | ||
| 7 | 108-2284 | SPACER (9 mm) | 1 | |
| 8 | 108-2285 | SPACER (9 mm) | 1 | |
| 9 | 108-910 | IDLER - eccentric | 1 | |
| 108-1417 | SCREW - idler | 1 | ||
| 108-1550 | LOCKWASHER | 1 | ||
| 10 | 108-1672 | PULLEY - idler | 1 | |
| 108-1365 | SCREW - idler pulley | 1 | ||
| 108-1539 | LOCKWASHER | 1 | ||
| 11 | 108-965 | SPACER - fan | 1 | |
| 108-1356 | SCREW - fan | 8 | ||
| 12 | NSS | PULLEY - crankshaft (use original, not supplied by TK) | 1 | |
| 13 | 108-2263 | PULLEY - compressor | 1 | |
| 14 | 108-2286 | PIN - roll (3 x 26) | 2 | |
| 15 | 108-1251 | SCREW - pulley | 1 | |
| 108-1287 | SEALANT (Loctite 243) | A/R |
