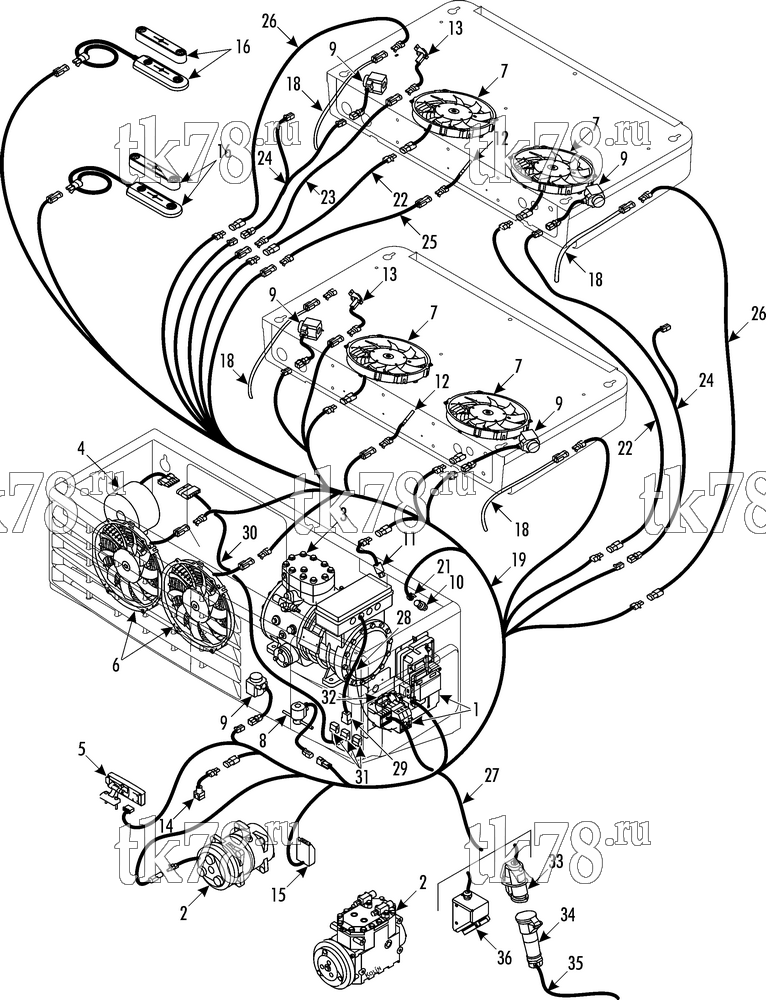

Установкa Thermo King схема ELECTRICAL COMPONENTS (V-500 20/50 3PH) – 219F2
Обновление от: 5/31/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROL BOX (see 219F5) | 1 | |
| 2 | 102-842 | COMPRESSOR (TM-16 XD, 12 V, see 133F14) | 1 | |
|
10-TM-16 | Компрессор, TM-16, 12V 2A, R134A/R404A | 22 740 ₽ |
|
| 102-843 | COMPRESSOR (TM-16 XD, 24 V, see 133F14) | 1 | ||
|
10-TM-16-24 | Компрессор, TM-16, 24V 2A, R134A/R404A | 22 740 ₽ |
|
| 102-799 | COMPRESSOR (TK312R, 12 V, see 200A7) | 1 | ||
| 102-824 | COMPRESSOR (TK312R, 24 V, see 200A7) | 1 | ||
| 3 | 102-832 | COMPRESSOR (400/3/50, D 2 13 Y) | 1 | |
| 102-858 | COMPRESSOR (230/3/60, TSA, see 210C1) | 1 | ||
| 102-833 | COMPRESSOR (380/3/50, D 2 11 Y) | 1 | ||
| 4 | 41-7943 | TRANSFORMER (see 219F6) | 1 | |
| 5 | 45-2072 | CONTROLLER - in-cab (see 191A6) | 1 | |
| 6 | 78-1375 | FAN - condenser (12 V) | 2 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 690 ₽ |
|
|
| 78-1376 | FAN - condenser (24 V) | 2 | ||
|
10-78-1376 | Вентилятор конденсатора 24V, V-Series | 11 710 ₽ |
|
|
PP-78-1376 | Вентилятор конденсатора 24V, V-Series | 4 530 ₽ |
|
| 55-7340 | SCREW - condenser | 8 | ||
| 55-7404 | LOCKWASHER | 8 | ||
| 55-9826 | WASHER | 8 | ||
| 7 | 78-1373 | FAN - evaporator (12 V) | 4 | |
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| 78-1374 | FAN - evaporator (24V) | 4 | ||
| 10-78-1374 | Вентилятор испарителя 24V, V/C-Series | 9 820 ₽ |
|
|
|
PP-78-1374 | Вентилятор испарителя 24V, V/C-Series | 5 470 ₽ |
|
| 8 | 66-7636 | VALVE - solenoid (12 V) | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 61-2520 | VALVE - solenoid (24 V) | 1 | ||
|
61-2520 OEM | Клапан с катушкой 24V, V-Series | 28 690 ₽ |
|
| 9 | 41-5789 | COIL - solenoid (12 V) | 5 | |
| 41-5791 | COIL - solenoid (14 V) | 5 | ||
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 760 ₽ |
|
| PP-41-5791 | Катушка соленоида 24V, V-Series | 1 830 ₽ |
|
|
| 10 | 41-5781 | TRANSDUCER | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 11 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 12 | 41-5784 | SENSOR - temperature | 2 | |
| 42-3067 OEM | Датчик температуры, V/C-Series | 13 780 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V/C-Series | 9 420 ₽ |
|
|
| 13 | 41-3136 | SWITCH - defrost | 2 | |
| 14 | 44-9020 | SWITCH - thermo (jet cool) | 1 | |
| 15 | 41-5785 | HOLDER - fuse | 1 | |
| 41-3666 | FUSE (60 amp) | 1 | ||
| 44-2792 | TERMINAL (yellow, 10) | 2 | ||
| 41-7856 | TERMINAL (yellow, dia 8/13) | 2 | ||
| 16 | 40-907 | SWITCH - magnetic | 2 | |
| 51-792 | SCREW - switch & magnet | 8 | ||
| 18 | 41-9627 | HEATER - drain tube (12V) | 4 | |
| 41-3156 | HEATER - drain tube (24 V) | 4 | ||
| 19 | 41-7863 | HARNESS - condenser (for connector see 115D14, 112D9) | 1 | |
| 20 | 41-5804 | CONNECTOR (5-pin) | 1 | |
| 41-5805 | RETAINER | 1 | ||
| 21 | 41-5799 | CONNECTOR (female, 3 way) | 1 | |
| 22 | 41-7858 | HARNESS - extension (evap fan) | 2 | |
| 23 | 41-7859 | HARNESS - extension (defrost termination switch) | 1 | |
| 24 | 41-7860 | HARNESS - extension (solenoid) | 2 | |
| 25 | 41-7861 | HARNESS - extension (sensor) | 1 | |
| 26 | 41-7862 | HARNESS - extension (sensor) | 2 | |
| 27 | 41-6032 | CABLE - mains (power, socket to unit, 50Hz) | 1 | |
| 41-6032 | CABLE - mains (power, socket to unit, 60Hz) | 1 | ||
| 28 | 41-7635 | CABLE - power | 1 | |
| 29 | 41-928 | CONNECTOR (female, 4 way) | 1 | |
| 30 | 41-7864 | CABLE - control box (for connectors see 115D14) | 1 | |
| 31 | 41-905 | CONNECTOR (male, 4 way) | 3 | |
| 32 | 41-7865 | CABLE - control box | 1 | |
| 33 | 41-978 | RECEPTACLE - power (380/3/50, mates w/ 41-2026) | 1 | |
| 41-8941 | RECEPTACLE - power (400/3/50 - 5 pole, mates w/ 41-8942) | 1 | ||
| 55-9502 | SCREW - plug | 4 | ||
| 34 | 41-2026 | PLUG - power (380/3/50, mates w/ 41-978) | 1 | |
| 41-8942 | PLUG - power (400/3/50 - 5 pole, mates w/ 41-8941) | 1 | ||
| 35 | 41-7866 | CABLE (4 x 2.5, 1 kV) | AR | |
| 51-827 | NUT (PG-6) | 1 | ||
| 51-826 | BOX - packing (PG-16) | 1 | ||
| 33-4392 | SEAL - rubber (PG-16) | 1 | ||
| 92-1501 | CLAMP | 2 | ||
| 36 | NSS | BOX - power (TSA, see 200F4) | 1 |
