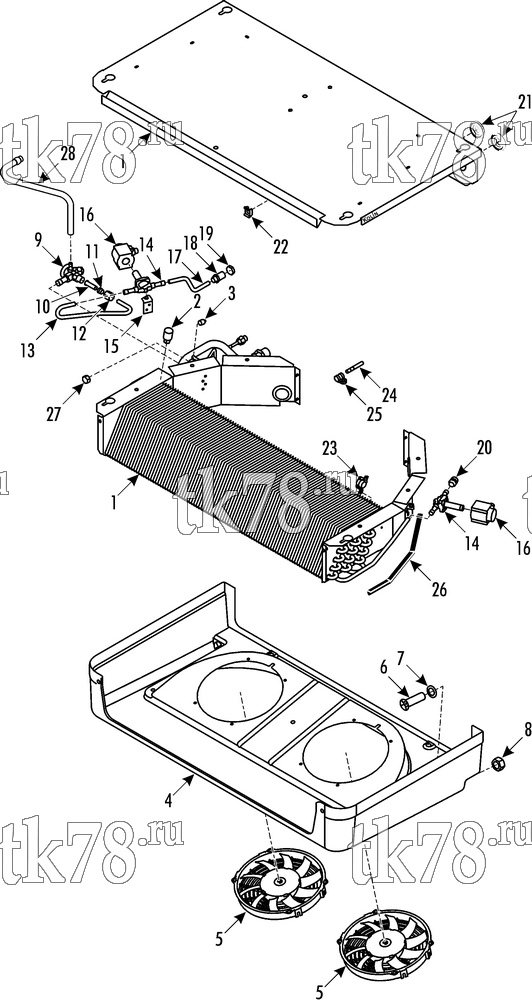

Установкa Thermo King схема EVAPORATOR COMPONENTS (ES300) – 219E2
Обновление от: 12/1/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2441 | COIL - evaporator | 1 | |
| 33-1461 | O-RING (5/16 id, #4) | 2 | ||
| 33-2115 | O-RING (5/8 id, #10) | 1 | ||
| 33-1222 | O-RING (3/4 id, #12) | 1 | ||
| 2 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 3 | 61-468 | CAP - service port valve | 1 | |
| 4 | 98-7891 | COVER - evaporator | 1 | |
| 51-1808 | RIVET - cover (unscrewing) | 8 | ||
| 55-9492 | WASHER - cosmetic | 2 | ||
| 55-9491 | CAP - cosmetic | 2 | ||
| 5 | 78-1373 | FAN (12 V) | 2 | |
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| 78-1374 | FAN (24V) | 2 | ||
| 10-78-1374 | Вентилятор испарителя 24V, V/C-Series | 9 820 ₽ |
|
|
|
PP-78-1374 | Вентилятор испарителя 24V, V/C-Series | 5 670 ₽ |
|
| 55-7407 | SCREW - fan | 8 | ||
| 55-9826 | WASHER - fender | 16 | ||
| 55-7404 | LOCKWASHER | 8 | ||
| 55-7367 | NUT | 8 | ||
| 6 | 92-3466 | TUBE - drain | 2 | |
| 7 | 51-791 | WASHER | 2 | |
| 8 | 51-790 | NUT - tube | 2 | |
| 9 | 66-9314 | VALVE - expansion | 1 | |
|
66-9314 OEM | ТРВ, V/VM-Series MAX (R404A) | 31 890 ₽ |
|
| 203-534 | TAPE - insulating | A/R | ||
| 10 | 61-1416 | FILTER - expansion valve | 1 | |
| 11 | 55-9291 | SHOULDER | 1 | |
| 12 | 51-344 | NUT - tube | 1 | |
| 13 | 61-3998 | TUBE - expansion valve | 1 | |
| 14 | 66-7878 | VALVE - solenoid | 2 | |
| 55-8720 | SCREW - valve | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 15 | 92-3465 | SUPPORT - solenoid | 1 | |
| 55-9898 | RIVET - support | 2 | ||
| 16 | 41-5789 | COIL - solenoid (12 V) | 2 | |
| 41-5791 | COIL - solenoid (24 V) | 2 | ||
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 200 ₽ |
|
| 17 | 61-3999 | TUBE - evaporator to solenoid | 1 | |
| 18 | 61-434 | FITTING | 1 | |
| 33-1015 | O-RING (3/8 id) | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 19 | 55-9836 | NUT | 1 | |
| 20 | 55-9922 | ADAPTER | 1 | |
| 33-1015 | O-RING (3/8 id) | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 21 | 33-3135 | GROMMET | 4 | |
| 22 | 55-8212 | HOLDER - bandwrap | 3 | |
| 55-9915 | RIVET | 3 | ||
| 23 | 41-3136 | SWITCH - defrost | 1 | |
| 51-2071 | SCREW - switch | 2 | ||
| 24 | 41-5784 | SENSOR - temperature | 1 | |
| 42-3067 OEM | Датчик температуры, V-Series | 12 360 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V-Series | 9 420 ₽ |
|
|
| 25 | 55-9825 | CLAMP - sensor | 1 | |
| 55-9452 | SCREW - clamp | 1 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7861 | LOCKWASHER | 1 | ||
| 55-7698 | NUT | 1 | ||
| 26 | 33-3925 | RUBBER - shape | A/R | |
| 33-4390 | TAPE - pvc film | A/R | ||
| 33-4391 | TAPE - aluminum foil | A/R | ||
| 55-2330 | BANDWRAP (1.75 dia, black) | A/R | ||
| 55-2332 | BANDWRAP (0.75 dia, black) | A/R | ||
| 27 | 51-913 | CAP (#4) | 1 | |
| 28 | 61-4878 | TUBE - equalizer | 1 |
