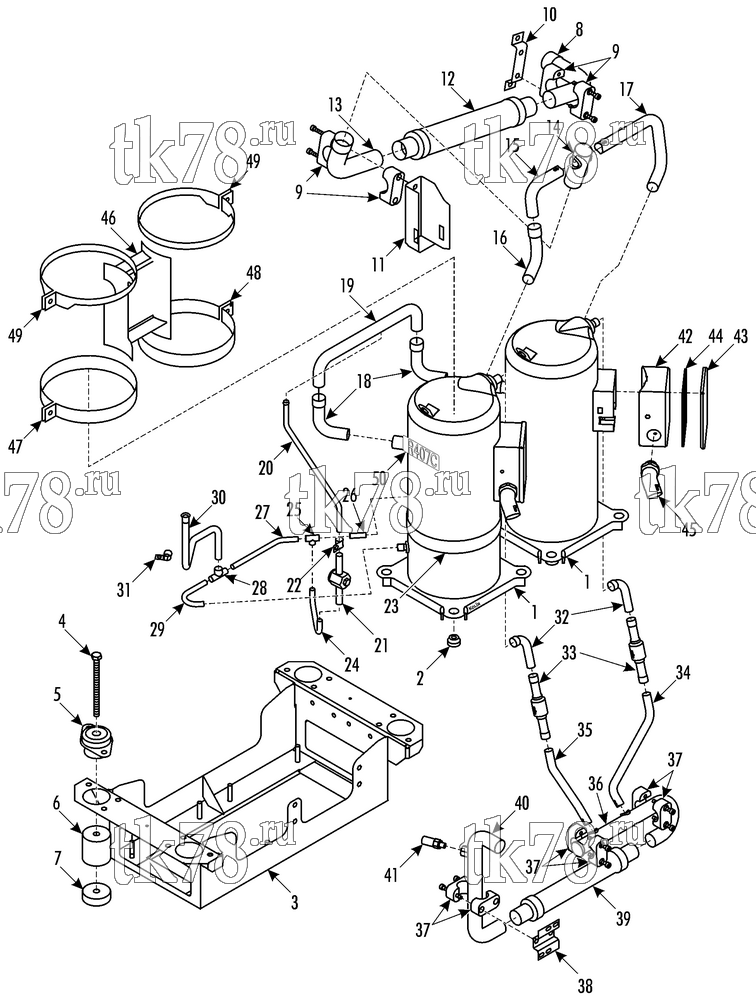

Установкa Thermo King схема COMPRESSOR SECTION – 219B2
Обновление от: 6/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-829 | COMPRESSOR - scroll | 2 | |
| 55-7825 | NUT - compressor base | 8 | ||
| 55-7066 | LOCKWASHER | 8 | ||
| 55-4931 | WASHER | 8 | ||
| 2 | 309-3207 | PAD - compressor | 8 | |
| 3 | 98-6260 | BASE - compressor | 1 | |
| 4 | 51-111 | SCREW - base to frame | 4 | |
| 55-7347 | LOCKWASHER | 4 | ||
| 55-8536 | FLATWASHER | 4 | ||
| 5 | 11-9626 | ISOLATOR | 4 | |
| 55-7341 | SCREW - isolator | 8 | ||
| 55-6988 | FLATWASHER | 8 | ||
| 55-7066 | LOCKWASHER | 8 | ||
| 55-7825 | NUT | 8 | ||
| 6 | 92-1844 | SPACER - compressor to frame | 4 | |
| 7 | 92-1954 | SPACER - compressor to frame | 4 | |
| 8 | 61-1002 | TUBE - evaporator to eliminator | 1 | |
| 9 | 55-6020 | CLAMP - tube | 4 | |
| 305-1656 | SCREW - clamp | 4 | ||
| 10 | 92-786 | BRACKET - tube | 1 | |
| 51-290 | NUT - captive | 4 | ||
| 55-6994 | SCREW - bracket | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 11 | 92-5918 | BRACKET - tube | 1 | |
| 55-9553 | NUT - captive | 2 | ||
| 12 | 306-1395 | ELIMINATOR - vibration (suction) | 1 | |
| 13 | 61-3723 | TUBE - suction | 1 | |
| 14 | 61-1465 | TUBE - suction | 1 | |
| 15 | 61-1467 | TUBE - suction | 1 | |
| 16 | 61-1637 | TUBE - suction | 1 | |
| 17 | 61-1466 | TUBE - suction | 1 | |
| 18 | 61-1008 | TUBE - gas equalizer | 2 | |
| 19 | 61-1468 | TUBE - gas equalizer | 1 | |
| 20 | 61-1469 | TUBE - oil fill | 1 | |
| 21 | 66-1296 | INDICATOR - liquid | 1 | |
| 22 | 55-2240 | CLAMP - indicator | 1 | |
| 23 | 309-3211 | BAND | 1 | |
| 55-7341 | SCREW - band | 1 | ||
| 55-8836 | WASHER - square | 2 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 55-7825 | NUT | 1 | ||
| 24 | 61-1470 | TUBE - oil fill | 1 | |
| 25 | 55-3251 | TEE | 1 | |
| 26 | 61-1471 | TUBE - oil fill | 1 | |
| 27 | 61-1472 | TUBE - oil fill | 1 | |
| 28 | 55-6222 | TEE | 1 | |
| 29 | 61-1473 | TUBE - oil fill | 1 | |
| 30 | 61-1474 | TUBE - oil inlet | 1 | |
| 31 | 55-3065 | CLAMP - tube | 1 | |
| 55-6994 | SCREW - clamp | 1 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 55-8893 | FLATWASHER | 1 | ||
| 55-9553 | NUT - captive | 1 | ||
| 32 | 61-3509 | TUBE - discharge | 2 | |
| 33 | 61-413 | VALVE - check | 2 | |
| 34 | 61-2106 | TUBE - discharge | 1 | |
| 35 | 61-2107 | TUBE - discharge | 1 | |
| 36 | 61-2108 | TUBE - gas to eliminator | 1 | |
| 37 | 91-2473 | CLAMP - tube | 6 | |
| 305-1652 | SCREW - clamp | 6 | ||
| 55-9553 | NUT - captive | 4 | ||
| 38 | 92-2233 | BRACKET - tube | 1 | |
| 55-9553 | NUT - captive | 2 | ||
| 55-6994 | SCREW - bracket | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 39 | 306-1397 | ELIMINATOR - vibration (discharge) | 1 | |
| 40 | 61-1509 | TUBE - eliminator to condenser | 1 | |
| 61-549 | FITTING - saddle | 1 | ||
| 41 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - valve | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 42 | 92-1410 | BOX - junction, compressor | 2 | |
| 55-3027 | SCREW - box | 4 | ||
| 55-3008 | WASHER - sealing | 4 | ||
| 55-4526 | CAGENUT | 4 | ||
| 43 | 91-9955 | COVER - junction box | 2 | |
| 55-9349 | SCREW - cover | 8 | ||
| 55-7861 | LOCKWASHER | 8 | ||
| 55-7697 | FLATWASHER | 8 | ||
| 55-7866 | NUT - captive | 8 | ||
| 44 | 33-3173 | GASKET - sealing | 2 | |
| 45 | 51-138 | BUSHING - cable | 2 | |
| 55-9999 | LOCKNUT | 2 | ||
| 46 | 92-2824 | BRACKET - compressor | 1 | |
| 47 | 92-2825 | BAND - bracket | 1 | |
| 48 | 92-2881 | BAND - bracket | 1 | |
| 49 | 92-2826 | BAND - bracket | 2 | |
| 55-6993 | SCREW - band | 4 | ||
| 55-8836 | WASHER - square | 8 | ||
| 55-6988 | FLATWASHER | 4 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 55-7825 | NUT | 4 | ||
| 50 | 91-7846 | NAMEPLATE - R407C | 1 |
