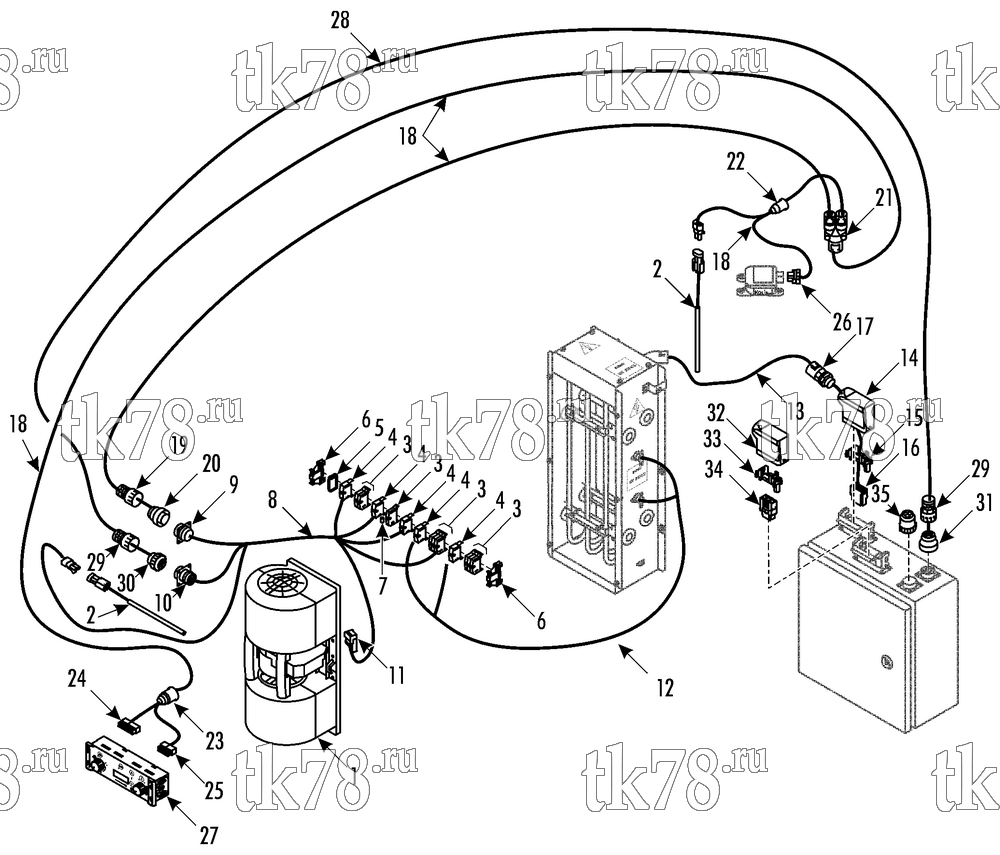

Установкa Thermo King схема ELECTRICAL COMPONENTS (FRONT BOX) – 218G0
Обновление от: 12/15/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1552 | BLOWER | 1 | |
| 2 | 41-4335 | SENSOR - temperature | 2 | |
| 3 | 41-7723 | TERMINAL - wago | 9 | |
| 4 | 41-5978 | TERMINAL - wago, double | 5 | |
| 5 | 41-3894 | PLATE - end, wago | 1 | |
| 6 | 91-6465 | CLAMP - rail | 2 | |
| 7 | 44-5763 | DIODE | 1 | |
| 8 | 41-7724 | WIRES - front box (for connectors see 115D14) | 1 | |
| 9 | 44-8783 | RECEPTACLE | 1 | |
| 10 | 304-2642 | RECEPTACLE | 1 | |
| 11 | 41-2767 | CONNECTOR - female | 1 | |
| 55-7863 | SCREW - receptacles | 8 | ||
| 55-7750 | LOCKWASHER | 8 | ||
| 55-7749 | NUT | 8 | ||
| 12 | 41-7725 | WIRES - heater temperature sensors | 1 | |
| 13 | 41-7726 | WIRES - heater supply | 1 | |
| 14 | 41-7727 | HOUSING - power connector | 1 | |
| 15 | 41-5928 | FRAME - fixing | 1 | |
| 16 | 41-7516 | CONNECTOR - male | 1 | |
| 17 | 51-112 | BUSHING | 1 | |
| 41-5620 | CONDUIT | A/R | ||
| 18 | 41-7728 | HARNESS - driver panel (for connectors see 115D14) | 1 | |
| 19 | 41-7729 | CONNECTOR - straight | 1 | |
| 20 | 41-743 | PLUG | 1 | |
| 21 | 41-5497 | COUPLER - 3 way | 1 | |
| 22 | 41-7730 | SPOUT - transitional | 1 | |
| 23 | 41-7731 | SPOUT - transitional | 1 | |
| 24 | 41-650 | CONNECTOR - 18 term | 1 | |
| 25 | 41-661 | CONNECTOR - 14 term | 1 | |
| 26 | 41-2768 | CONNECTOR - female | 1 | |
| 41-5620 | CONDUIT | A/R | ||
| 41-7512 | CONDUIT | A/R | ||
| 27 | 45-2203 | FrontAIRE II (see 218H1) | 1 | |
| 28 | 41-7732 | HARNESS - LV XLV2-XVL3 | 1 | |
| 29 | 41-7729 | CONNECTOR - straight | 2 | |
| 30 | 44-8537 | PLUG | 1 | |
| 31 | 41-743 | PLUG | 1 | |
| 32 | 41-7727 | HOUSING - power connector | 1 | |
| 33 | 41-5928 | FRAME - fixing | 1 | |
| 34 | 41-5524 | CONNECTOR - female | 1 | |
| 41-7733 | PIN - connector (2.5 mm) | 4 | ||
| 41-7145 | PIN - connector (4 mm) | 4 | ||
| 35 | 44-8318 | PLUG | 1 | |
| 41-7734 | RECEPTACLE | 3 |
