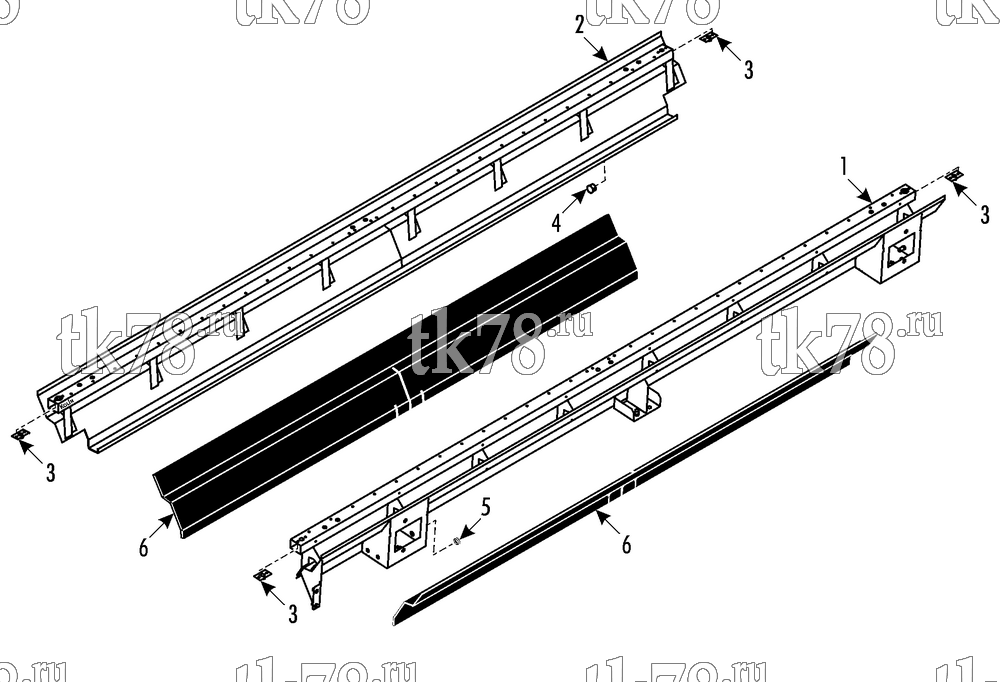

Установкa Thermo King схема AIR INTAKE - NARROW w/o FA DAMPER (007373) – 218D0
Обновление от: 11/28/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7735 | BASE - air intake | 1 | |
| 2 | 98-7736 | BASE - air intake | 1 | |
| 55-8645 | NUT - captive, cover hinge (M5) | 12 | ||
| 55-7373 | NUT - captive, evaporator base to base (M6) | 10 | ||
| 55-9814 | NUT - captive, closed (M6) | 8 | ||
| 55-8403 | NUT - captive, unit to bus roof (M8) | 6 | ||
| 3 | 92-4030 | BRACKET - lifting eye | 4 | |
| 55-5130 | RIVET - bracket | 8 | ||
| 4 | 55-9574 | PLUG | 1 | |
| 5 | 33-1055 | GROMMET (0.375 id) | 1 | |
| 6 | 92-4038 | INSULATION | 2 |
