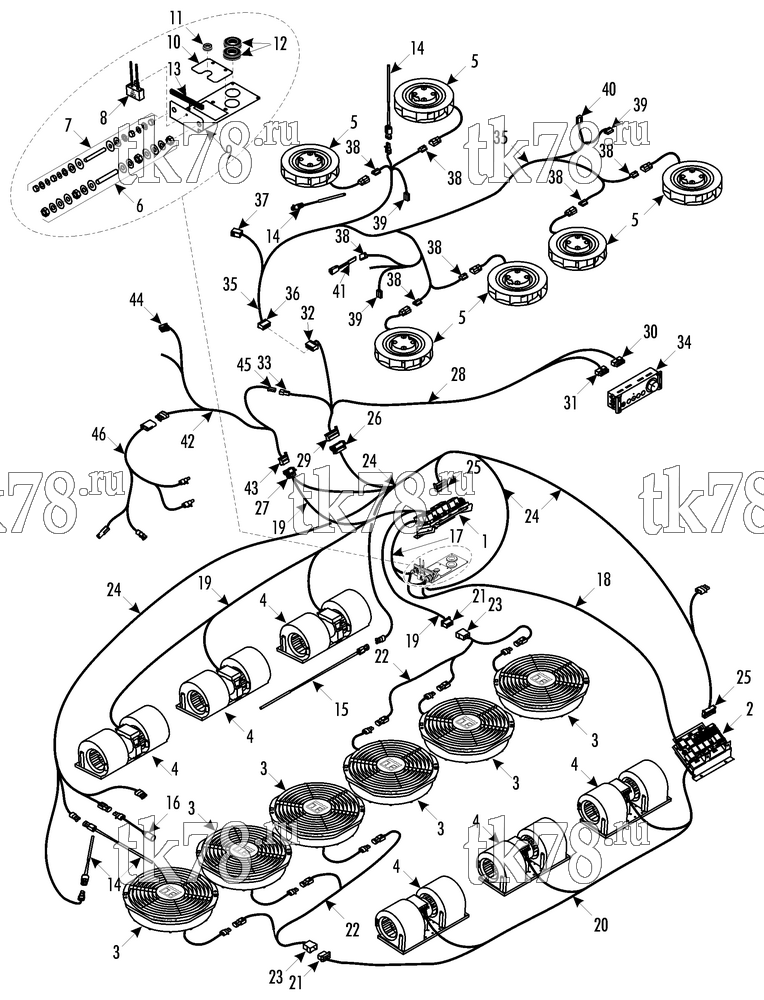

Установкa Thermo King схема ELECTRICAL COMPONENTS – 218C3
Обновление от: 12/14/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER - left (see 195A5) | 1 | |
| 2 | NSS | CONTROLLER - right (see 195A6) | 1 | |
| 3 | 78-1414 | FAN (see 195A2) | 6 | |
| 4 | 78-1297 | BLOWER (see 218B0) | 6 | |
| 5 | 78-1212 | BLOWER (see 175B9 & 175C2) | 6 | |
| 44-8938 | CONNECTOR (male, 3-pin) | 6 | ||
| 6 | 55-9191 | STUD - negative (M10) | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 7 | 55-9367 | STUD - positive (M8) | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 8 | 41-6098 | SUPPRESSOR - voltage | 1 | |
| 51-888 | STUD - self-clinching | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 9 | 92-6088 | PLATE - electric connection | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 10 | 92-6089 | COVER - plate | 1 | |
| 55-7664 | SCREW - cover | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 11 | 33-428 | GROMMET (0.50 id) | 1 | |
| 12 | 33-452 | GROMMET (0.875 id) | 2 | |
| 13 | 92-3279 | STRIP - flange | A/R | |
| 14 | 41-4157 | SENSOR - temperature | 4 | |
| 15 | 41-4335 | SENSOR - temperature | 1 | |
| 16 | 41-5220 | SWITCH - hpco (see 218C1) | 1 | |
| 17 | 41-6101 | HARNESS - supply, left | 1 | |
| 18 | 41-6102 | HARNESS - supply, right | 1 | |
| 19 | 41-6195 | HARNESS - control panel, left | 1 | |
| 20 | 41-6196 | HARNESS - control panel, right | 1 | |
| 21 | 41-3862 | CONNECTOR (6-pin) | 2 | |
| 22 | 41-6197 | HARNESS - condenser (for connectors see 115D14) | 2 | |
| 23 | 41-3967 | CONNECTOR (6-pin) | 2 | |
| 24 | 41-7659 | HARNESS - control (for connectors see 115D14) | 1 | |
| 25 | 41-3856 | CONNECTOR (female, 18-pin) | 2 | |
| 26 | 41-2772 | CONNECTOR (male, 18-pin) | 1 | |
| 27 | 41-4054 | CONNECTOR (male, 10-pin) | 1 | |
| 41-3968 | BOARD - pc | 1 | ||
| 44-3228 | DIODE - rectifier | 1 | ||
| 28 | 41-7660 | HARNESS - unit to ClimaAIRE II | 1 | |
| 29 | 41-3856 | CONNECTOR (female, 18-pin) | 1 | |
| 30 | 41-650 | CONNECTOR - in-line (18-pin) | 1 | |
| 31 | 41-661 | CONNECTOR - in-line (14-pin) | 1 | |
| 32 | 41-5828 | CONNECTOR (8-pin) | 1 | |
| 33 | 44-6264 | CONNECTOR (1-pin) | 1 | |
| 41-3968 | BOARD - pc | 1 | ||
| 41-7307 | RESISTOR (221 kOhm) | 1 | ||
| 34 | 41-4658 | ClimaAIRE II (see 184F9) | 1 | |
| 35 | 41-7661 | HARNESS - evaporators (for connectors see 115D14) | 1 | |
| 36 | 41-5828 | CONNECTOR (8-pin) | 1 | |
| 37 | 41-7662 | CONNETOR (4-pin) | 1 | |
| 38 | 44-6248 | CONNECTOR (female, 3-pin) | 7 | |
| 39 | 41-4886 | CONNECTOR (male, 2-pin) | 3 | |
| 40 | 41-2891 | CONNECTOR (male, 2 terminal) | 1 | |
| 41 | 41-4869 | ADAPTER - pwm/dc | 1 | |
| 44-8938 | CONNECTOR (male, 3-pin) | 1 | ||
| 42 | 41-7663 | HARNESS - control panel to compressor (for connectors see 115D14) | 1 | |
| 43 | 41-3855 | CONNECTOR (female, 10-pin) | 1 | |
| 44 | 41-7664 | CONNECTOR | 1 | |
| 45 | 44-6381 | CONNECTOR (female, 1-pin) | 1 | |
| 44-5537 | SOCKET - relay | 1 | ||
| 41-5657 | RELAY | 1 | ||
| 44-3228 | DIODE - rectifier | 1 | ||
| 46 | 41-6042 | HARNESS - compressor (for connectors see 115D14) | 1 |
