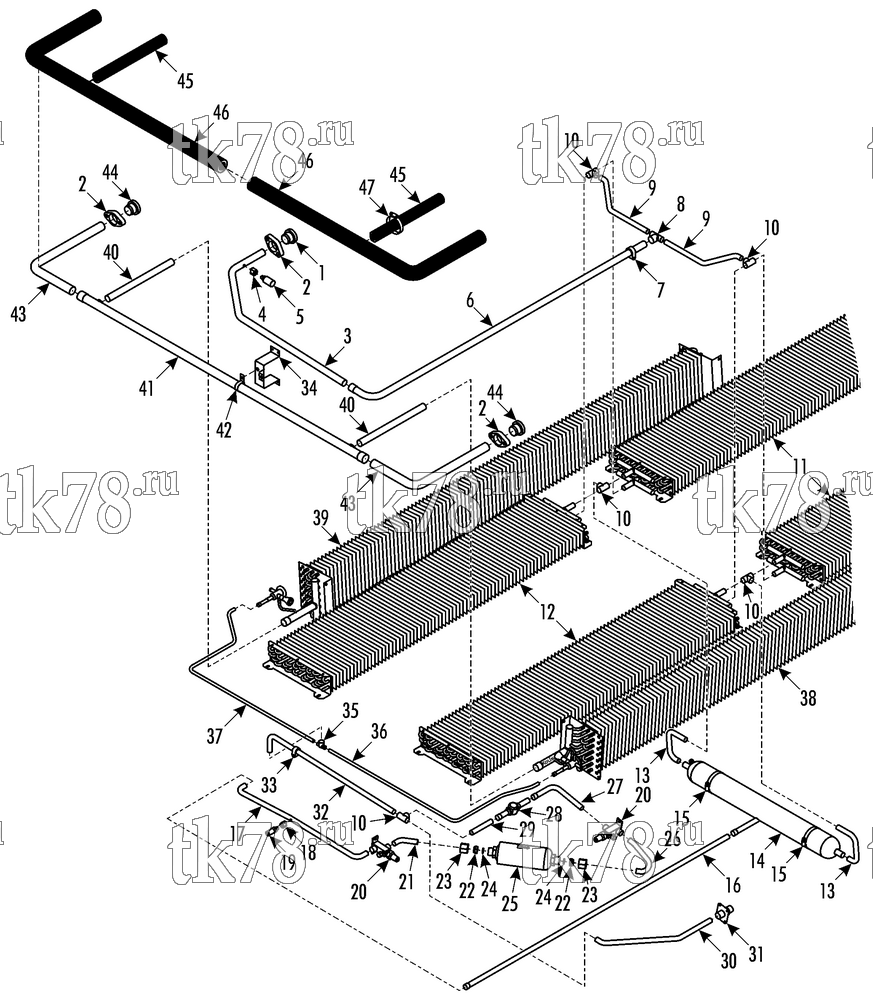

Установкa Thermo King схема TUBE COOLING – 218C1
Обновление от: 12/14/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-9369 | ADAPTER - inlet | 1 | |
| 2 | 55-9186 | FLANGE | 3 | |
| 55-5427 | SCREW - flange | 6 | ||
| 3 | 61-3889 | TUBE | 1 | |
| 4 | 66-4553 | FITTING - saddle | 1 | |
| 5 | 41-5220 | SWITCH - hpco | 1 | |
| 6 | 61-2761 | TUBE | 1 | |
| 7 | 55-7013 | CLAMP - tube | 1 | |
| 55-7027 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 8 | 55-9229 | TEE (5/8 x 5/8 x 7/8) | 1 | |
| 9 | 61-2762 | TUBE | 2 | |
| 10 | 55-904 | TEE (5/8 x 5/8 x 5/8) | 5 | |
| 11 | NSS | CONDENSER - standard (see 194G2) | 1 | |
| 12 | NSS | CONDENSER - added (see 194G3) | 1 | |
| 13 | 61-2763 | TUBE | 2 | |
| 14 | 67-2026 | TANK - receiver | 1 | |
| 15 | 55-2688 | CLAMP - tank | 2 | |
| 16 | 61-2764 | TUBE | 1 | |
| 17 | 61-2765 | TUBE | 1 | |
| 18 | 99-3060 | FITTING - saddle | 1 | |
| 19 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 20 | 66-2104 | VALVE - shut-off | 2 | |
| 55-6994 | SCREW - valve | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 21 | 61-2766 | TUBE | 1 | |
| 22 | 55-6356 | SHOULDER | 2 | |
| 23 | 55-6396 | NUT - shoulder | 2 | |
| 24 | 33-672 | O-RING | 2 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 25 | 66-9352 | FILTER - drier | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 26 | 61-2767 | TUBE | 1 | |
| 27 | 61-2768 | TUBE | 1 | |
| 28 | 66-9856 | INDICATOR - liquid | 1 | |
| 29 | 61-3890 | TUBE | 1 | |
| 30 | 61-3891 | TUBE | 1 | |
| 31 | 61-3892 | FITTING - assembly | 1 | |
| 55-5130 | RIVET - fitting | 4 | ||
| 32 | 61-3893 | TUBE | 1 | |
| 33 | 91-758 | CLAMP - tube | 1 | |
| 55-8316 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 34 | 92-4017 | HOLDER - tube | 1 | |
| 55-5130 | RIVET - holder | 4 | ||
| 35 | 55-7142 | TEE (3/8 x 3/8 x 5/8) | 1 | |
| 36 | 61-2771 | TUBE | 1 | |
| 37 | 61-2772 | TUBE | 1 | |
| 38 | 67-2281 | COIL - evaporator/heater, curbside (see 218C2) | 1 | |
| 39 | 67-2282 | COIL - evaporator/heater, roadside (see 218C2) | 1 | |
| 40 | 61-2773 | TUBE | 2 | |
| 41 | 61-3894 | TUBE | 1 | |
| 42 | 55-7504 | CLAMP - tube | 1 | |
| 55-7172 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 43 | 61-3895 | TUBE | 2 | |
| 44 | 55-9370 | ADAPTER - outlet | 2 | |
| 45 | 91-3542 | TUBE - rubber | A/R | |
| 46 | 92-2015 | TUBE - rubber | A/R | |
| 47 | 55-4979 | CLAMP - tube | 1 |
