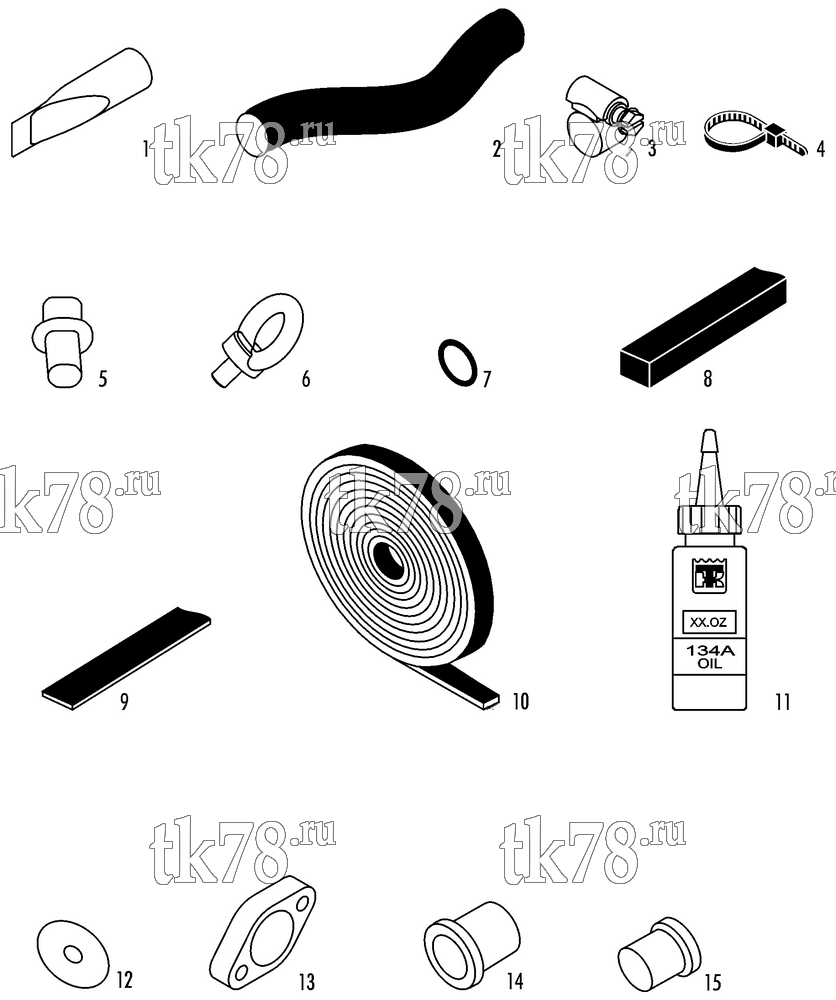

Установкa Thermo King схема INSTALLATION COMPONENTS – 218B5
Обновление от: 11/28/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-1273 | VALVE - check | 4 | |
| 2 | 91-9006 | HOSE (#16) | A/R | |
| 3 | 55-6726 | CLAMP | 6 | |
| 4 | 55-2330 | BANDWRAP (1.75 dia) | A/R | |
| 5 | 55-9544 | ADAPTER | 1 | |
| 6 | 51-916 | BOLT - lifting | 4 | |
| 7 | 33-3191 | GASKET - flat | 4 | |
| 8 | 33-4350 | GASKET - sealing | A/R | |
| 9 | 92-4040 | INSULATION - strip (154 x 2020 mm) | 2 | |
| 10 | 203-391 | SEALER - tape | A/R | |
| 11 | 203-505 | OIL - bottle (2 oz) | 1 | |
| 12 | 51-1137 | WASHER | 14 | |
| 13 | 55-9371 | FLANGE | 2 | |
| 14 | 55-9184 | ADAPTER (1-1/8 in) | 1 | |
| 15 | 55-9185 | ADAPTER (7/8 in) | 1 |
