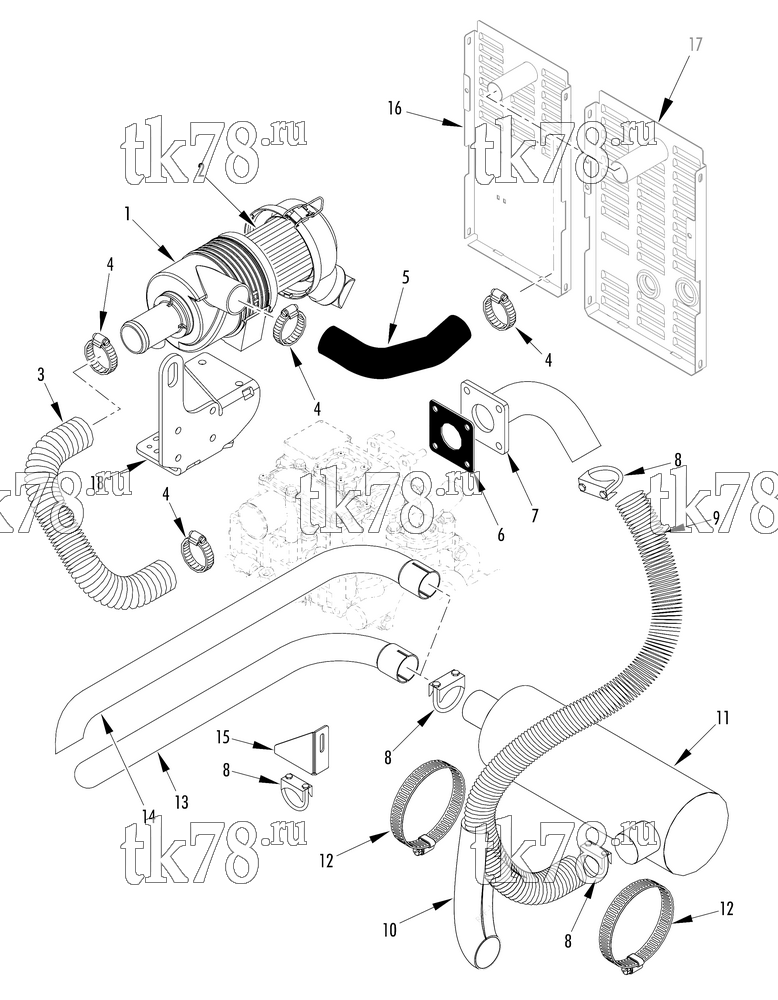

Установкa Thermo King схема AIR CLEANER & MUFFLER (5/05 & after) – 217G4
Обновление от: 5/29/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-820 | AIR FILTER | 1 | |
| 2 | 11-9059 | ELEMENT - filter | 1 | |
|
US-11-9059 | Фильтр воздушный, MD/T-Series | 2 410 ₽ |
|
|
10-11-9059 | Фильтр воздушный, MD/T-Series | 740 ₽ |
|
| 55-5022 | SCREW - air filter | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 3 | 13-651 | HOSE - air | 1 | |
| 4 | 55-2684 | CLAMP - hose (1.000-2.000 dia) | 2 | |
| 55-3991 | CLAMP - hose (1.562-2.500 dia) | 2 | ||
| 5 | 13-884 | HOSE - panel to air cleaner (molded rubber) | 1 | |
| 6 | 33-4189 | GASKET - exhaust | 1 | |
| 7 | 13-463 | TUBE - exhaust | 1 | |
| 55-4621 | NUT - exhaust tube | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-4613 | FLATWASHER | 4 | ||
| 8 | 99-496 | CLAMP - exhaust | 4 | |
| 9 | 12-442 | HOSE - exhaust (25 ft, cut to 24 inch) | A/R | |
| 10 | 13-730 | SLEEVING - exhaust hose | 1 | |
| 11 | 12-913 | MUFFLER | 1 | |
| 12-913 | MUFFLER (stainless steel) | 1 | ||
| 12 | 55-7800 | CLAMP - muffler | 2 | |
| 13 | 13-490 | PIPE - tail (curbside, black) | 1 | |
| 13-891 | PIPE - tail (curbside, chrome) | 1 | ||
| 14 | 13-661 | PIPE - tail (roadside, black) | 1 | |
| 13-892 | PIPE - tail (roadside, chrome) | 1 | ||
| 15 | 92-5690 | BRACKET - tail pipe | 1 | |
| 92-7205 | BRACKET - tail pipe (ss) | 1 | ||
| 16 | 98-7583 | PANEL - rear (before 1/08) | 1 | |
| 17 | 92-8520 | PANEL - rear (1/08 & after) | 1 | |
| 55-2957 | SCREW - panel | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 18 | 13-840 | BRACKET - air filter | 1 | |
| 55-5424 | SCREW - bracket | 4 | ||
| 55-4613 | FLATWASHER | 4 | ||
| 55-790 | LOCKWASHER | 4 |
