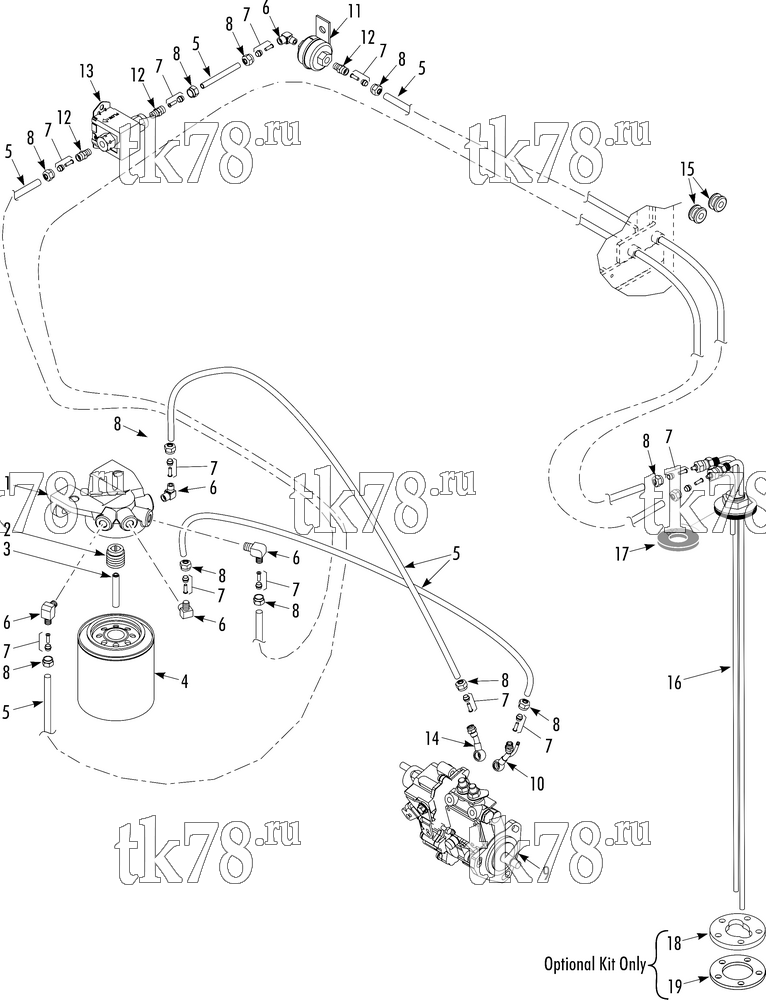

Установкa Thermo King схема FUEL FILTER GROUP (TIER 2 ENGINE, NYLON FUEL LINES) – 217G3
Обновление от: 7/6/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9015 | HEAD - filter | 1 | |
| 55-129 | SCREW - head | 2 | ||
| 55-402 | FLATWASHER | 4 | ||
| 55-5078 | NUT | 2 | ||
| 2 | 11-9017 | SPUD - filter | 1 | |
| 3 | 11-9016 | SHAFT - water bleed | 1 | |
| 203-393 | SEALER - thread | A/R | ||
| 4 | 11-9342 | FILTER - fuel | 1 | |
|
US-11-9342 | Фильтр топливный, SL/SLe/SLX/SLXe | 1 610 ₽ |
|
|
10-11-9342 | Фильтр топливный, SL/SLe/SLX/SLXe | 590 ₽ |
|
|
PP-11-9342 | Фильтр топливный, SLX/SLXe | 350 ₽ |
|
|
11-9342 OEM | Фильтр топливный EMI 3000, SL/SLe/SLX/SLXe | по запросу |
|
| 5 | 11-9030 | HOSE - fuel (1/4 od x 35 ft lg) | A/R | |
| 6 | 11-5320 | ELBOW - hose (1/4) | 5 | |
| 7 | 10-243 | KIT - sleeve & eyelet (1/4) | A/R | |
| 8 | 11-4841 | NUT (1/4) | A/R | |
| 9 | 13-471 | PUMP - fuel injection (see 209A8) | 1 | |
| 10 | 13-317 | JOINT - fuel (nylon fuel lines, see 209A8) | 1 | |
| 11 | 13-864 | FILTER - fuel | 1 | |
|
10-13-864 | Топливный фильтр, Tripac | 3 660 ₽ |
|
| 12 | 11-6837 | FITTING - hose (straight, 1/4) | 3 | |
| 13 | 42-989 | PUMP - fuel (12V) | 1 | |
| 14 | 11-8979 | JOINT - fuel (nylon fuel lines, see 209A8) | 1 | |
| 15 | 33-3135 | GROMMET - fuel lines | 2 | |
| 16 | 13-839 | TUBE - fuel pick-up | 1 | |
| 17 | 33-4402 | GASKET - fuel pickup (rubber) | 1 | |
| 18 | 10-379 | KIT - fuel tank access cover | 1 | |
| 19 | 33-4263 | GASKET - cover (cork) | 1 |
