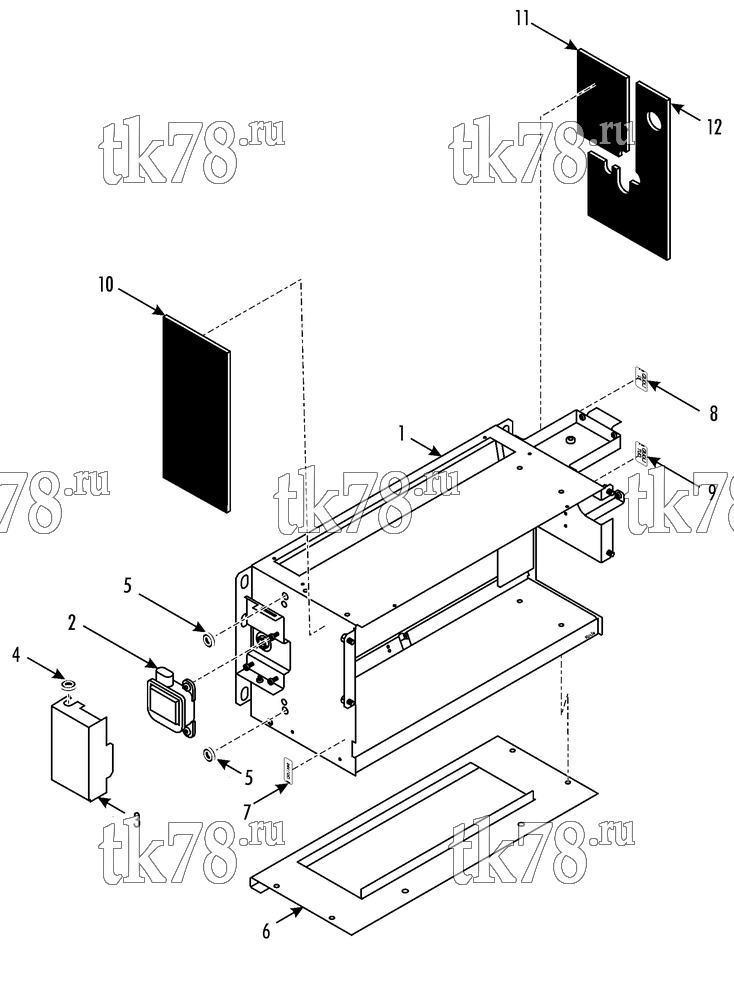

Установкa Thermo King схема FRAME MODULE – 216C1
Обновление от: 9/22/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7657 | BASE | 1 | |
| 92-3794 | STRIP - neoprene | A/R | ||
| 51-1452 | NUT - self clinch (M4) | 4 | ||
| 51-1611 | NUT - self clinch (M6) | 2 | ||
| 92-5226 | BEARING - plastic | 2 | ||
| 51-256 | RIVET | 5 | ||
| 51-261 | PLUG - plastic | 1 | ||
| 55-7752 | SCREW - base | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 2 | 41-3255 | SERVOMOTOR (24VDC) | 1 | |
| 55-7664 | SCREW - servomotor | 3 | ||
| 55-7369 | LOCKWASHER | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 3 | 92-3779 | COVER - motor | 1 | |
| 55-7663 | SCREW - cover | 1 | ||
| 55-7369 | LOCKWASHER | 1 | ||
| 55-7368 | FLATWASHER | 1 | ||
| 4 | 33-314 | GROMMET (0.312 id) | 1 | |
| 5 | 33-1013 | GROMMET (0.281 id) | 2 | |
| 6 | 92-6009 | COVER - filter | 1 | |
| 55-7862 | SCREW - cover | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 7 | 91-7543 | NAMEPLATE - 24VDC | 1 | |
| 8 | 91-7703 | NAMEPLATE - Liquid In | 1 | |
| 9 | 91-7550 | NAMEPLATE - Liquid Out | 1 | |
| 10 | 92-6010 | INSULATION | 1 | |
| 11 | 92-6011 | INSULATION | 1 | |
| 12 | 92-6012 | INSULATION | 1 |
