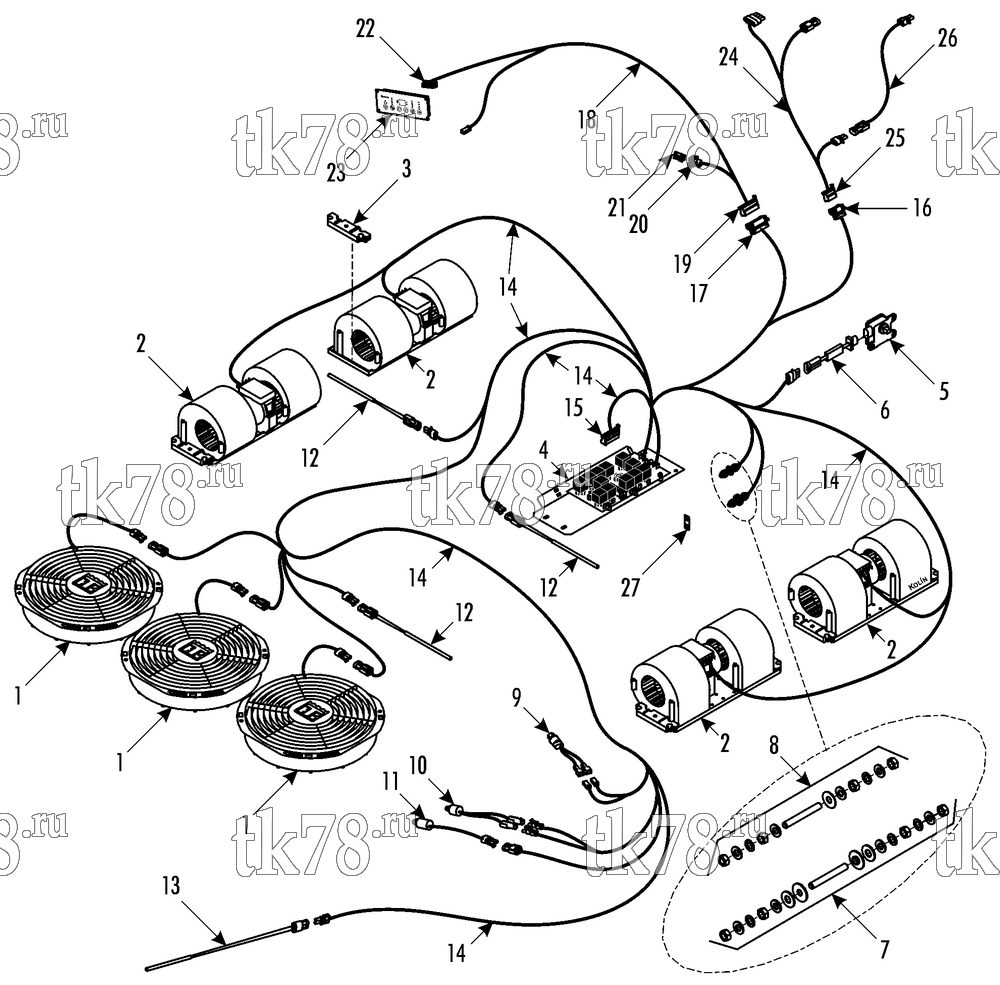

Установкa Thermo King схема ELECTRICAL COMPONENTS (ClimaAIRE I D) – 216A5
Обновление от: 9/25/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1414 | FAN (see 215H8) | 3 | |
| 2 | 78-1297 | BLOWER | 4 | |
| 3 | 51-259 | HOLDER - blower | 8 | |
| 55-7372 | SCREW - holder | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 51-290 | NUT - captive | 8 | ||
| 4 | NSS | CONTROL PANEL (see 216A6) | 1 | |
| 6 | 41-3255 | SERVOMOTOR (units w/ fresh air) | 1 | |
| 6 | 41-7190 | CONTROLLER - servomotor (units w/ fresh air) | 1 | |
| 7 | 55-9367 | STUD - positive (M8) | 1 | |
| 305-1653 | NUT | 4 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8693 | WASHER - nylon | 1 | ||
| 55-8631 | WASHER - nylon | 1 | ||
| 8 | 55-9367 | STUD - negative (M8) | 1 | |
| 305-1653 | NUT | 4 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 2 | ||
| 55-8568 | LOCKWASHER | 1 | ||
| 9 | 41-4309 | SWITCH - lpco | 1 | |
| 10 | 41-1501 | SWITCH - hpco | 1 | |
| 11 | 41-5220 | SWITCH - pressure | 1 | |
| 12 | 41-4157 | SENSOR - temperature | 3 | |
| 13 | 41-4335 | SENSOR - temperature | 1 | |
| 14 | 41-7607 | HARNESS - SR-700 (for connectors see 115D14) | 1 | |
| 15 | 41-3856 | CONNECTOR (female, 18-pin) | 1 | |
| 16 | 41-4054 | CONNECTOR (male, 10-pin) | 1 | |
| 17 | 41-2772 | CONNECTOR (male, 18-pin) | 1 | |
| 44-3228 | DIODE - rectifier | 1 | ||
| 18 | 41-7316 | HARNESS - control panel to ClimaAIRE I D (18 m, for connectors see 115D14) | 1 | |
| 41-7317 | HARNESS - control panel to ClimaAIRE I D (16 m, for connectors see 115D14) | 1 | ||
| 41-7318 | HARNESS - control panel to ClimaAIRE I D (14 m, for connectors see 115D14) | 1 | ||
| 41-7319 | HARNESS - control panel to ClimaAIRE I D (12 m, for connectors see 115D14) | 1 | ||
| 41-7320 | HARNESS - control panel to ClimaAIRE I D (10 m, for connectors see 115D14) | 1 | ||
| 41-7321 | HARNESS - control panel to ClimaAIRE I D (8 m, for connectors see 115D14) | 1 | ||
| 41-7322 | HARNESS - control panel to ClimaAIRE I D (6 m, for connectors see 115D14) | 1 | ||
| 19 | 41-3856 | CONNECTOR (female, 18-pin) | 1 | |
| 20 | 41-4949 | CONNECTOR (male, 14-pin) | 1 | |
| 21 | 41-2769 | CONNECTOR (female, 4-pin) | 1 | |
| 22 | 41-661 | CONNECTOR - in-line (14-pin) | 1 | |
| 23 | 41-7211 | ClimaAIRE I D - driver panel | 1 | |
| 24 | 41-5318 | HARNESS - compressor (X430 or FKX, 20 m, w/ excitation, for connectors see 115D14) | 1 | |
| 41-5316 | HARNESS - compressor (X430 or FKX, 16 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-4912 | HARNESS - compressor (X430 or FKX, 12 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-4513 | HARNESS - compressor (X430 or FKX, 8.3 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-7608 | HARNESS - compressor (X430 or FKX, 20 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7609 | HARNESS - compressor (X430 or FKX, 16 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7610 | HARNESS - compressor (X430 or FKX, 12 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7229 | HARNESS - compressor (X430 or FKX, 8.3 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-6777 | HARNESS - compressor (TM31, 18 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-6776 | HARNESS - compressor (TM31, 14 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-6775 | HARNESS - compressor (TM31, 12 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-6774 | HARNESS - compressor (TM31, 8 m, w/ excitation, for connectors see 115D14) | 1 | ||
| 41-7611 | HARNESS - compressor (TM31, 18 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7612 | HARNESS - compressor (TM31, 14 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7613 | HARNESS - compressor (TM31, 12 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 41-7614 | HARNESS - compressor (TM31, 8 m, w/o excitation, for connectors see 115D14) | 1 | ||
| 25 | 41-3855 | CONNECTOR (female, 10-pin) | 1 | |
| 44-3228 | DIODE - rectifier (units w/ compressor X430 or FKX) | 1 | ||
| 26 | 41-4143 | HARNESS - boost pump (14 m, units w/ heater, for connectors see 115D14) | 1 | |
| 41-4144 | HARNESS - boost pump (9 m, units w/ heater, for connectors see 115D14) | 1 | ||
| 41-6152 | HARNESS - boost pump (7.6 m, units w/ heater, for connectors see 115D14) | 1 | ||
| 27 | 91-7509 | NAMEPLATE - Positive/Negative | 1 |
