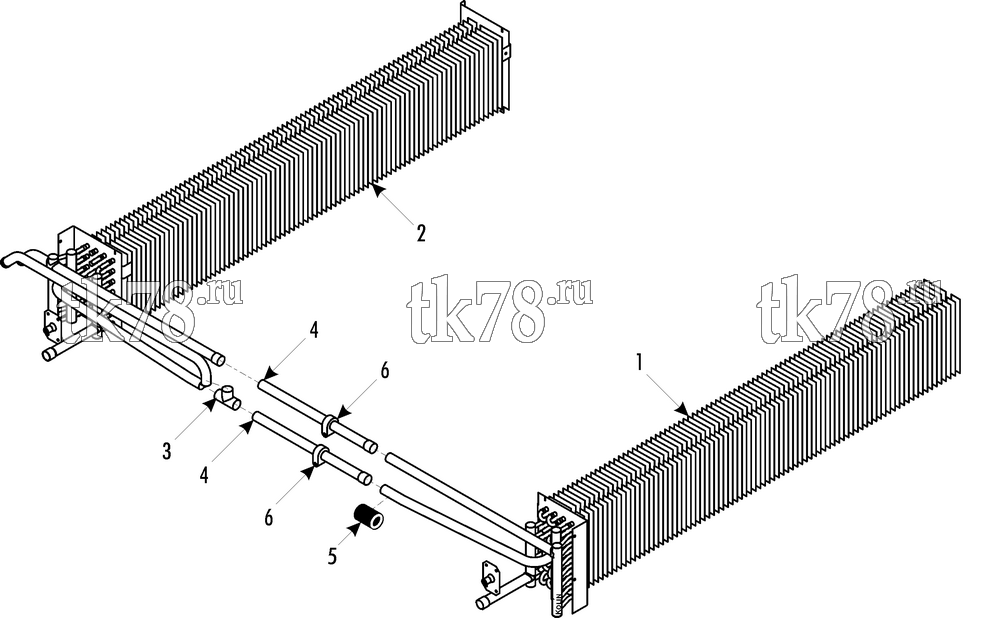

Установкa Thermo King схема HEATING TUBE – 216A2
Обновление от: 10/23/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2260 | COIL - evaporator (unit w/ heater) | 1 | |
| 2 | 67-2261 | COIL - evaporator (unit w/ heater) | 1 | |
| 3 | 55-5401 | TEE (3/4 x 3/4 x 3/4) | 1 | |
| 4 | 61-3812 | TUBE | 2 | |
| 5 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R | |
| 6 | 91-372 | CLAMP - tube | 2 | |
| 55-8993 | SCREW - clamp | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 51-290 | NUT - captive | 2 |
