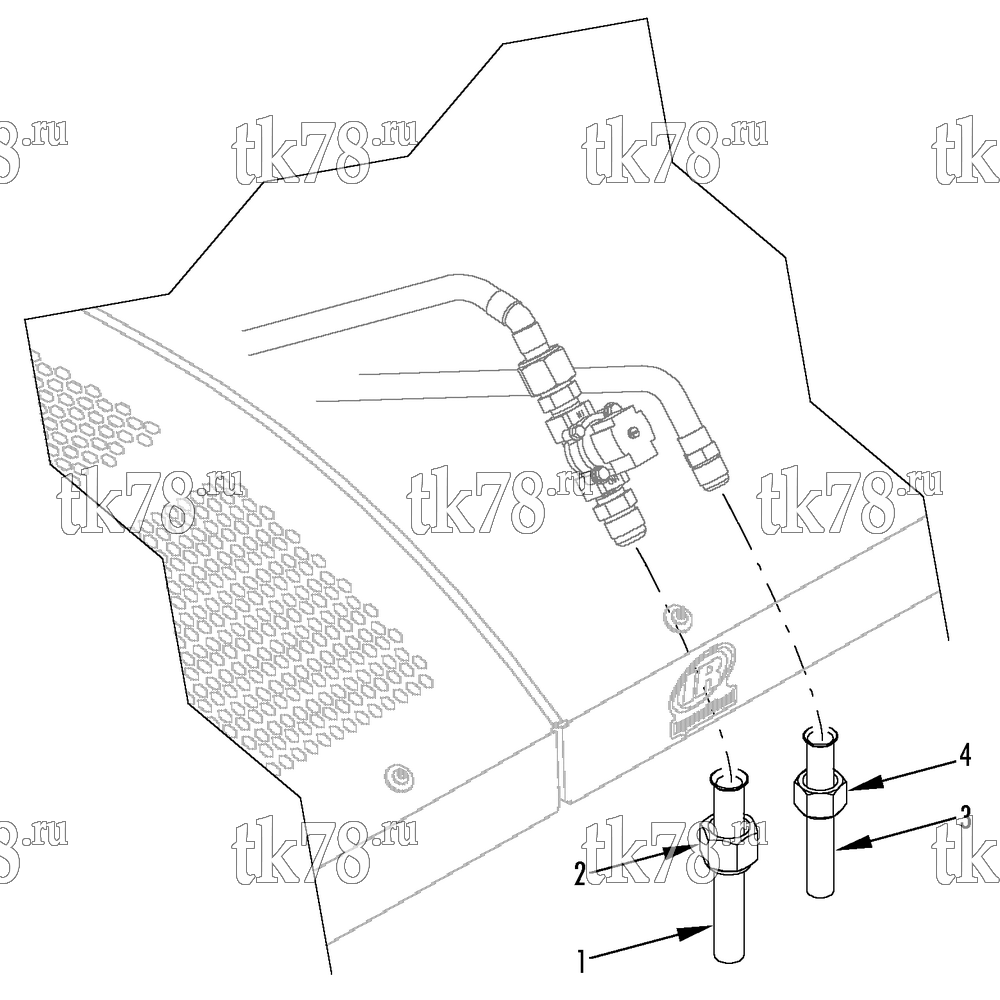

Установкa Thermo King схема WATER TUBES – 214E2
Обновление от: 5/19/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-3631 | TUBE - water inlet | 1 | |
| 2 | 55-2785 | NUT - flare | ||
| 55-5740 | NUT - bulkhead (#16) | 1 | ||
| 3 | 61-3632 | TUBE - water outlet | 1 | |
| 4 | 55-9951 | NUT - flare | 1 | |
| 55-5739 | NUT - bulkhead (#20) | 1 | ||
| 55-3326 | ELBOW (7/8) | 3 | ||
| 55-3680 | COUPLING (7/8) | 1 |
